2.5.4 PCI Express X16 Add-on Slots

These slots support the connections of graphics cards that comply with PCI Express
specifications. This motherboard provides dual PCI-Express X16 slots for one or two graphics
cards installation:

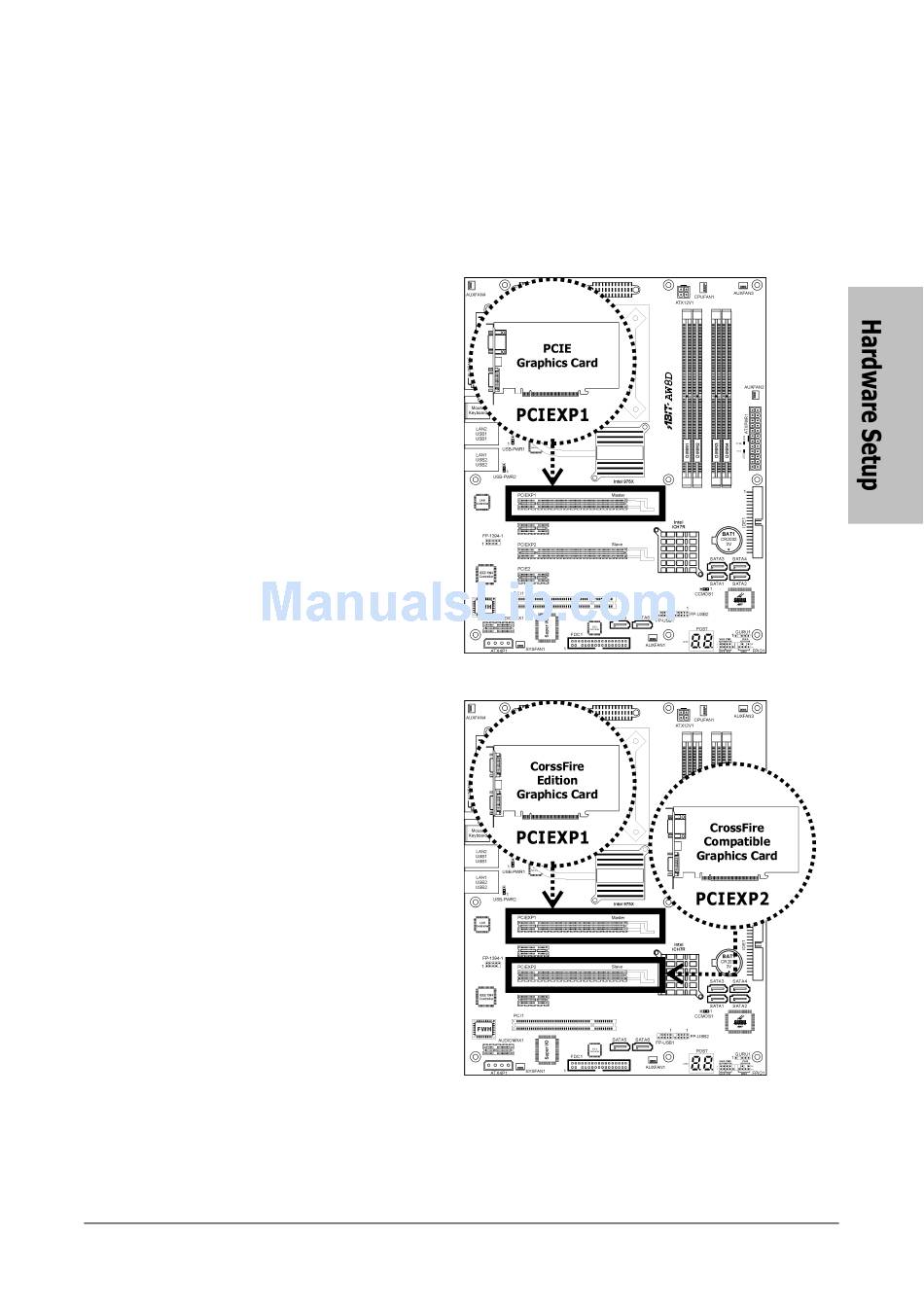

One PCIE graphics card installation (Normal Mode):
Install one PCIE graphics card into [Master]
slot (the PCIEXP1 slot on this motherboard).
Two PCIE graphics cards installation (CrossFire Mode):
™
Install one CrossFire
into [Master] slot (the PCIEXP1 slot on this
motherboard), and one CrossFire
graphics card into [Slave] slot (the PCIEXP2
slot on this motherboard).
※ The
ATI CrossFire
currently supports
Windows XP with Service Pack 2
only.
AW8D
Edition graphics card
™
Compatible
™
technology
the Microsoft
2-15
