Green Storage WB Range
Installation & Maintenance Instructions
WIRING DIAGRAMS
SOLAR HIGH LIMIT CONTROL

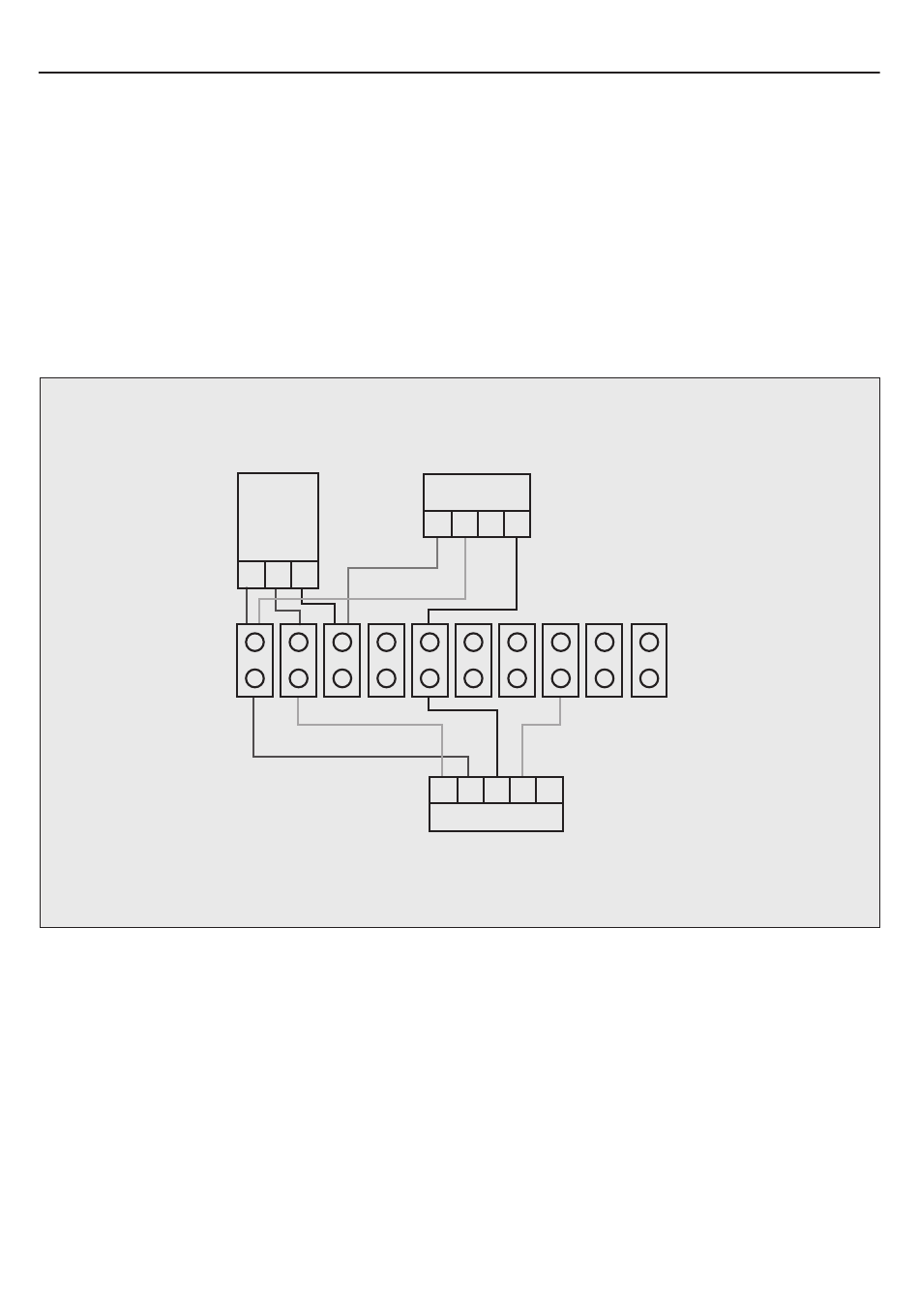

These schematic wiring diagrams depict an IMIT high limit control stat and the
connections are numbered accordingly. Where an alternative is supplied, connect as
per manufacturer's instructions.
14
(CONTINUED)
Main Supply
double pole
fused spur
230/220
3amp
L
N
E
1
2
3
4
High Limit
Control
E
C
1
2
5
6
7
8
BL
G
Br
O G/Y
Zone Vale
9
10
