USE AND CARE GUIDE

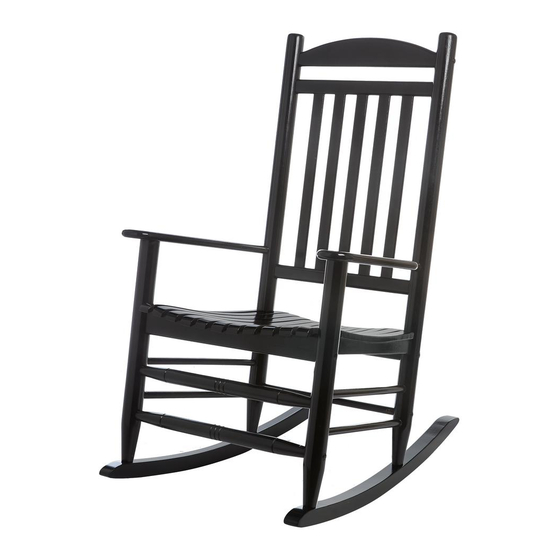

ROCKING CHAIR
Questions, problem, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY 2.1.1200
Summary of Contents for HAMPTON BAY 2.1.1200
- Page 1 Model # 2.1.1200 USE AND CARE GUIDE ROCKING CHAIR Questions, problem, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM HAMPTONBAY.COM...
-
Page 2: Table Of Contents
Table of Contents Table of Contents..........Safety Information.......... Warranty............Pre-Assembly..........Tools Required..........Hardware Included..........Package Contents..........Assembly ............. Safety Information Examine all packing material before assembling; shortages may occur from parts left in the packing material. Please follow the instructions on the following pages. Warranty WHAT IS COVERED All merchandise is warranted to be free from defects in workmanship and material for one year from the date of purchase. -
Page 3: Pre-Assembly
Pre-Assembly TOOLS REQUIRED Rubber mallet, To fit the part ( if needed ) HARDWARE INCLUDED Description Quantity Part ø BOLT 12,7/1/4” x 45 MM 14+1 WOODEN PLUG 10+1 ALLEN KEY GLUE HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Description Quantity Part Left side frame Right side frame Head rest Back rest Seat Rocker runners Front upper spindle Front lower spindle Back spindle HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance. -
Page 5: Assembly
Assembly 1 Attaching the bottom legs and left / right legs Attach the rocker runner (F) to the left side frame (A) by placing a drop of glue (DD) on the ends of the left side frame (A) as shown. Then secure the runner (F) and frame (A) together using bolts (AA). - Page 6 Assembly (continued) 2 Attaching the left leg Attach the seat (E), head rest (C), and spindels (H and I) to the left leg assembly (A) using bolts (AA). Tighten with the Allen key (CC). Description Quantity Part ø BOLT 12,7/1/4” x 45 MM ALLEN KEY HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 7 Assembly (continued) 3 Attaching the right leg Attach the seat (E), head rest (C), back rest (D) and spindels (H,G and I) to the right leg assembly (B) using bolts (AA). Tighten with the Allen key (CC). Description Quantity Part ø...
- Page 8 Assembly (continued) 4 Attaching wooden plug Attach the wooden plugs (BB) as shown. Description Quantity Part WOODEN PLUG HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
