Campbell HFP01 Product Manual

Soil heat flux plate
Hide thumbs Also See for HFP01:

Advertisement

Quick Links

HFP01
Soil Heat Flux Plate
Revision: 1/20
Copyright © 2002 – 2020
Campbell Scientific, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HFP01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Campbell HFP01

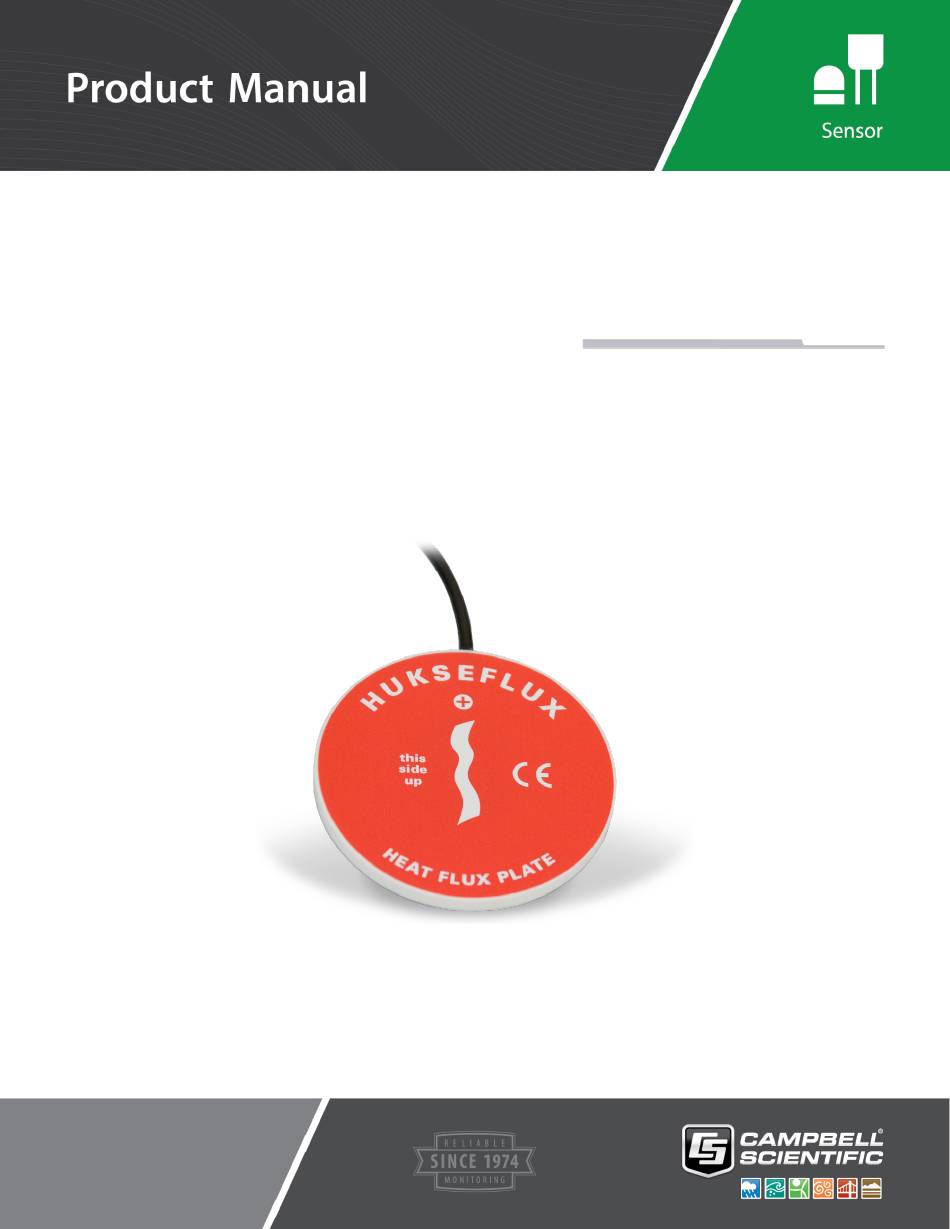

  • Page 1 HFP01 Soil Heat Flux Plate Revision: 1/20 Copyright © 2002 – 2020 Campbell Scientific, Inc.
  • Page 2 Limited Warranty “Products manufactured by CSI are warranted by CSI to be free from defects in materials and workmanship under normal use and service for twelve months from the date of shipment unless otherwise specified in the corresponding product manual. (Product manuals are available for review online at www.campbellsci.com.) Products not manufactured by CSI, but that are resold by CSI, are warranted only to the limits extended by the original manufacturer.
  • Page 3 Campbell Scientific company serves your country. To obtain a Returned Materials Authorization (RMA) number, contact CAMPBELL SCIENTIFIC, INC., phone (435) 227-9000. Please write the issued RMA number clearly on the outside of the shipping container. Campbell Scientific’s shipping address is: CAMPBELL SCIENTIFIC, INC.
  • Page 4 Periodically (at least yearly) check electrical ground connections. • WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR ATTACHMENTS TO TRIPODS AND TOWERS SUCH AS SENSORS, CROSSARMS, ENCLOSURES, ANTENNAS, ETC.
  • Page 5: Table Of Contents

    Table of Contents PDF viewers: These page numbers refer to the printed version of this document. Use the PDF reader bookmarks tab for links to specific sections. 1. Introduction..............1 2. Precautions ..............1 3. Initial Inspection ............1 4. QuickStart ..............1 5.
  • Page 6 Table of Contents 7-2. HFP01 plate to data logger connections ..........6 C-1. General characteristics of a heat flux sensor ........C-1 C-2. Deflection error ................C-2 Tables 7-1. Wire Color, Function, and Data Logger Connections ......6 B-1. Wiring for CRBasic Example B-1............ B-1 CRBasic Example B-1.
  • Page 7: Introduction

    Model HFP01 Soil Heat Flux Plate Introduction The HFP01 outputs a voltage signal that is proportional to the heat flux of the surrounding medium (usually soil). It is typically used for energy-balance or Bowen-ratio flux systems. Two sensors may provide spatial averaging. Sites with heterogeneous media may require additional sensors.
  • Page 8 Model HFP01 Soil Heat Flux Plate Double-click the data logger model. In the Available Sensors and Devices box, type HFP01 or locate the sensor in the select Sensors > Soil folder. Double-click HFP01 Soil Heat Flux Plate. Type the sensitivity provided on the calibration sheet; this value is sensor specific.
  • Page 9: Overview

    Assuming that the heat flux is steady, that the thermal conductivity of the body is constant, and that the sensor has negligible influence on the thermal flow pattern, the signal of the HFP01 is directly proportional to the local heat flux.
  • Page 10: Specifications

    A unique calibration constant is supplied with each sensor. To get the soil heat flux at the surface, use an HFP01 to measure soil heat flux; a TCAV Averaging Soil Thermocouple to measure the temporal change in temperature of the soil layer above the HFP01;...
  • Page 11: Placement In Soil

    Model HFP01 Soil Heat Flux Plate Placement in Soil The standard set of sensors for measuring soil heat flux includes an HFP01 Soil Heat Flux Plate, TCAV Averaging Soil Thermocouple, and CS616, CS650, or CS655 water content reflectometer. These sensors are installed as shown in FIGURE 7-1.
  • Page 12: Wiring

    Typically, the differential measurements are used. Signal (White) Signal Reference (Green) Shield (Clear) FIGURE 7-2. HFP01 plate to data logger connections TABLE 7-1. Wire Color, Function, and Data Logger Connections Data Logger Data Logger Wire Color...
  • Page 13: Programming

    . Programming basics and programming examples for (p. B-1) Edlog data loggers are provided at www.campbellsci.com/old-manuals. The HFP01 is measured using either a single-ended (VoltSE) or differential (VoltDiff) instruction. The differential measurement is recommended. Syntax of the VoltDiff() instruction is:...
  • Page 14: Maintenance

    The HFP01 requires minimal maintenance. Check the sensor cable monthly for rodent damage. Recalibrate the HFP01 for every two years of continuous use. References Hanks, R. J., and G. L. Ashcroft, 1980: Applied Soil Physics: Soil Water and Temperature Application.
  • Page 15: Importing Short Cut Code Into Crbasic Editor

    Appendix A. Importing Short Cut Code Into CRBasic Editor Short Cut creates a .DEF file that contains wiring information and a program file that can be imported into the CRBasic Editor. By default, these files reside in the C:\campbellsci\SCWin folder. Import Short Cut program file and wiring information into CRBasic Editor: Create the Short Cut program.
  • Page 16: Example Program

    Shield #2 Clear CRBasic Example B-1. Sample CR3000 Program using Differential Measurement Instructions 'CR3000 Series Data Logger 'This data logger program measures two HFP01 Hukseflux soil heat flux sensors '*** Constants *** Const HFP01_CAL_1 = 14.90 'Unique multiplier for HFP01 #1. 1000/sensitivity (1000/67.1) Const HFP01_CAL_2 = 14.92...
  • Page 17: General Theory Of Heat Flux Sensors

    The sensitivity is determined by the manufacturer, and is found on the calibration certificate that is supplied with each sensor. When used for measuring soil heat flux, heat flux sensors such as the HFP01 reach a limited level of accuracy. This is because thermal parameters of soil are constantly changing (soil moisture content) and the ambient temperature is not fixed.
  • Page 18: Extended Theory

    Appendix C. General Theory of Heat Flux Sensors The reference conditions for the calibration are a thermal conductivity of 0.8 W/mK and a nominal temperature of 20 °C. C.2 Extended Theory Obviously, the sensor itself can significantly disturb the phenomenon that it is supposed to measure.
