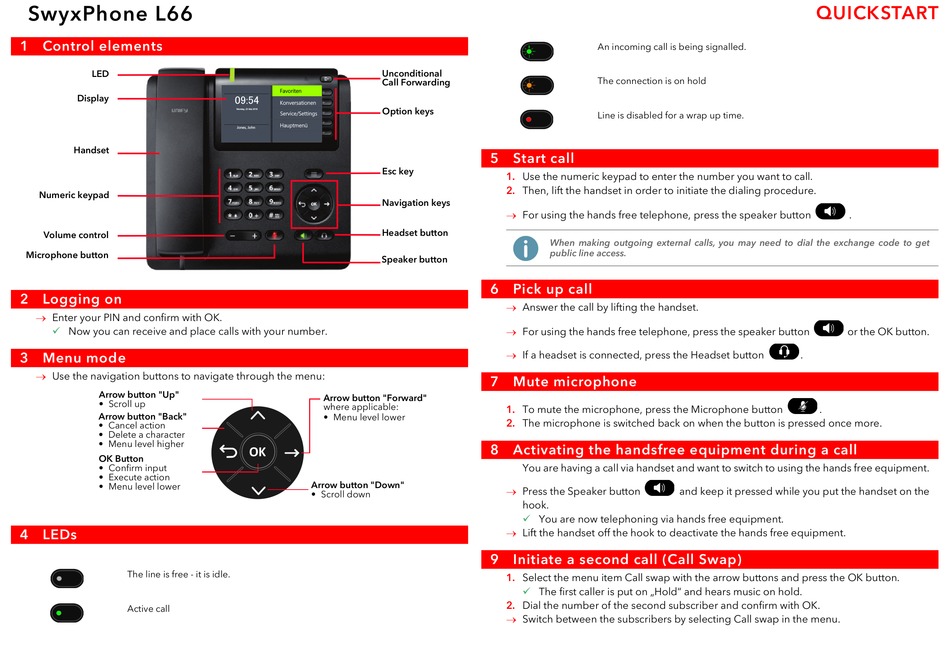

Swyx SwyxPhone L66 Quick Start

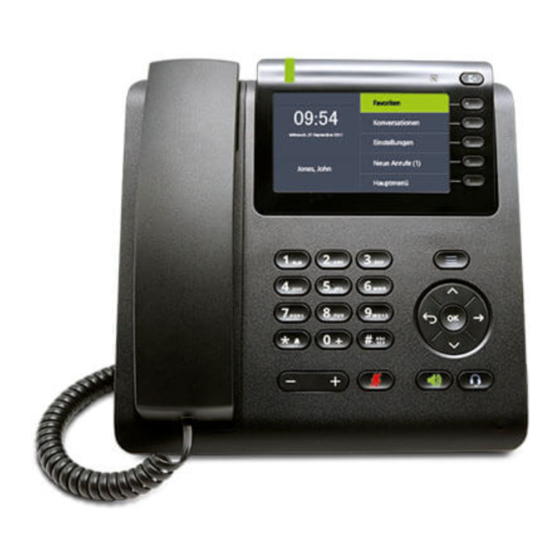

SwyxPhone L66
1 Control elements
LED
Display
Handset
Numeric keypad
Volume control
Microphone button
2 Logging on

Enter your PIN and confirm with OK.
Now you can receive and place calls with your number.

3 Menu mode
 Use the navigation buttons to navigate through the menu:
Arrow button "Up"
• Scroll up
Arrow button "Back"
• Cancel action
• Delete a character
• Menu level higher
OK Button
• Confirm input
• Execute action
• Menu level lower
4 LEDs
The line is free - it is idle.
Active call
Unconditional
Call Forwarding
Favoriten
Konversationen
Option keys
Monday, 23 Mai 2018
Service/Settings
Hauptmenü
Jones, John
Esc key
Navigation keys
Headset button
Speaker button
Arrow button "Forward"
where applicable:
• Menu level lower
Arrow button "Down"
• Scroll down
An incoming call is being signalled.
The connection is on hold
Line is disabled for a wrap up time.
5 Start call
1. Use the numeric keypad to enter the number you want to call.
2.
Then, lift the handset in order to initiate the dialing procedure.

For using the hands free telephone, press the speaker button
When making outgoing external calls, you may need to dial the exchange code to get
public line access.
6 Pick up call
 Answer the call by lifting the handset.

For using the hands free telephone, press the speaker button

If a headset is connected, press the Headset button
7 Mute microphone
1. To mute the microphone, press the Microphone button
2. The microphone is switched back on when the button is pressed once more.
8 Activating the handsfree equipment during a call
You are having a call via handset and want to switch to using the hands free equipment.
 Press the Speaker button
hook.
 You are now telephoning via hands free equipment.

Lift the handset off the hook to deactivate the hands free equipment.
9 Initiate a second call (Call Swap)
1. Select the menu item Call swap with the arrow buttons and press the OK button.
The first caller is put on „Hold" and hears music on hold.

2. Dial the number of the second subscriber and confirm with OK.

Switch between the subscribers by selecting Call swap in the menu.
QUICKSTART
.
or the OK button.
.
.
and keep it pressed while you put the handset on the
