Swyx SwyxPhone D565 Quick Start

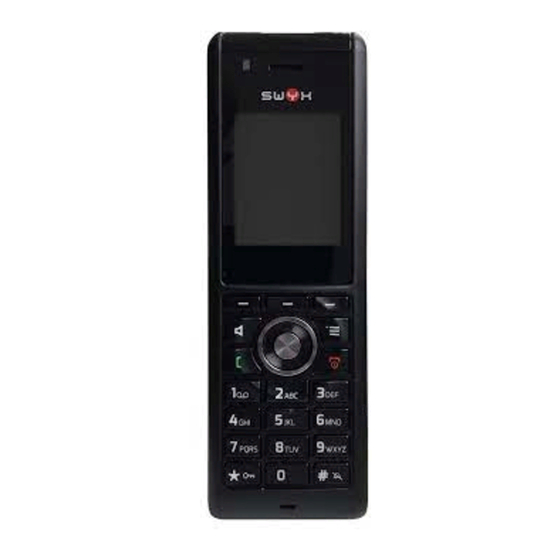

SwyxPhone D565

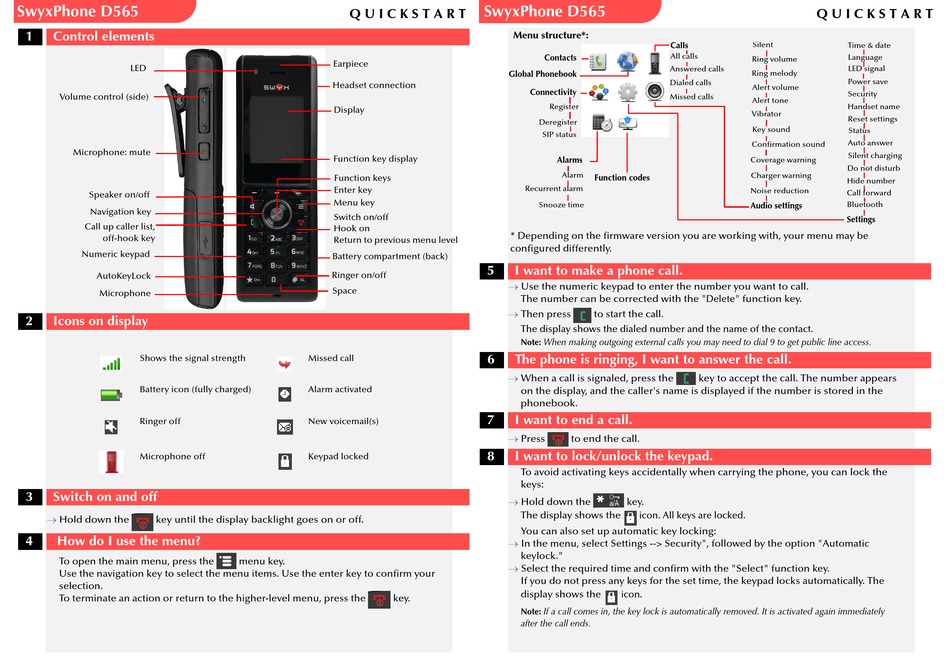

1 Control elements
LED
Volume control (side)
Microphone: mute
Speaker on/off
Navigation key
Call up caller list,
off-hook key
Numeric keypad
AutoKeyLock
Microphone
2 Icons on display
Shows the signal strength
Battery icon (fully charged)
Ringer off
Microphone off
3 Switch on and off
Hold down the
key until the display backlight goes on or off.
4 How do I use the menu?
To open the main menu, press the
Use the navigation key to select the menu items. Use the enter key to confirm your
selection.
To terminate an action or return to the higher-level menu, press the
Q U I C K S T A R T
Earpiece
Headset connection
Display
Function key display
Function keys
Enter key
Menu key
Switch on/off
Hook on
Return to previous menu level
Battery compartment (back)
Ringer on/off
Space
Missed call
Alarm activated
New voicemail(s)
Keypad locked
menu key.
key.
SwyxPhone D565
Menu structure*:
Contacts
Global Phonebook
Connectivity
Register
Deregister
SIP status
Alarms
Alarm
Function codes
Recurrent alarm
Snooze time
* Depending on the firmware version you are working with, your menu may be
configured differently.
5 I want to make a phone call.
Use the numeric keypad to enter the number you want to call.
The number can be corrected with the "Delete" function key.
Then press
to start the call.
The display shows the dialed number and the name of the contact.
Note: When making outgoing external calls you may need to dial 9 to get public line access.
6 The phone is ringing, I want to answer the call.
When a call is signaled, press the
on the display, and the caller's name is displayed if the number is stored in the
phonebook.
7 I want to end a call.
Press
to end the call.
8 I want to lock/unlock the keypad.
To avoid activating keys accidentally when carrying the phone, you can lock the
keys:
Hold down the
key.
The display shows the icon. All keys are locked.
You can also set up automatic key locking:
In the menu, select Settings --> Security", followed by the option "Automatic
keylock."
Select the required time and confirm with the "Select" function key.
If you do not press any keys for the set time, the keypad locks automatically. The
display shows the icon.
If a call comes in, the key lock is automatically removed. It is activated again immediately
Note:
after the call ends.
Q U I C K S T A R T
Calls Silent
Time & date
All calls
Language
Ring volume
Answered calls LED signal
Ring melody
Power save
Dialed calls
Alert volume
Security
Missed calls
Alert tone
Handset name
Vibrator
Reset settings
Key sound
Status
Auto answer
Confirmation sound
Silent charging
Coverage warning
Do not disturb
Charger warning
Hide number
Noise reduction
Call forward
Bluetooth
Audio settings
Settings
key to accept the call. The number appears
