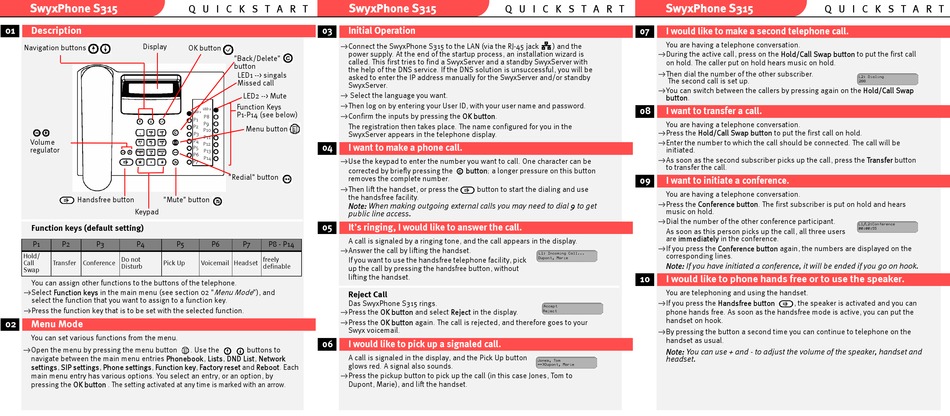

Swyx SwyxPhone S315 Quick Start

SwyxPhone S315
01 Description
Display
Navigation buttons
Volume
regulator
Handsfree button "Mute" button
Keypad
Function keys (default setting)
P1 P2 P3 P4 P5
Hold/
Do not
Call Transfer Conference Pick Up
Disturb
Swap
You can assign other functions to the buttons of the telephone.
tSelect Function keys in the main menu (see section 02 "
select the function that you want to assign to a function key.
tPress the function key that is to be set with the selected function.
02 Menu Mode
You can set various functions from the menu.
tOpen the menu by pressing the menu button
navigate between the main menu entries Phonebook, Lists, DND List, Network
settings, SIP settings, Phone settings, Function key, Factory reset and Reboot. Each
main menu entry has various options. You select an entry, or an option, by
pressing the OK button . The setting activated at any time is marked with an arrow.
SwyxPhone S315
Q U I C K S T A R T
03 Initial Operation
tConnect the SwyxPhone S315 to the LAN (via the RJ-45 jack
OK button
power supply. At the end of the startup process, an installation wizard is
"Back/Delete"
called. This first tries to find a SwyxServer and a standby SwyxServer with
button
the help of the DNS service. If the DNS solution is unsuccessful, you will be
LED1 --> singals
asked to enter the IP address manually for the SwyxServer and/or standby
Missed call
SwyxServer.
t Select the language you want.
LED2 --> Mute
tThen log on by entering your User ID, with your user name and password.
Function Keys
LED 2
LED 1
P1-P14 (see below) tConfirm the inputs by pressing the OK button.
P8
P1
P9
The registration then takes place. The name configured for you in the
P2
Menu button
P10
SwyxServer appears in the telephone display.
P3
P11
P4
P12 04 I want to make a phone call.
P5
P13
P6
P14
tUse the keypad to enter the number you want to call. One character can be
P7
corrected by briefly pressing the
"Redial" button
removes the complete number.
tThen lift the handset, or press the
the handsfree facility.
Note: When making outgoing external calls you may need to dial 9 to get
public line access.
05 It's ringing, I would like to answer the call.
A call is signaled by a ringing tone, and the call appears in the display.
P6 P7 P8 - P14
tAnswer the call by lifting the handset.
freely If you want to use the handsfree telephone facility, pick
Voicemail Headset
definable
up the call by pressing the handsfree button, without
lifting the handset.
Menu Mode "), and Reject Call
Das SwyxPhone S315 rings.
tPress the OK button and select Reject in the display.
tPress the OK button again. The call is rejected, and therefore goes to your
Swyx voicemail.
06 I would like to pick up a signaled call.
. Use the buttons to
A call is signaled in the display, and the Pick Up button
glows red. A signal also sounds.
tPress the pickup button to pick up the call (in this case Jones, Tom to
Dupont, Marie), and lift the handset.
Q U I C K S T A R T
07
) and the
08
button; a longer pressure on this button
09
button to start the dialing and use
L1: Incoming Call...
Dupont, Marie
10
Accept
Reject
Jones, Tom
==>Dupont, Marie
SwyxPhone S315
Q U I C K S T A R T
I would like to make a second telephone call.
You are having a telephone conversation.
tDuring the active call, press on the Hold/Call Swap button to put the first call
on hold. The caller put on hold hears music on hold.
tThen dial the number of the other subscriber.
The second call is set up.
tYou can switch between the callers by pressing again on the Hold/Call Swap
button.
I want to transfer a call.
You are having a telephone conversation.
tPress the Hold/Call Swap button to put the first call on hold.
tEnter the number to which the call should be connected. The call will be
initiated.
tAs soon as the second subscriber picks up the call, press the Transfer button
to transfer the call.
I want to initiate a conference.
You are having a telephone conversation.
tPress the Conference button. The first subscriber is put on hold and hears
music on hold.
tDial the number of the other conference participant.
As soon as this person picks up the call, all three users
are immediately in the conference.
tIf you press the Conference button again, the numbers are displayed on the
corresponding lines.
Note: If you have initiated a conference, it will be ended if you go on hook.
I would like to phone hands free or to use the speaker.
You are telephoning and using the handset.
tIf you press the Handsfree button
, the speaker is activated and you can
phone hands free. As soon as the handsfree mode is active, you can put the
handset on hook.
tBy pressing the button a second time you can continue to telephone on the
handset as usual.
Note: You can use + and - to adjust the volume of the speaker, handset and
headset.
L2: Dialing
288
L1/L2:Conference
00:00:55
