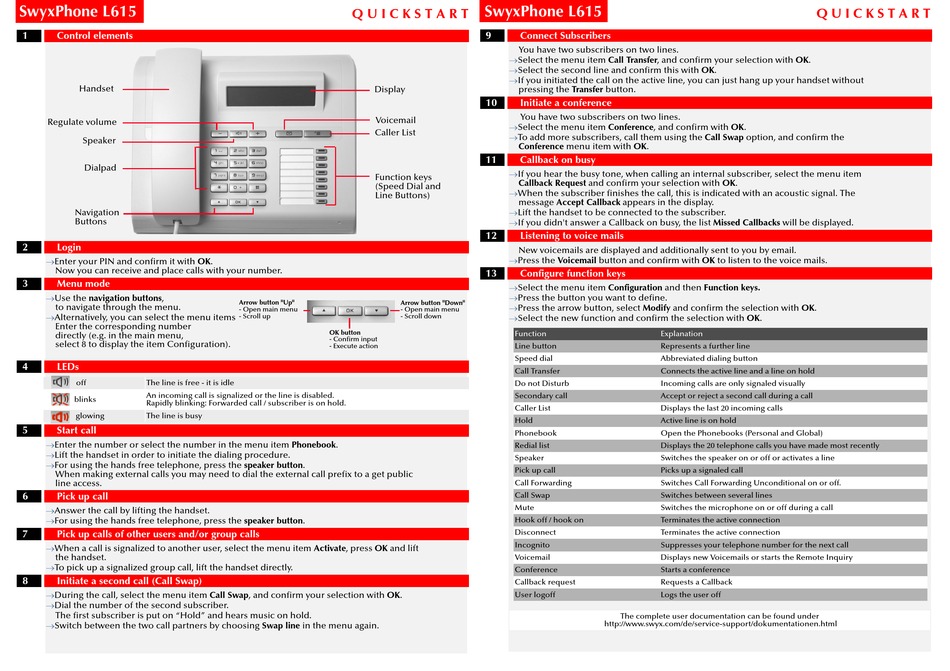

Swyx SwyxPhone L615 Quick Start Manual

SwyxPhone L615
1 Control elements
Handset
Regulate volume
Speaker
Dialpad
Navigation
Buttons
2 Login
Enter your PIN and confirm it with OK.
Now you can receive and place calls with your number.
3 Menu mode
Use the navigation buttons,
to navigate through the menu.
Alternatively, you can select the menu items
Enter the corresponding number
directly (e.g. in the main menu,
select 8 to display the item Configuration).
4 LEDs
off The line is free - it is idle
An incoming call is signalized or the line is disabled.
blinks
Rapidly blinking: Forwarded call / subscriber is on hold.
glowing The line is busy
5 Start call
Enter the number or select the number in the menu item Phonebook.
Lift the handset in order to initiate the dialing procedure.
For using the hands free telephone, press the speaker button.
When making external calls you may need to dial the external call prefix to a get public
line access.
6 Pick up call
Answer the call by lifting the handset.
For using the hands free telephone, press the speaker button.
7 Pick up calls of other users and/or group calls
When a call is signalized to another user, select the menu item Activate, press OK and lift
the handset.
To pick up a signalized group call, lift the handset directly.
8 Initiate a second call (Call Swap)
During the call, select the menu item Call Swap, and confirm your selection with OK.
Dial the number of the second subscriber.
The first subscriber is put on "Hold" and hears music on hold.
Switch between the two call partners by choosing Swap line in the menu again.
Q U I C K S T A R T
Display
Voicemail
Caller List
Function keys
(Speed Dial and
Line Buttons)
Arrow button "Up" Arrow button "Down"
- Open main menu - Open main menu
- Scroll up - Scroll down
OK button
- Confirm input
- Execute action
SwyxPhone L615
9 Connect Subscribers
You have two subscribers on two lines.
Select the menu item Call Transfer, and confirm your selection with OK.
Select the second line and confirm this with OK.
If you initiated the call on the active line, you can just hang up your handset without
pressing the Transfer button.
10 Initiate a conference
You have two subscribers on two lines.
Select the menu item Conference, and confirm with OK.
To add more subscribers, call them using the Call Swap option, and confirm the
Conference menu item with OK.
11 Callback on busy
If you hear the busy tone, when calling an internal subscriber, select the menu item
Callback Request and confirm your selection with OK.
When the subscriber finishes the call, this is indicated with an acoustic signal. The
message Accept Callback appears in the display.
Lift the handset to be connected to the subscriber.
If you didn't answer a Callback on busy, the list Missed Callbacks will be displayed.
12 Listening to voice mails
New voicemails are displayed and additionally sent to you by email.
Press the Voicemail button and confirm with OK to listen to the voice mails.
13 Configure function keys
Select the menu item Configuration and then Function keys.
Press the button you want to define.
Press the arrow button, select Modify and confirm the selection with OK.
Select the new function and confirm the selection with OK.
Function Explanation
Line button Represents a further line
Speed dial Abbreviated dialing button
Call Transfer Connects the active line and a line on hold
Do not Disturb Incoming calls are only signaled visually
Secondary call Accept or reject a second call during a call
Caller List Displays the last 20 incoming calls
Hold Active line is on hold
Phonebook Open the Phonebooks (Personal and Global)
Redial list Displays the 20 telephone calls you have made most recently
Speaker Switches the speaker on or off or activates a line
Pick up call Picks up a signaled call
Call Forwarding Switches Call Forwarding Unconditional on or off.
Call Swap Switches between several lines
Mute Switches the microphone on or off during a call
Hook off / hook on Terminates the active connection
Disconnect Terminates the active connection
Incognito Suppresses your telephone number for the next call
Voicemail Displays new Voicemails or starts the Remote Inquiry
Conference Starts a conference
Callback request Requests a Callback
User logoff Logs the user off
The complete user documentation can be found under
http://www.swyx.com/de/service-support/dokumentationen.html
