Installation

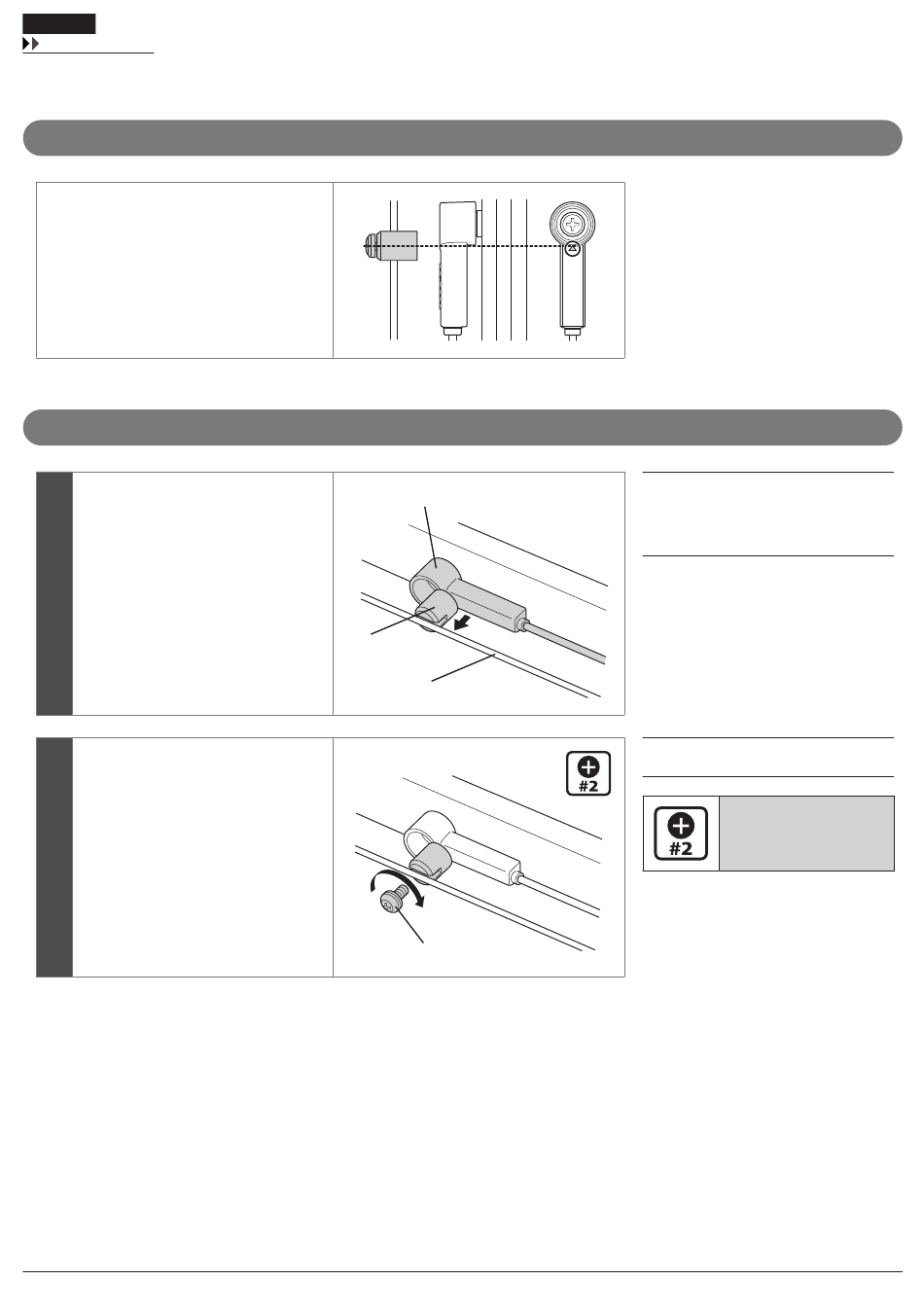

Mounting the magnet

„ Mounting the magnet
Magnet mounting position
Mount the magnet so that its center is aligned
over the apex of the triangle symbol.
How to mount the magnet
Align the speed sensor (A) and magnet
unit (B) as shown in the illustration.
1
Tighten the mounting screw (D) with a
screwdriver.
2
(A)
(B)
(C)
(D)
19
(A)
Speed sensor
(B)
Magnet unit
(C)
Spoke
(D)
Mounting screw
Tightening torque:
1.5 - 2 N·m
{14 - 17 in. lbs.}
