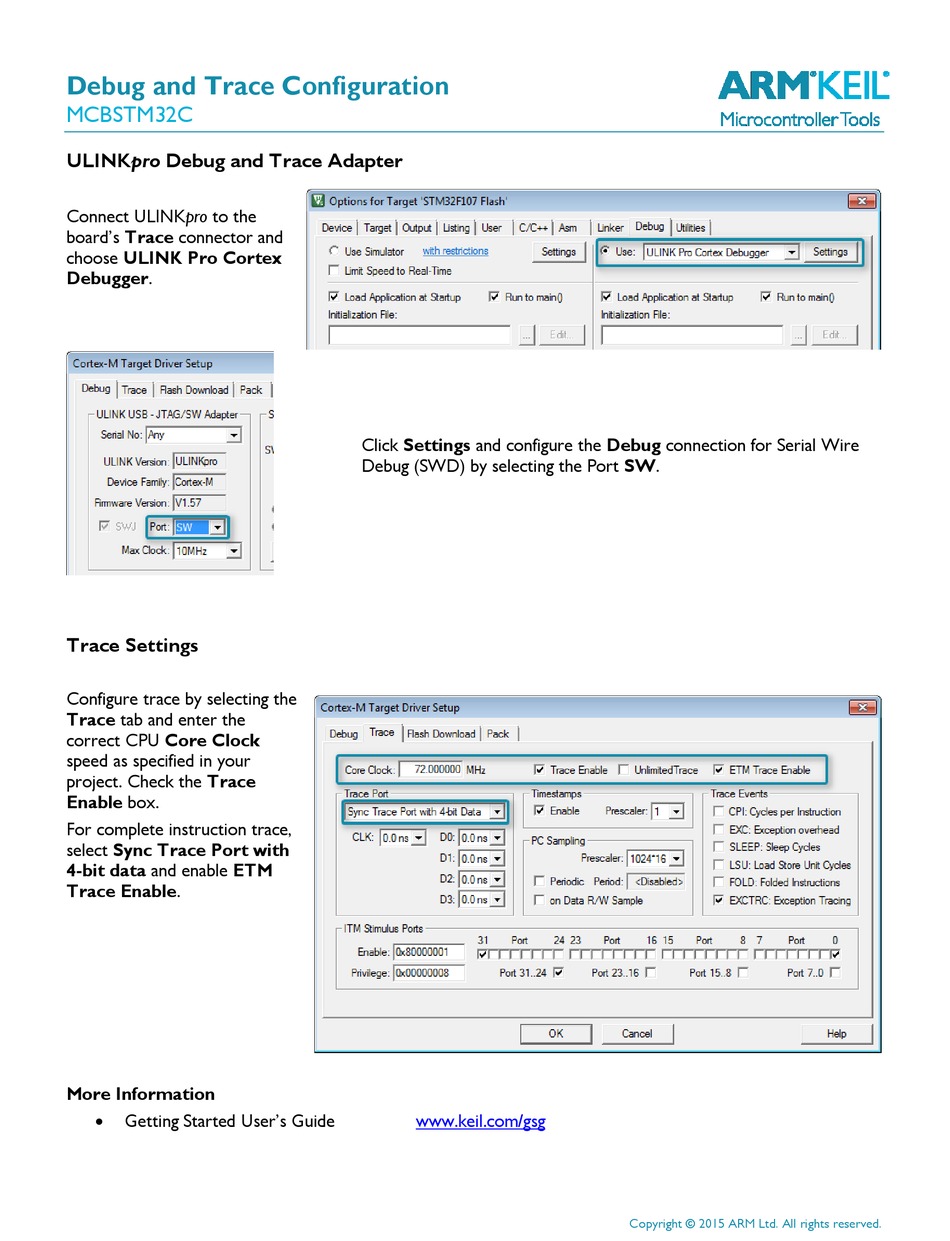

Debug and Trace Configuration
MCBSTM32C
ULINKpro Debug and Trace Adapter
Connect ULINKpro to the
board's Trace connector and
choose ULINK Pro Cortex
Debugger.
Trace Settings
Configure trace by selecting the
Trace tab and enter the
correct CPU Core Clock
speed as specified in your
project. Check the Trace
Enable box.
For complete instruction trace,
select Sync Trace Port with
4-bit data and enable ETM
Trace Enable.
More Information
Getting Started User's Guide
Click Settings and configure the Debug connection for Serial Wire
Debug (SWD) by selecting the Port SW.
www.keil.com/gsg
Copyright © 2015 ARM Ltd. All rights reserved.
