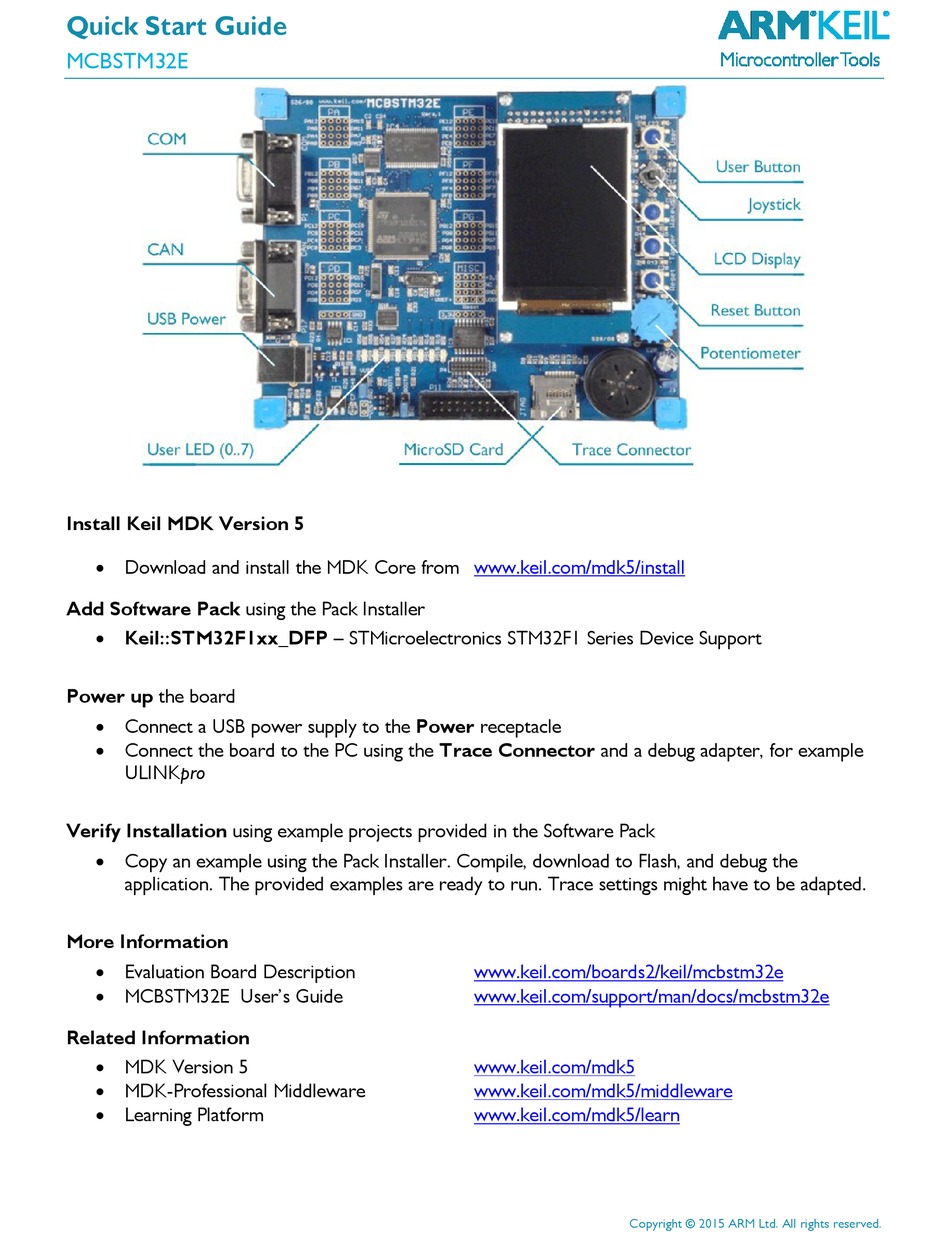

Quick Start Guide
MCBSTM32E

Install Keil MDK Version 5

 Download and install the MDK Core from
Add Software Pack using the Pack Installer
 Keil::STM32F1xx_DFP – STMicroelectronics STM32F1 Series Device Support

Power up the board

 Connect a USB power supply to the Power receptacle
 Connect the board to the PC using the Trace Connector and a debug adapter, for example
ULINKpro
Verify Installation using example projects provided in the Software Pack
 Copy an example using the Pack Installer. Compile, download to Flash, and debug the
application. The provided examples are ready to run. Trace settings might have to be adapted.
More Information
 Evaluation Board Description
 MCBSTM32E User's Guide
Related Information
 MDK Version 5
 MDK-Professional Middleware
 Learning Platform
www.keil.com/mdk5/install
www.keil.com/boards2/keil/mcbstm32e
www.keil.com/support/man/docs/mcbstm32e
www.keil.com/mdk5
www.keil.com/mdk5/middleware
www.keil.com/mdk5/learn
Copyright © 2015 ARM Ltd. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KEIL MCBSTM32E and is the answer not in the manual?

Questions and answers

Related Manuals for ARM KEIL MCBSTM32E

Summary of Contents for ARM KEIL MCBSTM32E

  • Page 1 The provided examples are ready to run. Trace settings might have to be adapted. More Information  Evaluation Board Description www.keil.com/boards2/keil/mcbstm32e  MCBSTM32E User’s Guide www.keil.com/support/man/docs/mcbstm32e Related Information  MDK Version 5 www.keil.com/mdk5  MDK-Professional Middleware www.keil.com/mdk5/middleware  Learning Platform www.keil.com/mdk5/learn Copyright © 2015 ARM Ltd. All rights reserved.
  • Page 2 Check the Trace Enable box. For complete instruction trace, select Sync Trace Port with 4-bit data and enable ETM Trace Enable. More Information  Getting Started User’s Guide www.keil.com/gsg Copyright © 2015 ARM Ltd. All rights reserved.
