ARM KEIL MCB1700 Quick Start Manual

Nxp lpc1700

Advertisement

Quick Links

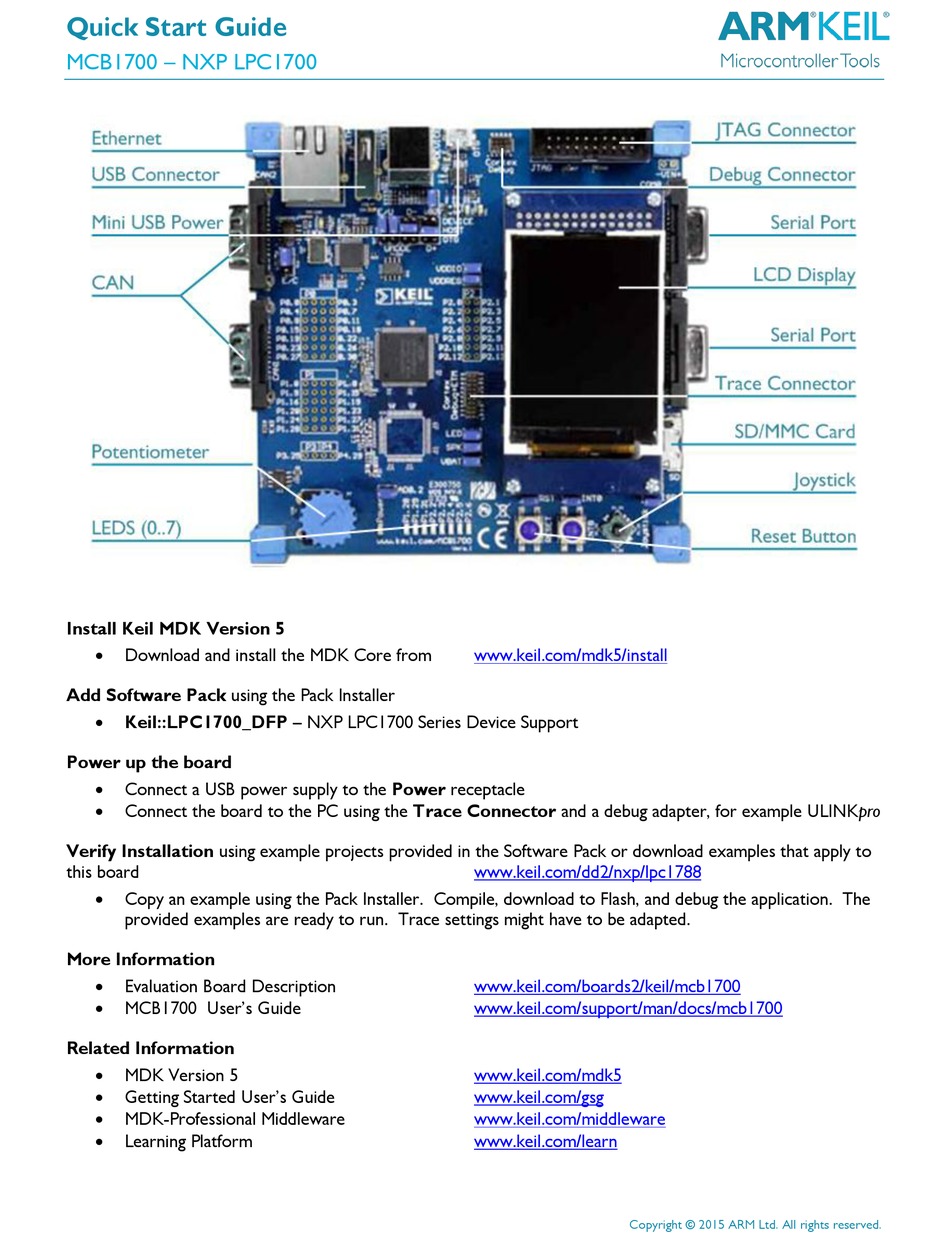

Quick Start Guide
MCB1700 – NXP LPC1700

Install Keil MDK Version 5

Download and install the MDK Core from

Add Software Pack using the Pack Installer

Keil::LPC1700_DFP – NXP LPC1700 Series Device Support

Power up the board

Connect a USB power supply to the Power receptacle
Connect the board to the PC using the Trace Connector and a debug adapter, for example ULINKpro
Verify Installation using example projects provided in the Software Pack or download examples that apply to
this board
Copy an example using the Pack Installer. Compile, download to Flash, and debug the application. The
provided examples are ready to run. Trace settings might have to be adapted.

More Information

Evaluation Board Description
MCB1700 User's Guide

Related Information

MDK Version 5
Getting Started User's Guide
MDK-Professional Middleware
Learning Platform
www.keil.com/mdk5/install
www.keil.com/dd2/nxp/lpc1788
www.keil.com/boards2/keil/mcb1700
www.keil.com/support/man/docs/mcb1700
www.keil.com/mdk5
www.keil.com/gsg
www.keil.com/middleware
www.keil.com/learn
