ProMediaGear BH50 Instructions

Professional ball head with c60 and c40 clamp

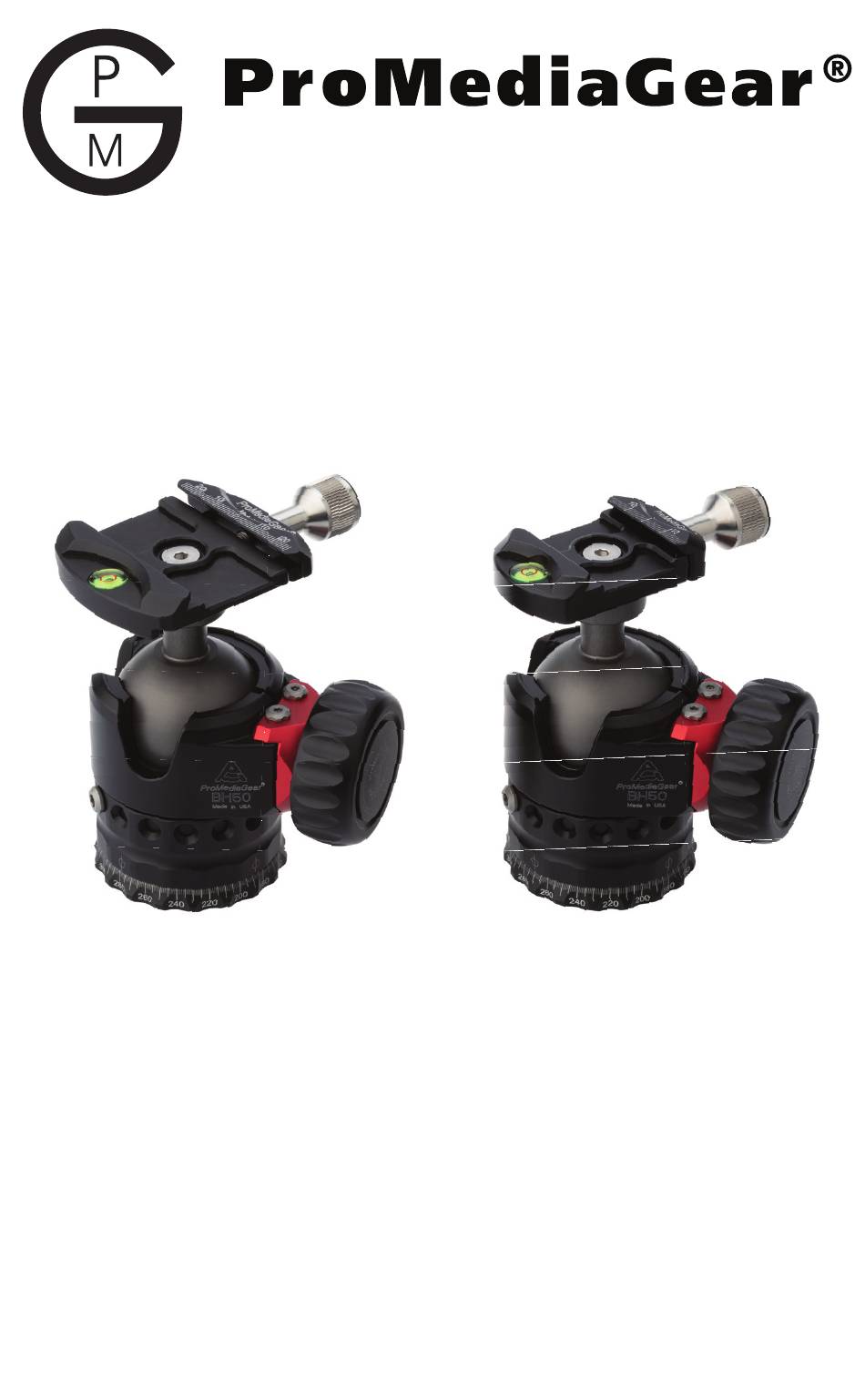

with C60 Clamp

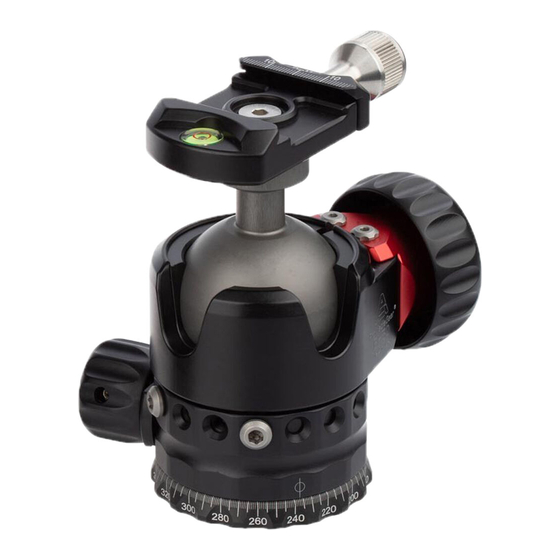

#BH50 Professional Ball Head

Speciﬁ cations:

Height

..............................................................................4.75 inches (123 mm)

Width

................................................................................. 3.75 inches (95 mm)

Weight (c40-c60 Version)

Base Diameter

16555 108th Ave. • Orland Park, IL 60467 USA

1.888.413.3332 • 708.263.4443

.......................................1.54-1.59.....lbs.(700-723g)

..................................................................2.5 inches (63 mm)

with C40 Clamp

Table of Contents

Need help?

Do you have a question about the BH50 and is the answer not in the manual?

Page 1 16555 108th Ave. • Orland Park, IL 60467 USA 1.888.413.3332 • 708.263.4443 with C60 Clamp with C40 Clamp #BH50 Professional Ball Head Speciﬁ cations: Height ................4.75 inches (123 mm) Width ................. 3.75 inches (95 mm) Weight (c40-c60 Version) ........1.54-1.59..lbs.(700-723g) Base Diameter...
Page 2 C. 90° Drop Slots D. Mounting / Panning Base First Step: Mount the #BH50 onto your Tripod or Mounting Base with a 3/8-16 Mounting Thread Screw. Begin by spinning the entire Ball Head until the unit becomes snug. Next, conﬁ rm the panning Knob (F) is tight and give the unit a few additional light twists to ﬁ...
Page 3 Repositioning of the Panning Knob Panning Knob - repositioned to desired position Repositionable Panning Knob of BH50 makes it a unique Ball head. 1. Locate the two screws as in image above on the left. 2. Remove them using 5/32" Hex Key (center image) counter-clockwise.
Page 4 Ball Head Maintenance Check periodically for loose screws and tighten with the included hardware. Oil if necessary with WD40 or a silicone spray. The #BH50 is a precision instrument that should be used only as directed. What's In The Box •...
