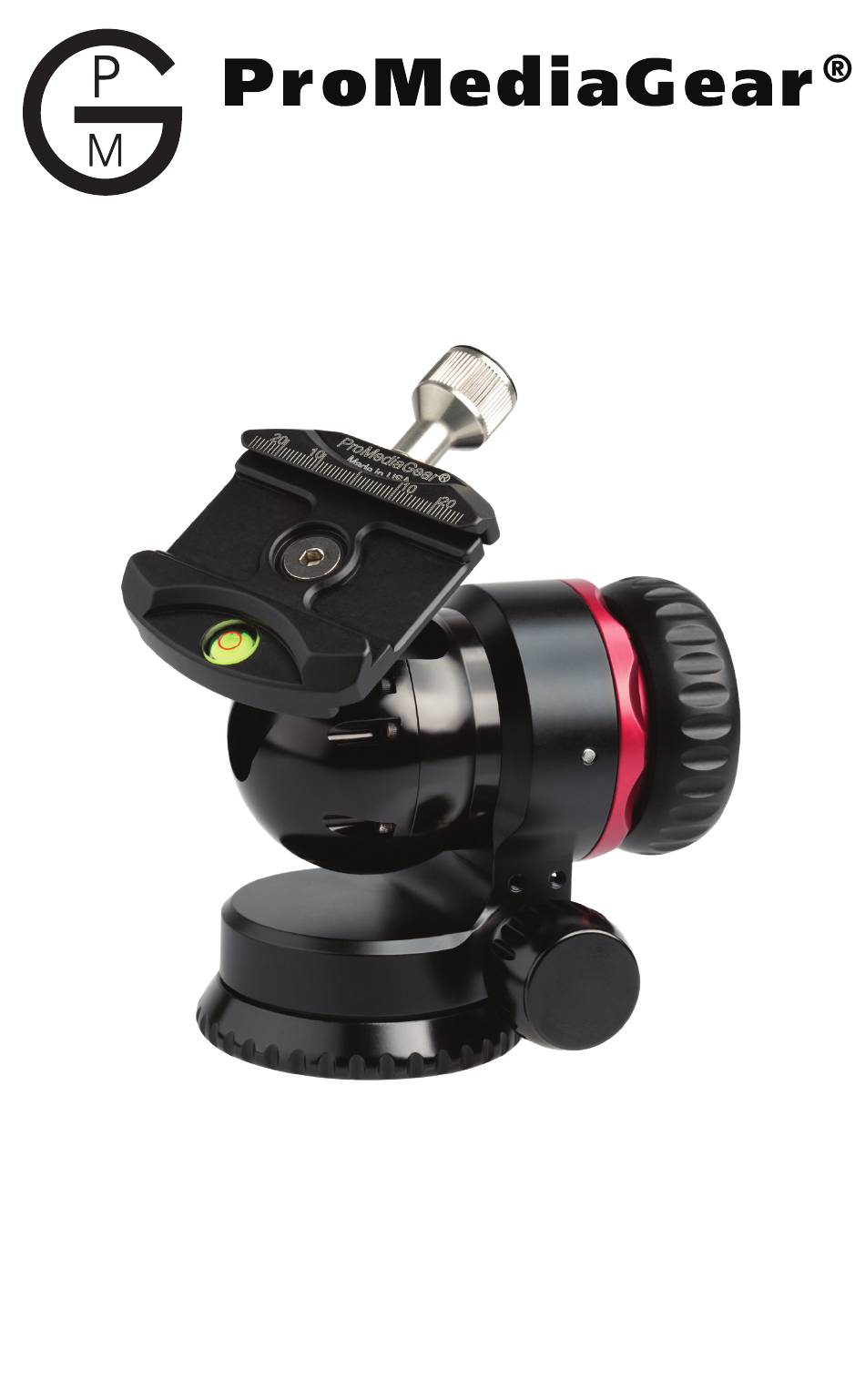

#BH1, Ball Head
Specifications:
Height
..............................................................................5.50 inches (139 mm)
Width
................................................ 4.25 inches (108 mm) (Including Pan Knob)
Weight
.......................................................................................2.03 lbs. (920g)
270° (Tilt-Y-Axis)...................90° (Tilt-X-Axis)...................360°(Panning)
16555 108th Ave. • Orland Park, IL 60467 USA
1.888.413.3332 • 708.263.4443
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ProMediaGear BH1
Summary of Contents for ProMediaGear BH1
-
Page 1: Specifications
16555 108th Ave. • Orland Park, IL 60467 USA 1.888.413.3332 • 708.263.4443 #BH1, Ball Head Specifications: Height ................5.50 inches (139 mm) Width ..........4.25 inches (108 mm) (Including Pan Knob) Weight ..................2.03 lbs. (920g) 270° (Tilt-Y-Axis)....90° (Tilt-X-Axis)....360°(Panning) - Page 2 E. 3/8-16 Mounting Adapter D. Mounting / Panning Base First Step: Mount the #BH1 onto your Tripod or Mounting Base with a 3/8-16 Mounting Thread Screw. Begin by spinning the entire Ball Head until the unit becomes snug. Next, confirm the panning screw (F) is tight and give the unit a few additional light twists to firmly lock it into place.
-
Page 4: Customer Service
Ball Head Maintenance Check periodically for loose screws and tighten with the included hardware. Oil if necessary with WD40 or a silicone spray. The #BH1 is a precision instrument that should be used only as directed. What's In The Box •...
