1-708 - 263- 4443 • Toll Free: 1 - 888 - 413-3332 • www.ProMediaGear.com

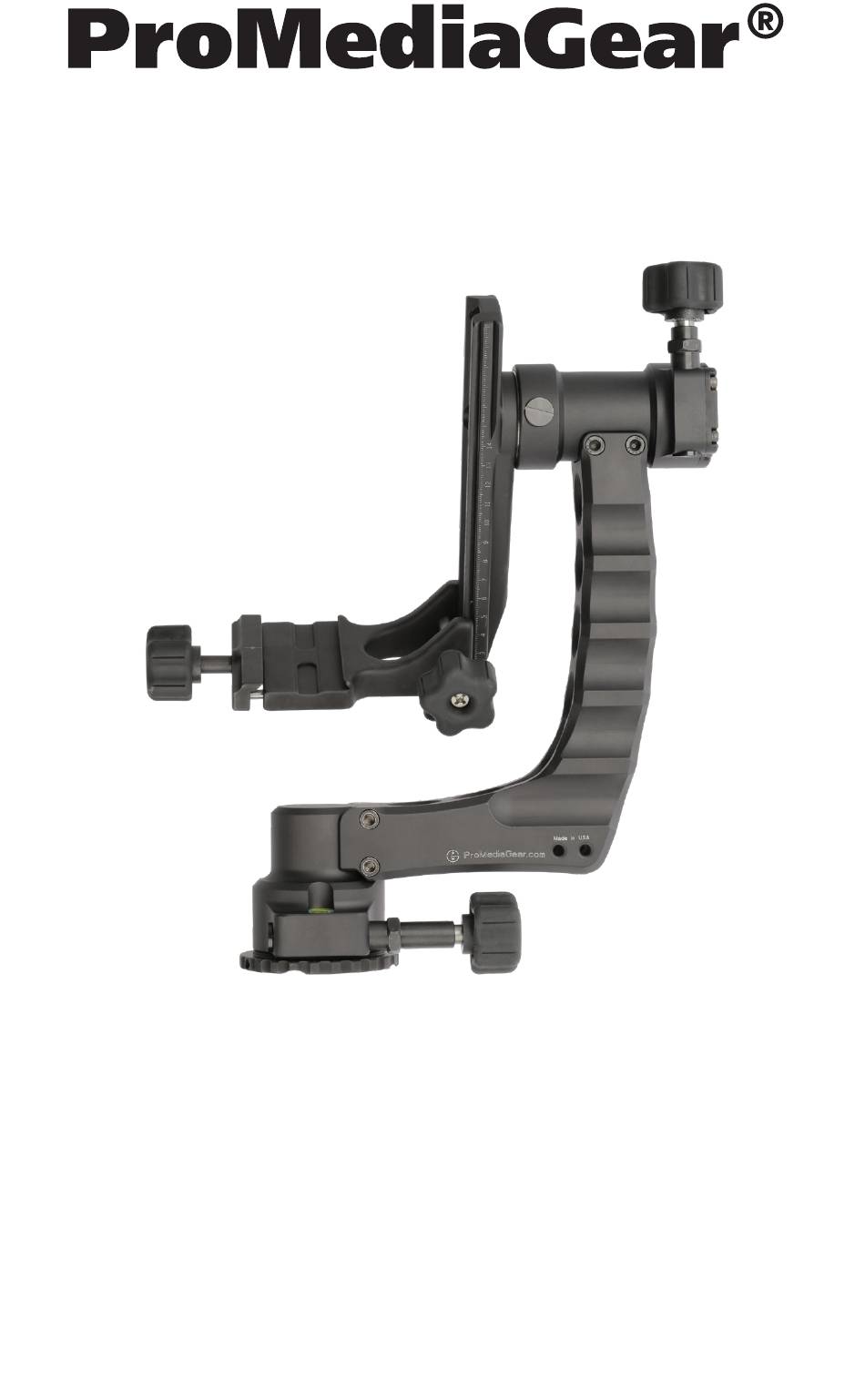

#GK, Katana Gimbal Head
Thank you for purchasing the ProMediaGear Katana Heavy Duty Gimbal Head.
The GK, Katana Gimbal was designed to effectively balance your telephoto lens
and camera for horizontal and vertical panning. Our robust design, featuring precision
engineering will allow effortless control of your lens. Shoot with confidence.

#GK Specifications:

Length............................................................................ 10.50 inches (267mm)
Width.....................................3 inches (76mm) 4.30 inches (109mm) with knob
Height .................................................................................13 inches (330mm)
Weight............................................................................... 5.58 pounds / 2531g
Load Capacity...................................................................... 150 pounds / 68 kg
Tripod Mount....................................................................................................... 3/8-16
16555 108th Ave, Orland Park, IL 60467 USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Katana GK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProMediaGear Katana GK

Summary of Contents for ProMediaGear Katana GK

  • Page 1 16555 108th Ave, Orland Park, IL 60467 USA 1-708 - 263- 4443 • Toll Free: 1 - 888 - 413-3332 • www.ProMediaGear.com #GK, Katana Gimbal Head Thank you for purchasing the ProMediaGear Katana Heavy Duty Gimbal Head. The GK, Katana Gimbal was designed to effectively balance your telephoto lens and camera for horizontal and vertical panning.
  • Page 2 Instructions A. Tilt Lock Knob B. Arca Compatible Vertical Arm C. Arca Compatible Clamp E. Cradle Clamp Knob D. Clamp Knob F. Pan Lock Knob G. Base Plate Setup: 1. To mount the GK Katana onto a tripod begin by rotating the Base Plate (G) clockwise on the 3/8 inch mounting screw of the tripod.
  • Page 3 Features • Smooth pan and tilt locking mechanism ( separate from assembly mounts ) • Arca compatible lens mount • CNC Precision Machined from T6061 aluminum • Sealed Ball Bearings • Hard anodized scratch resistant finish • Made in USA •...
  • Page 4 0918 16555 108th Ave, Orland Park, IL 60467 1-708 - 263-4443 • Toll Free: 1 - 888 - 413-3332 • www.ProMediaGear.com...
