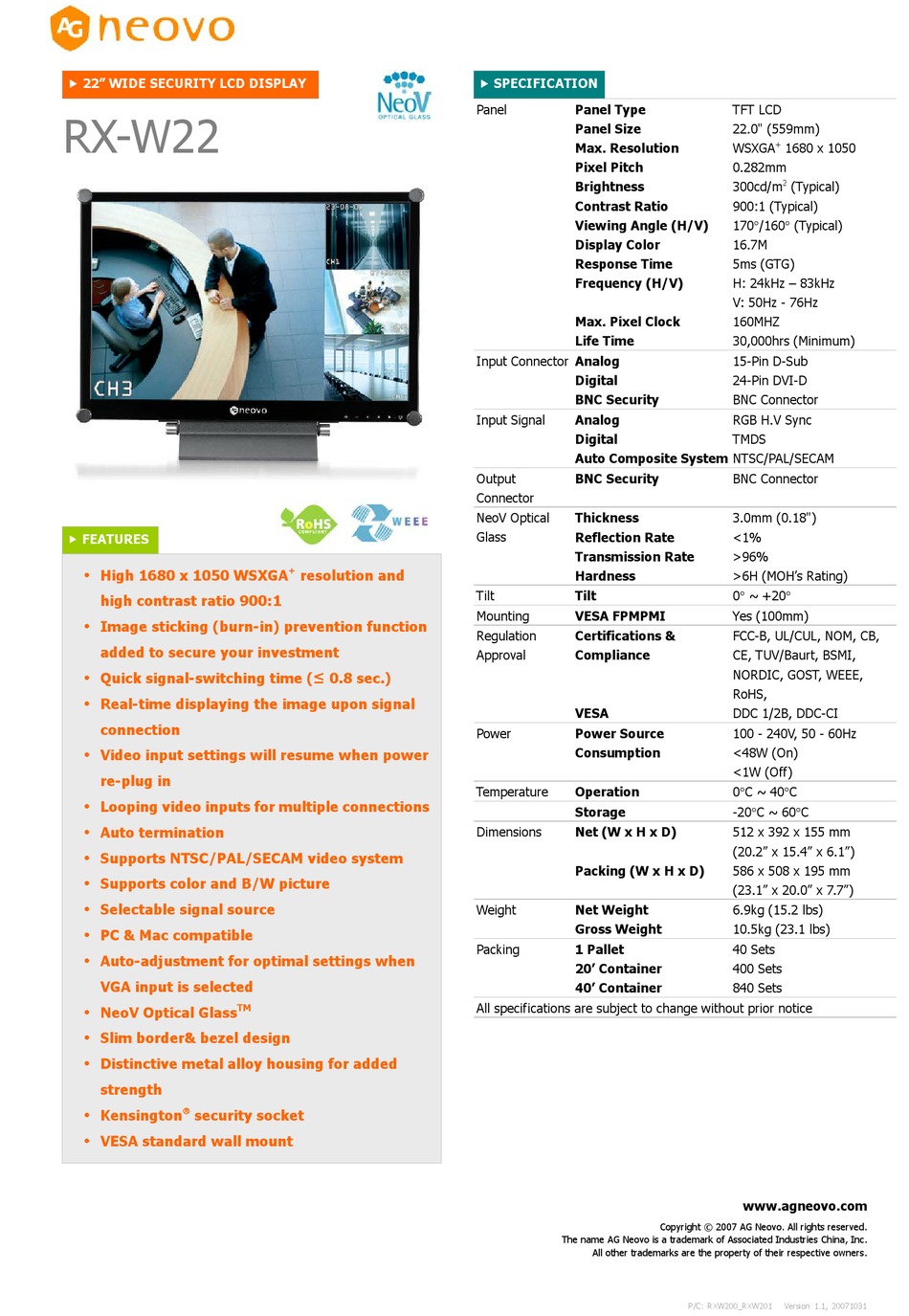

AG Neovo RX-W22 Specifications

22" WIDE SECURITY LCD DISPLAY
RX-W22
FEATURES
High 1680 x 1050 WSXGA
high contrast ratio 900:1
Image sticking (burn-in) prevention function
added to secure your investment
Quick signal-switching time (≤ 0.8 sec.)
Real-time displaying the image upon signal
connection
Video input settings will resume when power
re-plug in
Looping video inputs for multiple connections
Auto termination
Supports NTSC/PAL/SECAM video system
Supports color and B/W picture
Selectable signal source
PC & Mac compatible
Auto-adjustment for optimal settings when
VGA input is selected
NeoV Optical Glass
Slim border& bezel design
Distinctive metal alloy housing for added
strength

Kensington security socket
VESA standard wall mount
+
resolution and
TM
SPECIFICATION
Panel Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Viewing Angle (H/V)
Display Color
Response Time
Frequency (H/V)
Max. Pixel Clock
Life Time
Input Connector Analog
Digital
BNC Security
Input Signal Analog
Digital
Auto Composite System NTSC/PAL/SECAM
Output BNC Security
Connector
NeoV Optical Thickness
Glass Reflection Rate
Transmission Rate
Hardness
Tilt Tilt
Mounting VESA FPMPMI
Regulation Certifications &
Approval Compliance
VESA
Power Power Source
Consumption
Temperature Operation
Storage
Dimensions Net (W x H x D)
Packing (W x H x D)
Weight Net Weight
Gross Weight
Packing 1 Pallet
20' Container
40' Container
All specifications are subject to change without prior notice
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
TFT LCD
22.0" (559mm)
+
WSXGA 1680 x 1050
0.282mm
300cd/m 2 (Typical)
900:1 (Typical)
170°/160° (Typical)
16.7M
5ms (GTG)
H: 24kHz – 83kHz
V: 50Hz - 76Hz
160MHZ
30,000hrs (Minimum)
15-Pin D-Sub
24-Pin DVI-D
BNC Connector
RGB H.V Sync
TMDS
BNC Connector
3.0mm (0.18")
<1%
>96%
>6H (MOH's Rating)
0° ~ +20°
Yes (100mm)
FCC-B, UL/CUL, NOM, CB,
CE, TUV/Baurt, BSMI,
NORDIC, GOST, WEEE,
RoHS,
DDC 1/2B, DDC-CI
100 - 240V, 50 - 60Hz
<48W (On)
<1W (Off)
0°C ~ 40°C
-20°C ~ 60°C
512 x 392 x 155 mm
(20.2" x 15.4" x 6.1")
586 x 508 x 195 mm
(23.1" x 20.0" x 7.7")
6.9kg (15.2 lbs)
10.5kg (23.1 lbs)
40 Sets
400 Sets
840 Sets
www.agneovo.com
Copyright © 2007 AG Neovo. All rights reserved.
P/C: RXW200_RXW201 Version 1.1, 20071031
