Summary of Contents for AG Neovo K-19

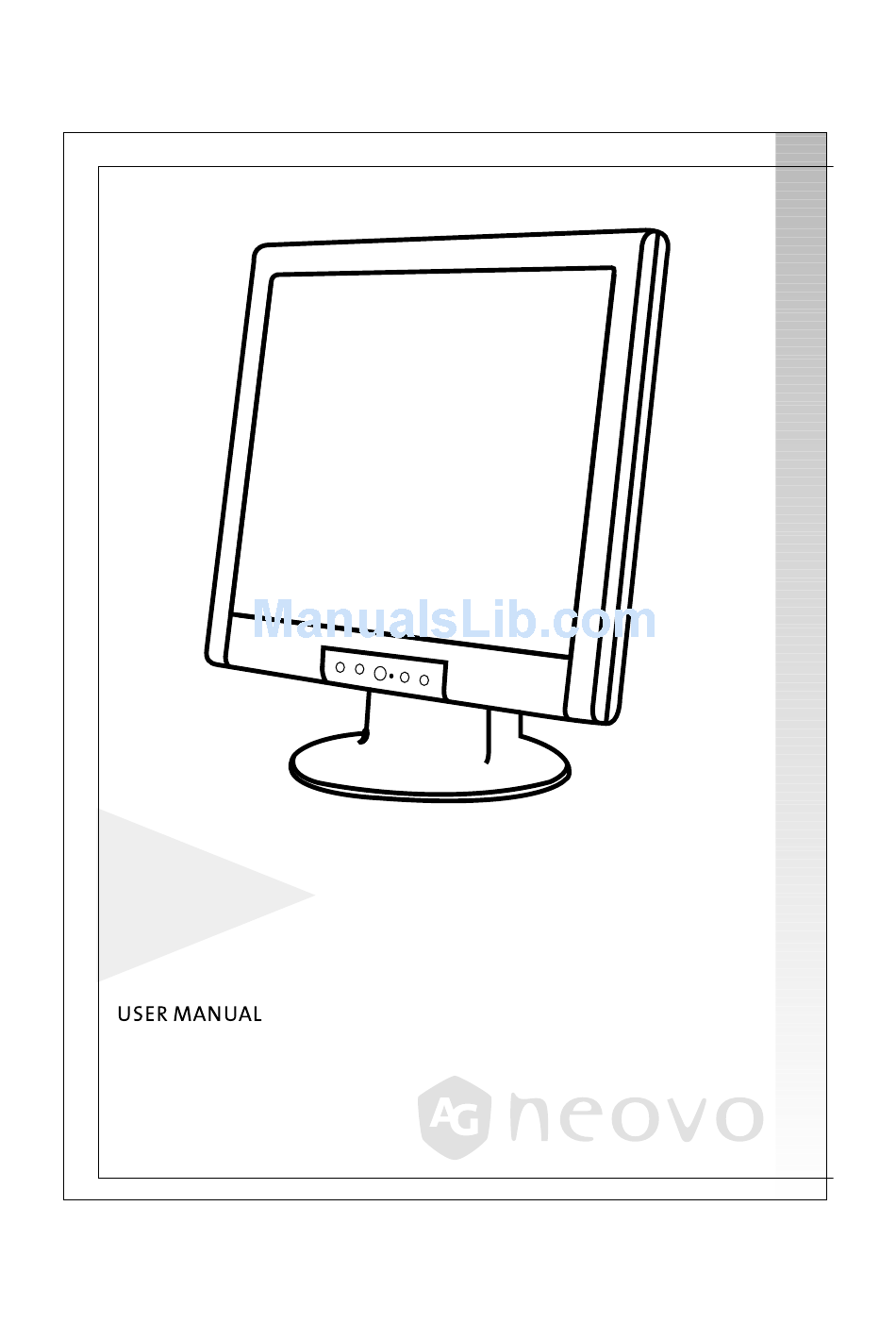

  • Page 1 K-19 19" TFT LCD PANEL...

  • Page 2: Table Of Contents

    Table of Contents Preface... 1 Chapter 1 Installation ... 2 Unpacking...2 Viewing Angle Adjustment...2 Detaching LCD Monitor from Its Stand ...2 Interface for Arm Applications...3 Cable Installation...3 Connecting the Display to your Computer ...3 Connecting the AC Power...3 Setting Up the LCD Monitor ...4 Power Management System...4 Chapter 2 Display Controls...

  • Page 3: Chapter 1 Installation

    Important Safety Instructions Please read the following instructions carefully. This manual should be retained for future use. 1. To clean LCD Monitor screen; -- Power off LCD Monitor and unplug the AC Cord. -- Spray a non-solvent cleaning solution onto a rag. -- Gently clean the screen with dampened rag.

  • Page 4: Interface For Arm Applications

    Interface for Arm Applications Before installing to mounting device, please refer to Fig.1-2. The rear of this LCD display has four integrated 4 mm, 0.7 pitches threaded nuts, as well as four 5 mm access holes in the plastic covering as illustrated in Figure 1-3. These specifications meet the VESA Flat Panel Monitor Physical Mounting Interface Standard (paragraphs 2.1 and 2.1.3, version 1, dated 13 November 1997).

  • Page 5: Setting Up The Lcd Monitor

    Setting Up the LCD Monitor Turn on the LCD monitor’s hard power switch, located on the back of the monitor (See Fig. 1-7) Turn on the LCD Monitor's soft power switch, located on the bezel of the monitor. Power Management System This LCD Monitor complies with the VESA DPMS (version 1.0) Power Management guidelines.

  • Page 6: Function Description

    Function Description Icon Function 101 scales of brightness are available to choose from (0 to 100). Brightness Contrast 101 scales of contrast are available to choose from (0 to 100). H. Position This function let's you adjust the display's horizontal position V.

  • Page 7: Chapter 3 Technical Information

    Chapter 3 Technical Information Specifications LCD Panel Fujitsu Size 19" (48 cm) Display Type Active matrix color TFT LCD Resolution 1280 x 1024 Display Dot 1280 x (RGB) x 1024 Display Area (mm) 376.32 x 301.056 (H x V) Display Color 16.7M Brightness 250 cd/m...
  • Page 8 Separate TTL compatible horizontal and vertical synchronization Signal Digital TMDS Polarity Positive and negative Plug & Play Supports VESA DDC1 and DDC2B functions External Connection Power Input (AC input) +12VDC / 5A min. input through AC/DC adapter Video Cable 1.8M with 15-pin D-sub connector, 1.8M with 24-pin DVI-D Environment Temperature Operating Condition:...

  • Page 9: Standard Timing Table

    Standard Timing Table If the selected timing is NOT included in table below, this LCD monitor will use the most suitable available timing. H. Freq. V. Freq. Resolution (KHz) (Hz) 640 x 350 31.469 70.087 640 x 400 24.830 56.420 640 x 400 31.469 70.087...
