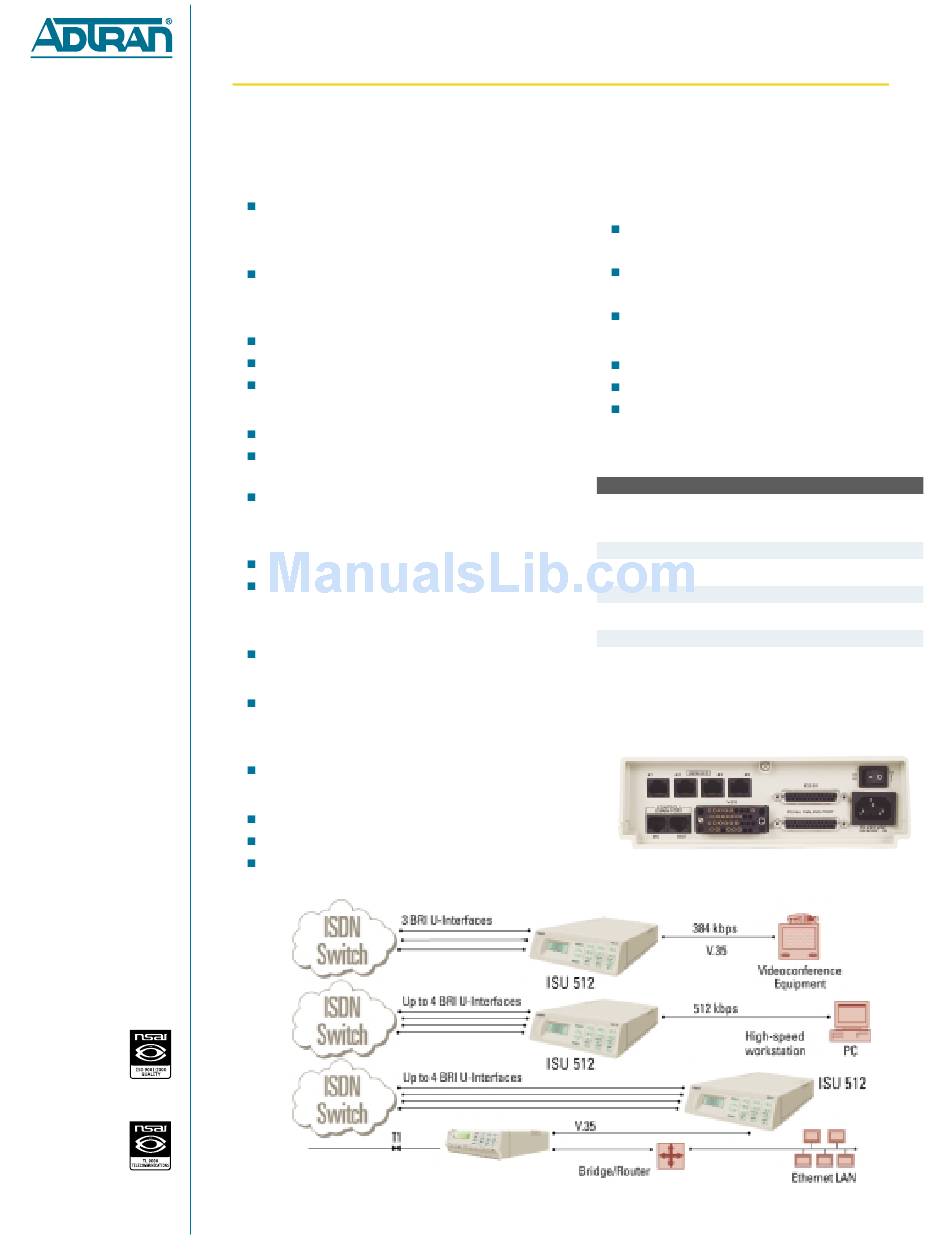

ISU 512
512 kbps ISDN Inverse Multiplexer
Product Specifications
Network Interface
Four RJ-45s for ISDN 2B1Q Basic Rate U-Interface
or S/T Interface

DTE Interface

RS-530 or V.35 (both connectors present)
(RS-530 to V.35 adapter cable available)
Dialing Selections
Manual or automatic stored number dialing
In-Band DTE Dialing: V.25 bis, AT commands
DTR assertion
Dial Interface
RS-366 Data Rates (DTE)
56 kbps to 512 kbps synchronous
Data Rates (Network)
Up to four BRI's (Maximum of eight
56/64 kbps B channels)
Protocols
Clear Channel, BONDING Mode 1 Interoperability
BONDING-compatible inverse multiplexers,
Switched 56 DSUs, ISDN TAs, ISUs
Switch Compatibility
National ISDN-1, Lucent 5ESS, NTI DMS-100, NEC
Diagnostic and Testing
Local and remote loopbacks, V.54 loopback,
2047 pattern, Remote configuration
Display
Two-line x 16-character LCD
Environmental
Operating Temperature: 0° to 50°C, 32° to 122°F
Storage Temperature: -20° to 70°C, -4° to 158°F
Relative Humidity: Up to 95%, non-condensing
Specifications subject to change without notice. 5ESS is a registered trademark of Lucent, DMS-100 is a trademark of Northern
Telecom. ISU and ISU 512 are trademarks of ADTRAN, Inc. ADTRAN is a registered trademark of ADTRAN, Inc. All other registered
trademarks and trademarks mentioned in this publication are the property of their respective owners.
Physical
Dimensions
2.5" H, 7.875" W, 10.5" D
Weight
3 lbs
Power
115 VAC, 60 Hz, 8 watts maximum dissipation
Product Includes
ISU 512
Four 7-foot RJ45 telephone cables
User manual

Ordering Information

Equipment
ISDN Ordering Codes are available to aid in ordering
ISDN lines for this product
ISU 512
ISU 512 S/T
RS-530 to V.35 cable*
RS-366 Y cable*
ISU 512 with RE-530 and RS-366 Y cables*
ISU 512 S/T with RE-530 and RS-366 Y cables* 4202086L3
* For 112/128 kbps dual port videoconferencing
applications these cables may be necessary
Part #
1202086L1
1202086L3
1200072L1
1200120L1
4202086L1
