Product Specifications; Network Interfaces; Link Aggregation - ADTRAN NetVanta 1224R Specifications

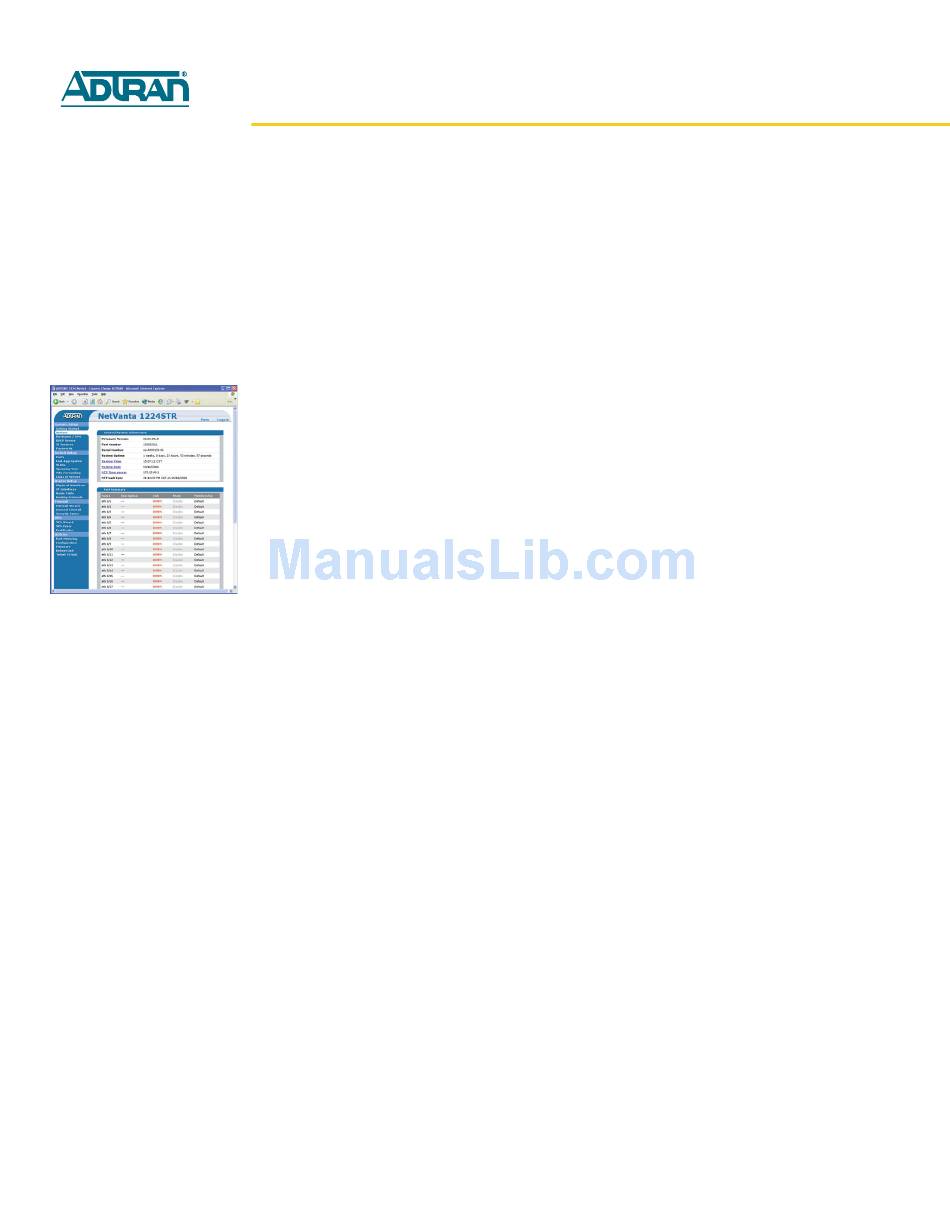

NetVanta 1224STR Web-GUI
NetVanta 1224R PoE/1224STR PoE
All-in-One Network Access with Power of Ethernet: Modular WAN
interface, Firewall, Ethernet Switch, IP Router, and Optional VPN

Product Specifications

Network Interfaces

NIM (Network Interface Modules)
56/64K E1/FE1
■ ■
T1/FT1 E1/FE1 with G.703
■ ■
Dual T1 SHDSL
■ ■
T1/FT1 with DSX-1 Serial (V.35, X.21/V.11)
■ ■
ADSL
■
DIM (Dial Backup Interface Modules)
Analog Modem ISDN BRI 'U' and 'ST'
■ ■
24 Fast Ethernet Ports
10/100Base-T Auto-duplex
■ ■
Auto-rate Auto-MDI/MDI-X
■ ■
Gigabit Ethernet Port (1224STR PoE)
Two combo Gigabit Ethernet port
■
supporting both 10/100/1000Base-T
and SFP for copper or optical connectivity
Auto-duplex
■
Auto-rate
■
Auto-MDI/MDI-X
■
Console Port
DB-9
■
Switching Performance
Non-blocking
■
8,000 MAC Addresses
■
16-MB memory shared by all ports
■
Maximum Forwarding Bandwidth
1224R PoE: 4.8 Gbps
■
1224STR PoE: 8.8 Gbps
■
Routing Performance
133 MHz Motorola MPC 866
■
16 MB Flash
■
Status LEDs
Power
■
WAN: Link, Activity, Alarm, Test
■
DBU: Link, In DBU, Alarm, Test
■
Ethernet Port Status: Link, Activity, PoE Status
■
Protocols
eBGP/iBGP
■
OSPF
■
RIP (v1 and v2)
■
PIM Sparse Mode
■
Demand Routing
■
Policy-based Routing
■
GRE
■
ATM (ADSL)
■
Frame Relay
■
Multilink Frame Relay
■
Layer 3 Backup
■
DHCP
Client, Server and Relay
■
Spanning Tree Support
802.1D Spanning Tree
■
Frame Relay
Point-to-Point
■
RFC 1490 Encapsulation (Multiprotocol Over Frame Relay)
■
LMI Types: LMI, CCITT (Annex A), ANSI (Annex D), Static
■
VLAN Support
Port based VLANs
■
802.1Q tagged trunked VLANs
■
Support for up to 255 active VLANs
■
Inter-VLAN routing
■
GARP VLAN Registration Protocol (GVRP)
■
Power over Ethernet
802.3af (15.4 watts/port)
■
Power provided over Ethernet data leads
■

Link Aggregation

802.3ad Link Aggregation
■
Support for six trunk groups
■
Trunk groups consist of up to eight access ports
■
Class of Service (LAN Traffic)
Enforces 802.1p priorities
■
Four output queues per egress port
■
Weighted Round Robin
■
Quality of Service (WAN Traffic)
Low Latency Queuing
■
Weighted Fair Queuing (WFQ)
■
Class-based WFQ
■
DiffServ aware/mark
■
Frame Relay Fragmentation (FRF.12)
■
32 MB DRAM
■
Security
30,000 PPS
■
Firewall
Stateful Inspection Firewall
■
Denial of Service (DoS) Protection
■
Access Control Lists (ACLs)
■
Application Level Gateways (ALGs)
■
Optional Virtual Private Network (VPN)
PPP
■
IPSec Tunnel Mode: 500 Tunnels
■
Multilink PPP
■
Encryption: DES, 3DES, and AES
■
PPPoE
■
Diffie Hellman Group Support:
■
PPPoA
■
❏
IGMP v2
■
❏
RFC 1483
■
Hash Algorithms: MD5-HMAC and SHA1-HMAC
■
HDLC
■
Authentication Mechanisms:
■
PPP Dial Backup
■
XAUTH, X.509 Digital Certificates, Preshared Keys,
PAP and CHAP
■
Secure ID, DSS Signature
Multihoming
■
802.1w Rapid Spanning Tree
■
370 total watts
■
DiffServ
■
Strict Priority Queuing
■
Group 1: MODP 768
Group 2: MODP1024
