About this document

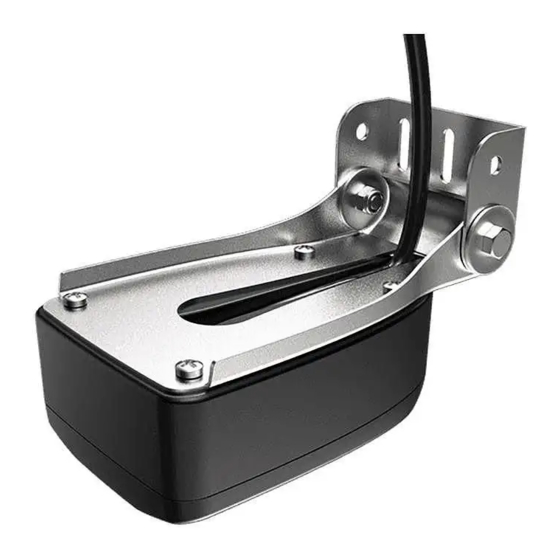

This document describes the main features and setup of the LiveSight transducer.
As the transducer can be used with different display units, this document may not
cover product specific key references. Use your display unit's documentation in
addition to this quick guide to fully understand how to use and adjust the LiveSight
image.
Installation
Mounting
The LiveSight transducer can be mounted in a front facing or in a down-facing
position. The mounting decides the operational mode.
•
Forward looking mode
•
Down looking mode
Offset angle adjustment, forward looking mounted transducers
The brackets only allow the transducer to be mounted at one set angle to the
trolling motor arm.
The best mounting angle for the transducer is obtained when the trolling motor arm
is perpendicular to the waterline. If the trolling motor arm is not perpendicular to
the waterline, the offset angle option in the LiveSight Installation dialog can be used
to fine-tune the transducer angle.
Refer to your system's installation manual for information about how to access the
settings dialogs.
LiveSight
Quick Guide
Mounted to the trolling motor
shaft
Mounted to the transom, below
the trolling motor or thru-hull
mounted
LiveSight | Quick Guide
EN
| 1
Advertisement
Table of Contents
Related Manuals for Simrad LiveSight 000-14458-001
Summary of Contents for Simrad LiveSight 000-14458-001
- Page 1 LiveSight Quick Guide About this document This document describes the main features and setup of the LiveSight transducer. As the transducer can be used with different display units, this document may not cover product specific key references. Use your display unit’s documentation in addition to this quick guide to fully understand how to use and adjust the LiveSight image.
- Page 2 Wiring Display units with built-in LiveSight support connect directly to the LiveSight transducer. Other units that support LiveSight must be connected by using a PSI-1 unit. Refer to the installation guide included with the PSI-1 unit. Startup wizard At first start-up or after a reset, the display will recognize if an un-configured LiveSight transducer is connected to the unit.
- Page 3 Operation Selecting User mode The system has two built-in User modes: • Auto mode including predefined image settings that fit most users • Custom mode expands the main menu to allow for user specific image settings You toggle between the modes by selecting the Mode option in the main menu. The menu The menu options depend on selected User mode.
- Page 4 Main menu, Custom User mode Cross range Determine the distance that is visible on the image. ¼ Note: This option is only available with LiveSight forward. Down range Determines the water depth that is visible on the image. Sensitivity Controls the level of details on the screen. Too much detail clutters the screen.
