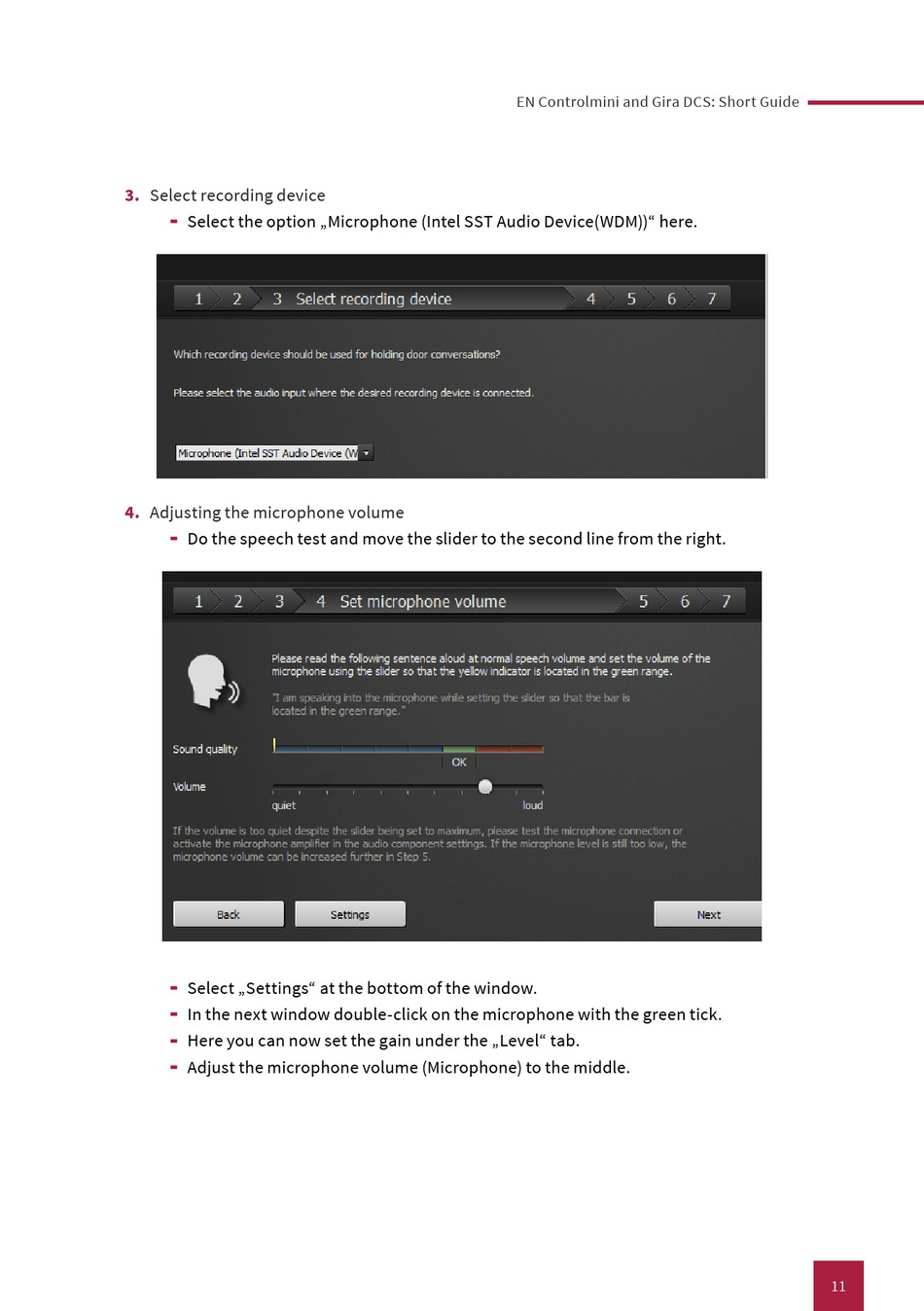

PEAKnx Controlmini Short Manual page 11

3. Select recording device
ж
Select the option „Microphone (Intel SST Audio Device(WDM))" here.
4. Adjusting the microphone volume
ж
Do the speech test and move the slider to the second line from the right.
ж
Select „Settings" at the bottom of the window.
ж
In the next window double-click on the microphone with the green tick.
ж
Here you can now set the gain under the „Level" tab.
ж
Adjust the microphone volume (Microphone) to the middle.
EN Controlmini and Gira DCS: Short Guide
11
