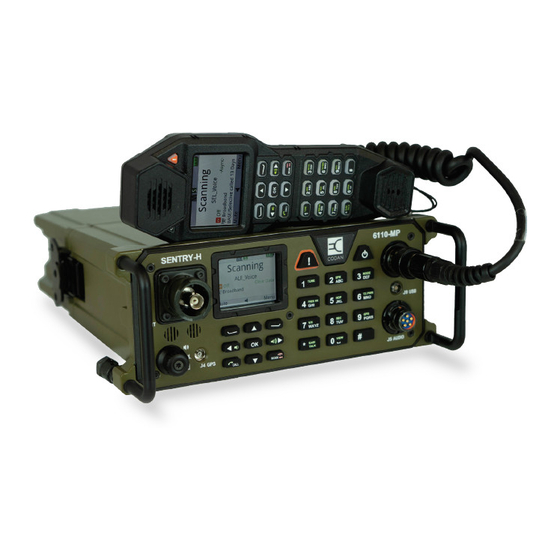

Codan SENTRY-H 6110-MP Quick Reference Card

Basics
Rx/Tx level Tx power
indicator setting
Rx/Tx indicator
channel name
status areas
left
software key
volume/speaker mode indicator
Fixed channel operation
To operate on a fixed channel:
☐
Go to the channel screen, stop scanning, then select a
channel.
☐
Press PTT to tune the antenna, if required.
Discreet mode switch
Calling
Call Types
Selective
Message
Send Position
Get Position
ALE Sounding
Voice Message
TOD Broadcast
© Codan Limited 2019
Quick Reference Card
call type mute type indicator
indicator (highlighted when mute is on)
Tx/Rx frequency
menu bar
right
software key
Discreet mode o
Discreet mode on
(No audio or backlight)
Pull, then rotate right to
zeroise transceiver
Get Status
Channel Test
Phone
Alert
SMS
TOD Request
Keys
battery level
indicator
missed call icon
mode indicator
Press
Hold
Making a Station Call
To make a call using one of your pre-defined stations:
☐
Go to the channel screen, then hold CALL or press Key 0.
Stations
Single call
available for
station
☐
Scroll to the station that you want to call.
☐
If there are multiple calls available for the station,
press
☐
Press CALL.
☐ Respond to any prompts, then press CALL.
Volume down/up
(when
Select channel
Scroll left/up/down/right
Menu/action
Selection
Start call
(for 2 sec) Go to Stations list
End call, start/stop scan
Mute on/off
Manual tune screen
Next speaker mode
Next Digital Voice Rate
Free tune receive
Set transmit power level
Select mute type
Toggle between Analogue and
Secure/DV
Go to GPS screen
Toggle Channel/Station screens
Go to Adjust Display Brightness
screen
Function Select:
FUNC 2
Self Tests Screen/Macros Screen
Stations
or CALL, then scroll to the desired call type.
Single call
available for
station
is present)
Call history
Multiple calls
available for
station
06-03050-EN Issue 1
