Buffalo Tools Sportsman GEN7500DF Step-By-Step Manual

Follow This Step-By-Step
Guide To Using Your Generator
1
Remove generator from package
2
Add Oil
3
Connect Fuel
4
Start Generator
Use the generator OUTDOORS in a WELL VENTILATED AREA.
DO NOT CONNECT electrical devices until AFTER the generator
is started.
If using LPG, turn Fuel Switch ON Propane Tank.
If using Gasoline, turn Fuel Petcock ON. (Figure B)
Adjust the CHOKE to CLOSED position (Figure C)
Start the generator manually with the Recoil (Pull) Start. To use
the Electric Start, a battery must be purchased (sold separately).
Once the engine has started and runs for about a minute, move
the choke lever approximately half way towards the "Open/Run"
position. Wait an additional 30 seconds and then move the choke
lever completely over to the "Open/Run" position.
You can now connect electrical devices.
O
LP Gas Inlet
(Figure A)
Choke (Figure C)
Choke Closed
Choke Open
TOLL-FREE NATIONWIDE HELP LINE! 866-460-9436
Need Help? Do Not Return This Generator To The Store! Call Us First!
Visit our website for Troubleshooting & Frequently Asked Questions
Oil Type: SAE10W-30 Oil (Must add BEFORE first use)
Oil Capacity: 25 fluid oz (1.13 L)
Because this generator includes Low Oil Shut Off, the
generator will not start with low oil)
Choose either LPG or Gasoline fuel. If using
LPG, connect regulator that was included
with the generator first to Propane Fuel Tank
then to Gas Inlet. (Fig A) (O-Ring should be
attached to Gas Inlet.) If using gasoline, add
Unleaded gasoline only octane rating of 87 or
higher. Maximum Capacity: 7 Gallons
4
Recoil
Start
Gas Fuel Petcock
(Figure B)
Fuel On
Fuel O
Monday-Friday 8:00-4:30 Central Time
www.sportsmanseriesbrand.com/generators

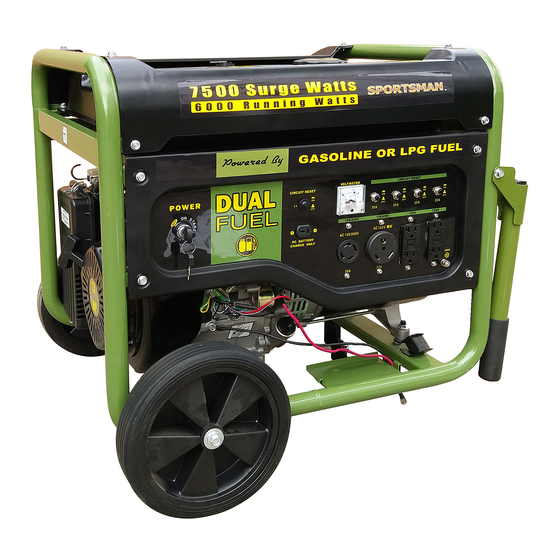

GEN7500DF
7,500 Surge / 6,000 Running Watts
DUAL FUEL GASOLINE OR PROPANE
A BATTERY IS NOT INCLUDED! TO USE
THE ELECTRIC START FEATURE, BUY A
BATTERY WITH THESE SPECIFICATIONS:
Dimensions: 151 mm x 99 mm x 98 mm
(
6" L x 3.8" H x 3.8" W)
CCA (Cold Cranking Amps): 130 Min CCA
Comparable brands/models are:
12 Volt 12 Ah Sealed Lead Acid
Model # UB12120
GENERATOR SPECIFICATIONS:
• 120/240 Volt Operation
• 13 HP Engine, 4 Stroke OHV
• Air Cooled
• Displacement (CC): 389cc
• AVR Automatic Voltage Regulation
• Low Oil Shut Off
• Gasoline Fuel Maximum Capacity: 7 Gallon
• Spark Arrestor
• UL Listed Electrical Components
• Engine Shut Off Switch
• Circuit Breaker & Power Outlets
• 1-12V DC Outlet
• 4-120V Outlets
• 1-120/240V Outlet
• 1-120V RV Outlet
• Complies with EPA emissions
• Run time = 9 hours @ 50% load
• Decibel Rating < 80 db
• Mobility Kit: Included
• Warranty: 1 YEAR limited
2
Add
Oil
Gasoline Fuel Tank
4
Engine
Battery Tray
Start
