Buffalo Tools GEN4000LP Instruction Manual

Buffalo Tools GEN4000LP Instruction Manual

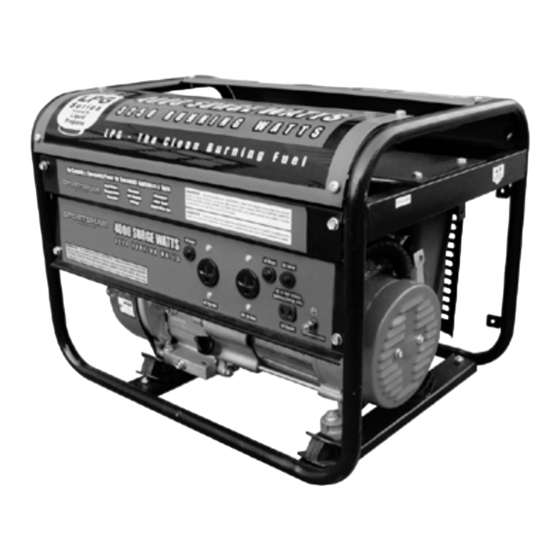

4000 surge watts / 3250 running watts lpg portable generator

Advertisement

Quick Links

4000 Surge Watts / 3250 Running Watts
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time without
prior notice.
IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE,
DO NOT OPERATE THIS PRODUCT!
DO NOT RETURN THIS PRODUCT TO THE RETAILER - CONTACT CUSTOMER SERVICE.
If you experience a problem, have questions or need parts for this product, visit our website
http://www.buffalotools.com or call Customer Service at
8 AM - 4 PM Central Time. A copy of the sales receipt is required.
FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE.
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE
REFERENCE.
SEEK THE ADVISE OF A LICENSED ELECTRICIAN FOR 120V WIRING
GEN4000LP
LPG PORTABLE GENERATOR
INSTRUCTION MANUAL
1-866-460-9436
, Monday-Friday,

Advertisement

Table of Contents
loading

Summary of Contents for Buffalo Tools GEN4000LP

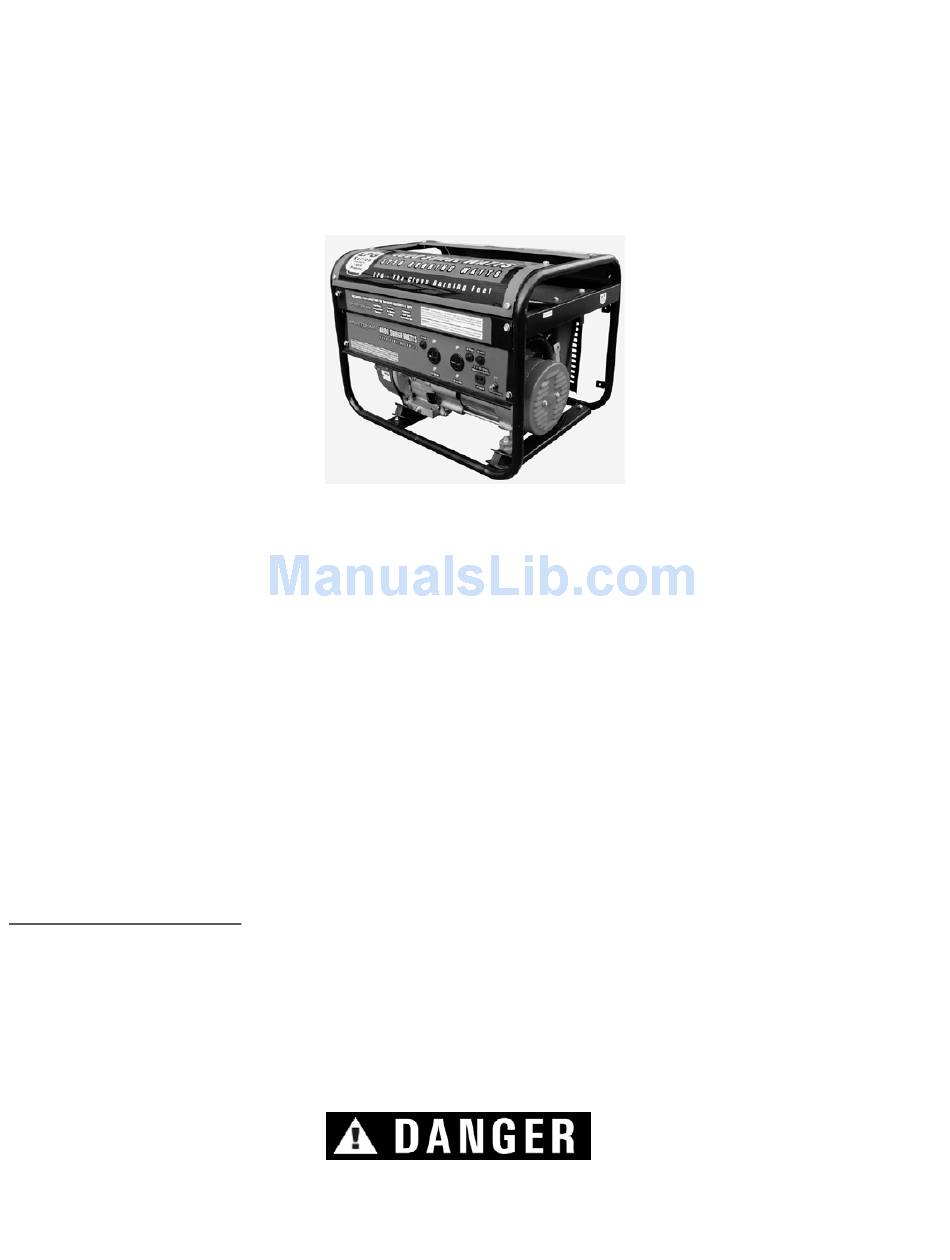

  • Page 1 GEN4000LP 4000 Surge Watts / 3250 Running Watts LPG PORTABLE GENERATOR INSTRUCTION MANUAL READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual. These instructions are not meant to cover every possible condition and situation that may occur.
  • Page 2 This warranty gives you specific legal rights, and you may have other rights that vary from state to state. This warranty gives you specific legal rights, and you may have other rights that vary from state to state. GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 3: Table Of Contents

    Air Filter Maintenance ............................21 Spark Plug Maintenance ............................21 STORAGE/TRANSPORT PROCEDURES ........................21 TROUBLESHOOTING ..............................22 SPECIFICATIONS ................................23 PARTS DIAGRAM ................................24 PARTS LIST ..................................25 GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 4: Recognize Safety Symbols, Words And Labels

    CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage. SEEK THE ADVISE OF A LICENSED ELECTRICIAN FOR 120V WIRING GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 5: Important Safety Instructions

    • Do not use this generator in wet conditions (rain, snow, active sprinkler system, wet hands, etc.). Always keep this generator dry and operate it with dry hands. • Do not touch bare wires or outlets (receptacles). • Do not allow children or non-qualified persons to operate this generator. GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 6 Avoid the use of extension cords if possible. If you choose to use them, be sure they are sized adequately to handle the flow of electricity. An undersized cord can overheat, short out and cause a fire. IMPORTANT: Remove the tightening brackets (fixed under the engine) before operation. GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 7 GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 8 In addition to the previously described safety information, familiarize yourself with all safety and hazard placards on this generator. GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 9 GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 10: Package Contents

    PACKAGE CONTENTS The following items are supplied with this Model GEN4000LP 4000 Surge Watts / 3250 Running Watts Portable LP Generator. Verify that all items are included. STOP! If there are missing items, call 1-866-460-9436, Monday - Friday, 8 AM - 4 PM Central Time for customer service. DO NOT RETURN THIS GENERATOR TO THE RETAILER.
  • Page 11: Components

    GENERATOR COMPONENTS Observe the locations and functions of the various components and controls of this generator. GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 12 To prevent electrical shock from faulty appliances, the generator should be grounded. Connect a length of heavy wire between the ground terminal and the ground source. Consult with a qualified electrician to ensure compliance with local electrical codes. GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 13: Preparing The Generator For Use

    The correct quantity of oil is equal to the oil capacity of the engine crankcase and is 20 fluid oz for this model GEN4000LP 4000 Surge Watts / 3250 Running Watts Portable LP Generator. Add the correct quantity of oil before operating this generator for the first time.
  • Page 14: Step 2 - Connect Fuel

    Disconnect all electrical loads from the generator set before starting the engine. The generator may be hard to start if a load is connected. Step 6 DC OUTPUT no load connected. GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 15: Step 3 - Ground The Generator

    5. Confirm that the oil filler/dipstick cap is properly screwed in place when finished verifying the oil level. NOTE: The oil capacity for this Model GEN4000LP 4000 Surge Watts / 3250 Running Watts Portable LP Generator is 20 oz (US).
  • Page 16: Step 3 - Ground The Generator

    The choke is used to provide an enriched fuel mixture when starting a cold engine. It can be opened and closed by operating the choke rod manually. Pull the rod out toward CLOSED to enrich the mixture for cold starting GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 17: Using The Generator

    Electrical devices running on AC current may be connected according to their wattage requirements. The rated (running) and surge wattage for this Model GEN4000LP 4000 Surge Watts / 3250 Running Watts Portable LP Generator is 3,250 and 4,000, respectively. Model GEN4000 Rated (Running) Wattage...
  • Page 18 Even though this Model GEN4000LP Portable LP Generator has an overall rated wattage of 4000, do not attempt to draw more than 2400 Watts (20 A) from any ONE of the 120 Volt outlets. Draws higher than 2400 Watts (20 A) will damage this generator and void the warranty.
  • Page 19: Dc Usage

    3. Turn off Engine Switch. 4. Turn the fuel valve to the “off” position. Allow this generator to cool down before touching areas that become hot during operation. GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 20: Maintenance/Care

    (see “Changing/Adding Oil” in this section of this manual). 5. Confirm that the oil filler/dipstick cap is properly in place when finished verifying the oil level. GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 21: Changing/Adding Oil

    The oil level in this generator should be checked before each use. (See Figure 10.) When the oil level is low, add oil until the level is sufficient to operate this generator. The oil capacity for this Model GEN4000LP 4000 Surge Watts / 3250 Running Watts Portable LP Generator engine is 20 fluid oz. To drain the oil from this generator: The oil should be changed after the first 20 hours of operation.
  • Page 22: Air Filter Maintenance

    • Do not obstruct any ventilation openings. • Do not drop or strike this generator while moving it. • Store this generator in a cool dry area, free of excessive dust. GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 23: Troubleshooting

    Turn off the generator, then remove the 2 screws at the end of the generator. Look for the burn spots on the back side of the AVR. If there is burn spots, replace the AVR. GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 24: Specifications

    SPECIFICATIONS Model GEN4000LP 4000 Surge Watts / 3250 Running Watts Portable LP Generator Generator Type Brush, Revolving Magnetic Field, Self Exciting, 2-Pole, Single Phase AC Output Rated Wattage (W) 3250 Surge Wattage (W) 4000 Rated Voltage (V) Rated Amperage 20A+20A at 120 V...
  • Page 25: Parts Diagram

    PARTS DIAGRAM GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
  • Page 26: Parts List

    PARTS LIST 201405 GEN4000LP 4000 Surge Watt / 3250 Running Watt Portable LP Generator Manual...
