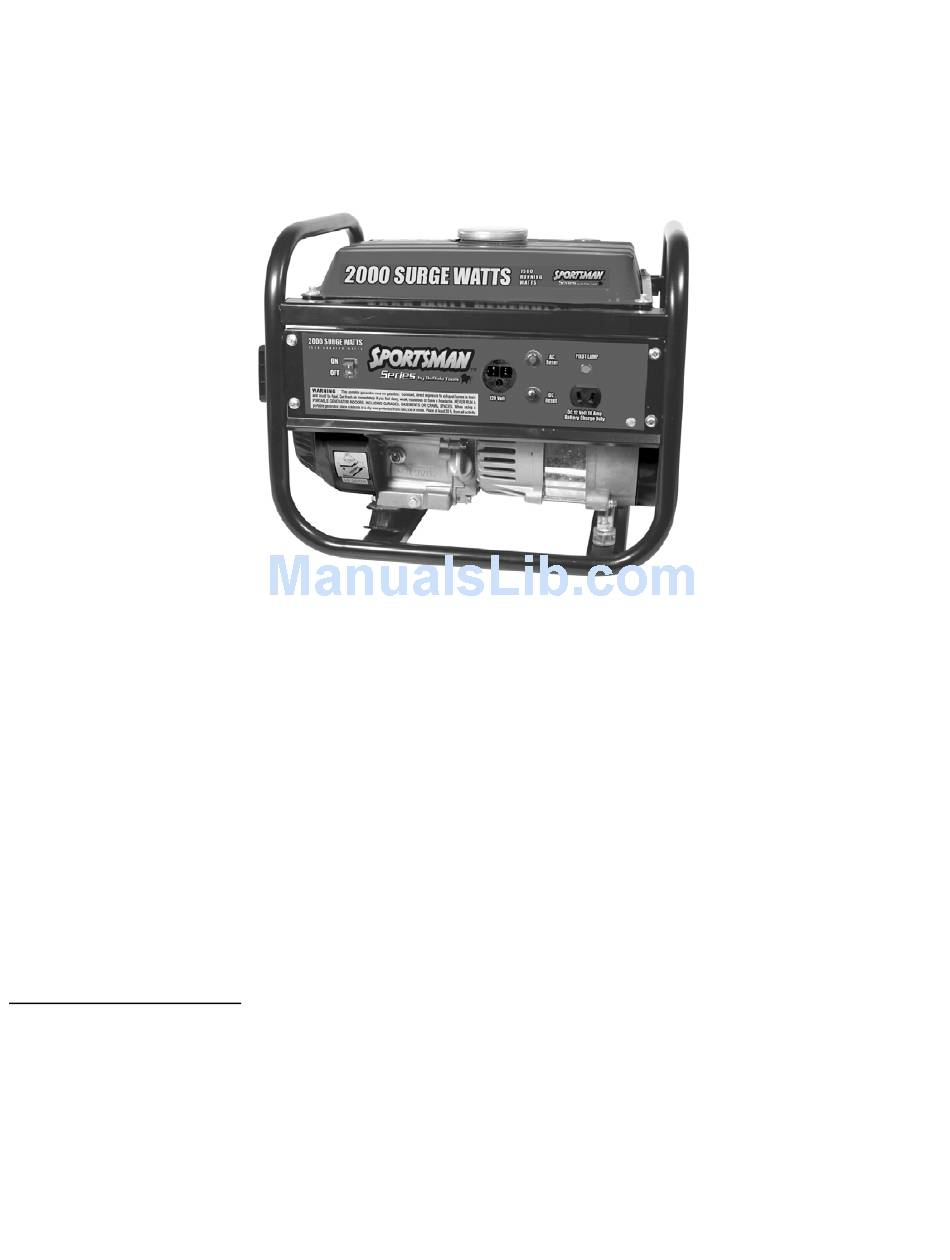

GEN154
2000 Surge Watts / 1500 Running Watts
PORTABLE GENERATOR
INSTRUCTION MANUAL
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time without
prior notice.
IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE,
DO NOT OPERATE THIS PRODUCT!
DO NOT RETURN THIS PRODUCT TO THE RETAILER - CONTACT CUSTOMER SERVICE.
If you experience a problem, have questions or need parts for this product, visit our website
http://www.buffalotools.com or call Customer Service at 1-888-287-6981, Monday-Friday,
8 AM - 4 PM Central Time. A copy of the sales receipt is required.
FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE.
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE
REFERENCE.
Advertisement
Table of Contents
Related Manuals for Buffalo Tools GEN154
Summary of Contents for Buffalo Tools GEN154
- Page 1 GEN154 2000 Surge Watts / 1500 Running Watts PORTABLE GENERATOR INSTRUCTION MANUAL READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual. These instructions are not meant to cover every possible condition and situation that may occur.
- Page 2 GEN154 2000 Surge Watts / 1500 Running Watts Portable Generator FEATURES: • 4-Stroke OHV Engine Recoil Start • 2.4 HP Gasoline Engine • • Automatic Low Oil Shutdown • 1 - 120 Volt A/C Outlet 1 - 12 Volt D/C Outlet •...
-
Page 3: Table Of Contents
STOPPING THE GENERATOR ...18 MAINTENANCE/CARE...18 Recommended Maintenance Schedule ...18 Cleaning The Generator ...18 Checking The Oil Level...19 Changing/Adding Oil...19 Air Filter Maintenance...20 Spark Plug Maintenance...20 Emptying The Fuel Tank...20 STORAGE/TRANSPORT PROCEDURES...21 TROUBLESHOOTING...22 PARTS DIAGRAM ...23 GEN154 2000 Surge Watts/1500 Running Watts Portable Generator... -
Page 4: Recognize Safety Symbols, Words And Labels
Always contact your dealer, distributor, service agent or manufacturer about problems or conditions you do not understand. GEN154 2000 Surge Watts/1500 Running Watts Portable Generator This is the safety alert symbol. It is used to alert you to potential personal injury hazards. -
Page 5: Important Safety Instructions
• Empty the fuel tank before storing or transporting this generator. • Always handle fuel outdoors. • Before transporting, turn the fuel valve to the “OFF” position and disconnect the spark plug. GEN154 2000 Surge Watts/1500 Running Watts Portable Generator... - Page 6 • Do not operate an excessive number of electrical devices in excess of the wattage capacity of this generator. • Do not turn on electrical devices until after they are connected to this generator. • Turn off all connected electrical devices before stopping this generator. GEN154 2000 Surge Watts/1500 Running Watts Portable Generator...
- Page 7 GEN154 2000 Surge Watts/1500 Running Watts Portable Generator...
- Page 8 In addition to the previously described safety information, familiarize yourself with all safety and hazard placards on this generator. GEN154 2000 Surge Watts/1500 Running Watts Portable Generator...
-
Page 9: Package Contents
PACKAGE CONTENTS The following items are supplied with this Model GEN154 2000 Surge Watts / 1500 Running Watts Portable Generator. Verify that all items are included. STOP! If there are missing items, call 1-888-287-6981, Monday - Friday, 8 AM - 4 PM Central Time for customer service. DO NOT RETURN THIS GENERATOR TO THE RETAILER. -
Page 10: Components
6) Carburetor Choke Lever 7) Fuel Cock Ignition Switch 9) DC Circuit Fuse 10) AC Circuit Fuse 11) 120 Volt AC Output Socket 12) 12 Volt DC Output Socket 13) Pilot Lamp GEN154 2000 Surge Watts/1500 Running Watts Portable Generator... -
Page 11: Preparing The Generator For Use
The correct quantity of oil is equal to the oil capacity of the engine crankcase and is 13.5 fluid oz (0.40 L) for this Model GEN154 2000 Surge Watts / 1500 Running Watts Portable Generator. Add the correct quantity of oil before operating this generator for the first time. -
Page 12: Step 2 - Add Gasoline
Grounding codes can vary by location. Contact a local electrician for information on grounding regulations for your area. GEN154 2000 Surge Watts/1500 Running Watts Portable Generator 1.8 / 7 Fresh, Unleaded Gasoline Octane Rating 87 or Higher... -
Page 13: Subsequent Use Of This Generator
Grounding codes can vary by location. Contact a local electrician for information on grounding regulations for your area. GEN154 2000 Surge Watts/1500 Running Watts Portable Generator 1.8 / 7... -
Page 14: Starting The Generator
30 seconds and then move the choke lever completely over to the “open” position. 9. Allow this generator to run for several minutes before connecting any electrical devices. Figure 4 The Recoil Start is located on the left side of the generator. GEN154 2000 Surge Watts/1500 Running Watts Portable Generator... -
Page 15: Using The Generator
Electrical devices running on AC current may be connected according to their wattage requirements. The rated (running) and surge wattage for this Model GEN154 2000 Surge Watts / 1500 Running Watts Portable Generator is 1,500 and 2,000 respectively. Model GEN154 Rated (Running) Wattage Model GEN154 Surge Wattage The rated (running) wattage corresponds to the maximum wattage a generator can output on a continuous basis. - Page 16 4. Turn on the connected electrical devices beginning with the device with the highest rated wattage requirement and then each additional device with the next lower rated wattage requirement. Do not connect 50Hz or 3-phase loads to this generator. GEN154 2000 Surge Watts/1500 Running Watts Portable Generator...
-
Page 17: Dc Usage
• If battery acid is swallowed, drink large quantities of milk and immediately call a physician. Do not secure the generator with a chain or rope, which would prevent it from being moved in an emergency. GEN154 2000 Surge Watts/1500 Running Watts Portable Generator Max. Cord Length (ft) by Wire Gauge... -
Page 18: Stopping The Generator
Never clean this generator with a bucket of water and/or a hose as water can get inside and cause a short circuit or corrosion. Never use gasoline to clean parts of this generator. GEN154 2000 Surge Watts/1500 Running Watts Portable Generator Each Use... -
Page 19: Checking The Oil Level
The oil level in this generator should be checked before each use. (See Figure 9.) When the oil level is low, add oil until the level is sufficient to operate this generator. The oil capacity for this Model GEN154 2000 Surge Watts / 1500 Running Watts Portable Generator engine is 13.5 fluid oz. (0.40 L). To drain the oil from this generator: It is necessary to drain the oil from the crankcase only if it has become contaminated with water and/or dirt. -
Page 20: Air Filter Maintenance
6. Turn the fuel valve to the “off” position. 7. Replace the fuel filter cup. 8. Store the drained gasoline in a suitable place. Do not store gasoline for more than 3 months. GEN154 2000 Surge Watts/1500 Running Watts Portable Generator... -
Page 21: Storage/Transport Procedures
Engine will not start. Engine runs but there is no electrical output. Generator runs but does not support all connected electrical devices. GEN154 2000 Surge Watts/1500 Running Watts Portable Generator Cause Engine switch is set to "off." Fuel valve is turned to "closed."... -
Page 22: Parts Diagram
GEN154 2000 SURGE WATTS / 1500 RUNNING WATTS PORTABLE GENERATOR PARTS DIAGRAM GEN154 2000 Surge Watts/1500 Running Watts Portable Generator... -
Page 23: Parts List
GEN154 2000 SURGE WATTS / 1500 RUNNING WATTS PORTABLE GENERATOR PARTS LIST Part Name Part Number Bolt GB5789 M5*8 Absorber Set GR1000 A-04.00 Control Panel GR1000 A-05.00 Cover Bolt GB5780 M6*90 Spring Washer GB93 6 Washer GB95 6 Bolt GB16674 M6*12... - Page 24 GEN1540809 GEN154 2000 Surge Watts/1500 Running Watts Portable Generator...
