Summary of Contents for FLIR DJI ZENMUSE XT 2
- Page 1 ZENMUSE XT 2 THERMAL BY Quick Start Guide 2018.05 V1.2 0.561.8187 information@itm www. .com...
-
Page 2: Disclaimer And Warning
Disclaimer and Warning Congratulations on purchasing your new DJI product. The information in this document affects your safety and your legal rights and responsibilities. Please read this entire document carefully to ensure proper configuration before use. Failure to read and follow instructions and warnings in this document may result in serious injury to yourself or others, or damage to your DJI product or damage to other objects in the vicinity, or violation of the EU export control law. - Page 3 from and against any and all claims, demands, suits, causes of action, expenses (including reasonable attorneys’ fees), damages, losses, or liabilities of any nature whatsoever, arising from, or allegedly arising from, or related to, your failure to comply with applicable export control laws. Do Not Modify or Alter the Zenmuse XT 2 The Zenmuse XT 2 has been calibrated specifically for the designated camera and lens before leaving the factory.

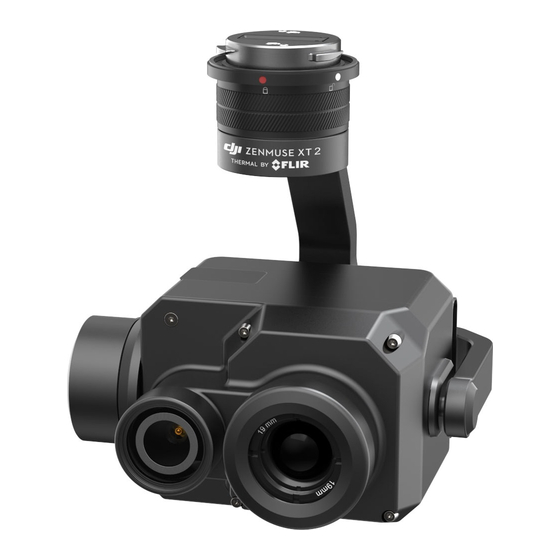

- Page 4 Gimbal and Camera ×1 microSD Card ×2 Zenmuse XT 2 The Zenmuse XT 2 gimbal and camera features the FLIR Longwave Infrared Thermal Camera and a Visual Camera, providing both infrared and visual images simultaneously. The FLIR Longwave Infrared Thermal Camera provides high-sensitivity (<50 mK@f/1.0) infrared scanning at...
-
Page 5: Installation
1. Gimbal Connector 5. Visual Camera 2. Pan Motor 6. Infrared Thermal Camera 3. microSD Slots 7. Roll Motor 4. Tilt Motor Installation 1. Remove the gimbal cap. 2. The following installation display takes the Matrice 200 aircraft as an example. Rotate the gimbal connector to the unlocked position and insert the gimbal, and then rotate the gimbal connector to the locked position. -
Page 6: Camera Controls
Camera Controls Remote Controller Press the right dial to select a Palette. Press the Shutter Button or Record Button to capture photos or record video. Adjust the camera’s tilt using the left dial. 1. Left Dial 2. Record Button 3. Shutter Button 4. -
Page 7: Specifications
Specifications General Name Zenmuse XT 2 25 mm lens: 123.7×112.6×127.1 mm Dimensions Other lens versions: 118.02×111.6×125.5 mm 25 mm lens: 629 g Weight Other lens versions: 588 g Gimbal Angular Vibration Range ±0.01° Mount Detachable Controllable Range Tilt: +30° to -90°, Pan: ±320° Mechanical Range Tilt: +45°... - Page 8 * The SD card, which is located near the lens, is used to store TIFF Sequence and SEQ infrared RAW video only. The other format footage will be stored in the other SD card. ** It is recommended to use ImageJ to play the TIFF Sequence video and Flir Tools to play SEQ video.
