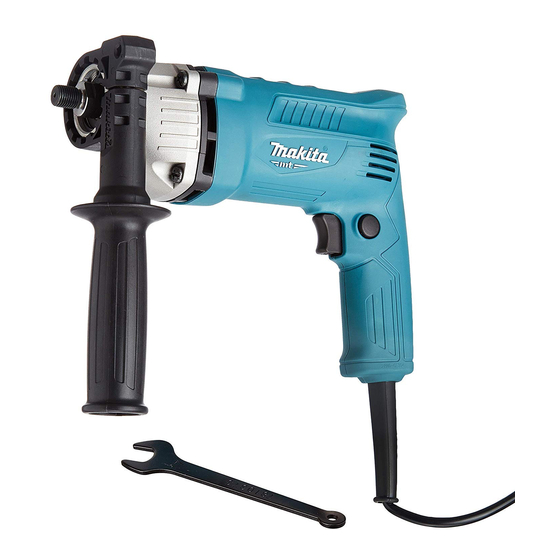

- Page 1 INSTRUCTION MANUAL Drill M6202 DOUBLE INSULATION Read before use.
- Page 2 SPECIFICATIONS Model M6202 Capacities Steel 13 mm Wood 25 mm No load speed (min 2,000 Overall length 283 mm Net weight (without drill chuck / with drill chuck) 1.7 / 2.0 kg Safety class • Due to our continuing program of research and development, the specifications herein are subject to change without notice. • Specifications may differ from country to country.
- Page 3 12. Use personal protective equipment. Always Service wear eye protection. Protective equipment such 25. Have your power tool serviced by a qualified as dust mask, non-skid safety shoes, hard hat, or repair person using only identical replacement hearing protection used for appropriate conditions parts.
- Page 4 FUNCTIONAL DESCRIPTION CAUTION: • Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Switch action ► 1 . Chuck key To install the bit, place it in the chuck as far as it will go. Tighten the chuck by hand. Place the chuck key in each of the three holes and tighten clockwise.
- Page 5 To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be per- formed by Makita Authorized Service Centers, always ► 1 . Hex wrench 2. Tighten using Makita replacement parts. Drill chucks for the spindle thread 1/2" - 20 UNF can be attached.
- Page 8 Makita Corporation 885591-0 20170404 www.makita.com...
