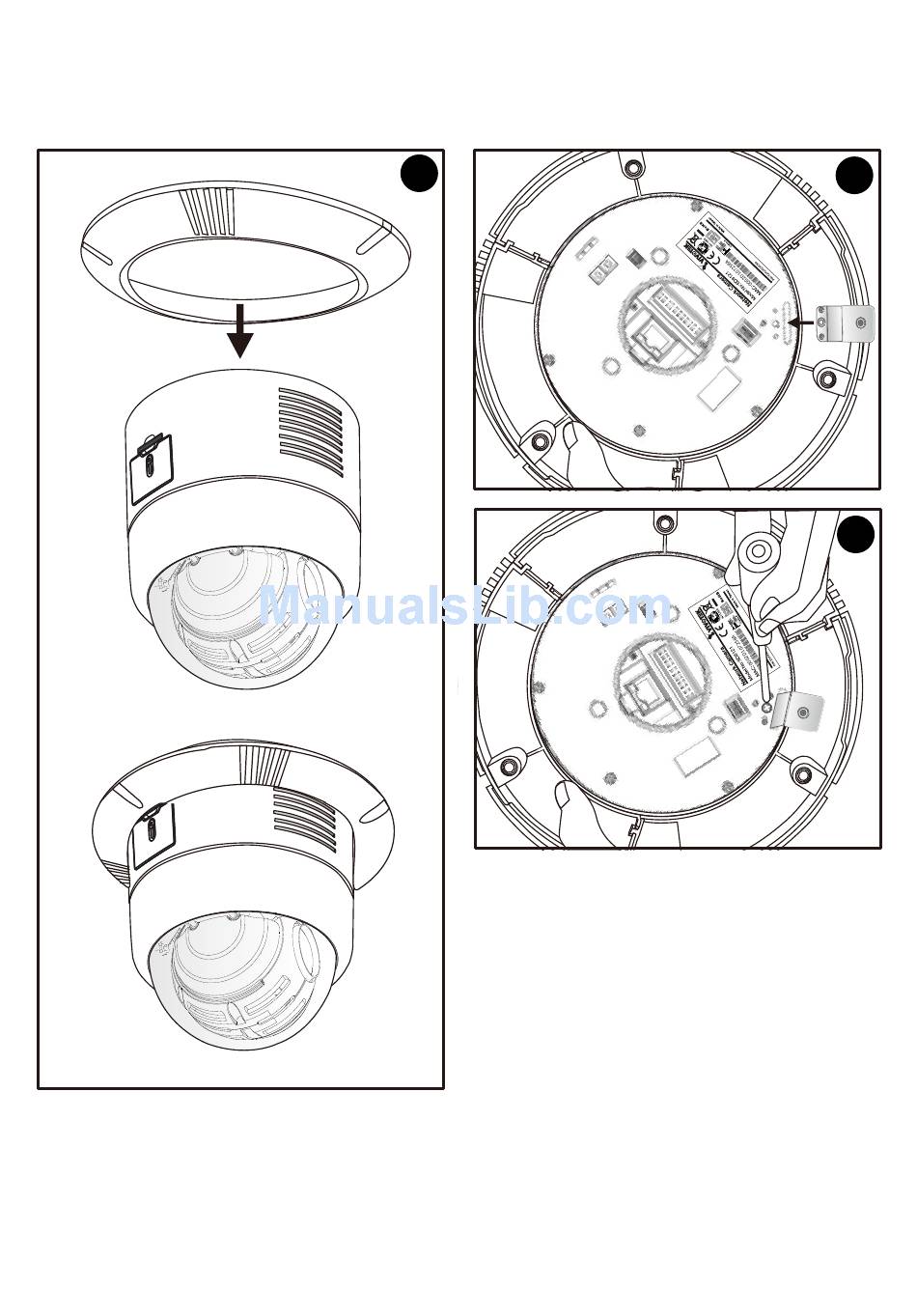

5. Put the decoration ring onto the dome body.

6. Insert the fixing plate into the groove as shown below.

7. Align the three holes to screw the fixing plate to the dome base.

5

6

7

EN - 6
