Summary of Contents for Rinnai FM10NA

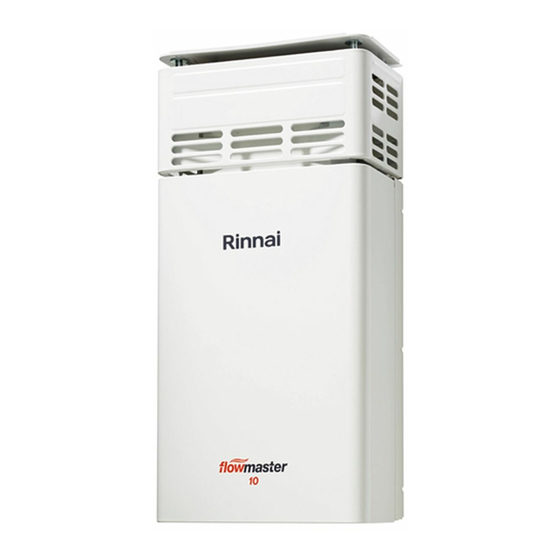

- Page 1 Models: FM10NA FM10LA Gas Instantaneous Water Heater Operation & Installation Manual...
- Page 2 Congratulations on the purchase of your Rinnai Gas Instantaneous Water Heater. We trust you will have many years of comfort and enjoyment from your appliance. BEFORE USING THIS APPLIANCE Before proceeding with the operation or installation read this manual thoroughly and gain a full IMPORTANT understanding of the appliance, to ensure safe and correct use.
-
Page 3: Table Of Contents
Features and Benefits Operation To Operate .................................... 7 Delivery Temperature ................................7 Water Flow and Temperature Adjustment ......................... 8 Freezing Weather ................................. 8 Trouble Shooting Fault Finding ..................................9 Maintenance ..................................9 Installation Table of Contents Contacts Rinnai HW_GI_FM10 OIM... -
Page 4: Warnings & Important Information
It may also be used to alert against unsafe practices. REGULATORY INFORMATION Your Rinnai gas instantaneous water heater has been certified by the Australian Gas Association. WARNING The A.G.A. Certification Number is shown on the data plate. - Page 5 The range of Rinnai gas instantaneous water heaters referred to in this manual are incompatible with solar water heating systems. A dedicated range of solar compatible gas continuous flow water heaters is available from Rinnai.
-
Page 6: Features & Benefits
FEATURES AND BENEFITS FEATURES & BENEFITS Congratulations on purchasing the Rinnai Gas Instantaneous water heater. • The appliance is compact, saving both wall and floor space. • The burner lights automatically when the hot water tap is opened, and goes out when the tap is closed. -
Page 7: Operation
The delivery temperature set point programmed into the electronic ignition and control module is 60°C. The actual delivery temperature may be lower depending on the prevailing operating conditions, for example, low incoming cold water temperatures and high water flow rates. Rinnai HW_GI_FM10 OIM... -
Page 8: Water Flow And Temperature Adjustment
For appliances installed in locations where the temperature falls below 0°C for short periods, the installation of an Anti Freezing Relief Valve (Exogel or equivalent brand) will minimise the possibility of damage to the appliance. This is not supplied with the water heater. Rinnai HW_GI_FM10 OIM... -
Page 9: Trouble Shooting
Service call MAINTENANCE Rinnai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your appliance. If your appliance requires service, please call our National Help Line. Rinnai recommend that the appliance be serviced by an authorised person every 3 years. - Page 10 This page is intentionally blank Rinnai HW_GI_FM10 OIM...
-
Page 11: Installation Table Of Contents
Appliance Mounting Requirements ..........................13 Appliance Mounting Method ............................. 14 Service Connection Points ............................... 14 Flueing Appliance Flue Terminal ..............................15 Commissioning Testing ....................................16 Commissioning Check List ............................... 17 Installation Record ................................17 Specifications Appliance Dimensions Wiring Diagram Contacts Rinnai HW_GI_FM10 OIM... -
Page 12: General Installation Information
Advising the customer of the need for regular servicing (Rinnai recommends servicing every 2 years). Handing these instructions to the customer. APPLICABLE MODELS These Installation Instructions apply only to the Rinnai gas instantaneous water heater models that are listed on the cover page of this manual. UNPACKING THE APPLIANCE... -
Page 13: Water Supply
To meet the temperature hazard protection requirements of AS/NZS 5601, fitting of the provided heat shield is MANDATORY. IMPORTANT Refer to "Appliance Mounting Method" on page 14 for instructions of how to mount both the water heater and the provided heat shield. Rinnai HW_GI_FM10 OIM... -
Page 14: Appliance Mounting Method
Swarf in ½’ to ½’ Regulator inlet pressure test point (supplied) either the gas or water supplies may cause damage or ¾’ to ½’ Regulator inlet pressure test point (supplied) malfunction. These are not covered by warranty. Rinnai HW_GI_FM10 OIM... -
Page 15: Flueing
4 For minimum clearances not addressed above acceptance should be obtained from the Technical Regulator. 5 Minimum clearances d and e also apply to any combustion air intake openings of appliances. FIGURE 6.2 (in part) LOCATION OF FLUE TERMINALS OF BALANCED FLUE, ROOM-SEALED, FAN-ASSISTED OR OUTDOOR APPLIANCES Rinnai HW_GI_FM10 OIM... -
Page 16: Commissioning
This procedure may need to be repeated to ensure the strainer remains clear, especially on new installations Fig. 3. 14. After testing is completed, explain to the householder the functions and operation of the water heater. Fig. 3. Rinnai HW_GI_FM10 OIM... -
Page 17: Commissioning Check List
A commissioning check list is provided on the appliance front cover to enable the installer to step through the correct commissioning procedure when installing a Rinnai water heater. The check list can also assist the installer to identify potential installation errors that may prevent the appliance from operating correctly. -
Page 18: Specifications
R 1/2” BSP FM10 1000 Male Female Male Nominate Gas Heating Inlet Gas Burner TPP Model Gas Type Consumption Capacity at Pressure kPa MJ/h 25°C rise FM10NA 1.13 0.69 76.2 10 L/min FM10LA Propane 2.75 2.38 76.0 Rinnai HW_GI_FM10 OIM... -
Page 19: Appliance Dimensions
APPLIANCE DIMENSIONS Location of upper rear mounting holes Location of lower rear mounting hole Figure 4. Dimensions Rinnai HW_GI_FM10 OIM... -
Page 20: Wiring Diagram
WIRING DIAGRAM MAIN MICROPROCESSOR TEMPERATURE CONTROL MICROPROCESSOR Solenoid Valve 1 Solenoid Valve 2 High Voltage Lead (Ignition) Flame Rod Temperature Overheat Switch (Self-resetting) Modulation Motor Thermistor (Heated water outlet temperature) Micro-switch Figure 5. Dimensions Rinnai HW_GI_FM10 OIM... - Page 21 NOTES Rinnai HW_GI_FM10 OIM...
- Page 22 NOTES Rinnai HW_GI_FM10 OIM...
- Page 23 Rinnai HW_GI_FM10 OIM...
-
Page 24: Contacts
*Cost of a local call higher from mobile or public phones. For further information visit www.rinnai.com.au or email enquiry@rinnai.com.au Rinnai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your Rinnai appliance. If your appliance requires service, please call our National Help Line.
