7
Maintenance
7.1 Battery Replacement (Transmitter)
When the battery symbol appears and flashes on the LCD, replace the bat-
teries as follows:

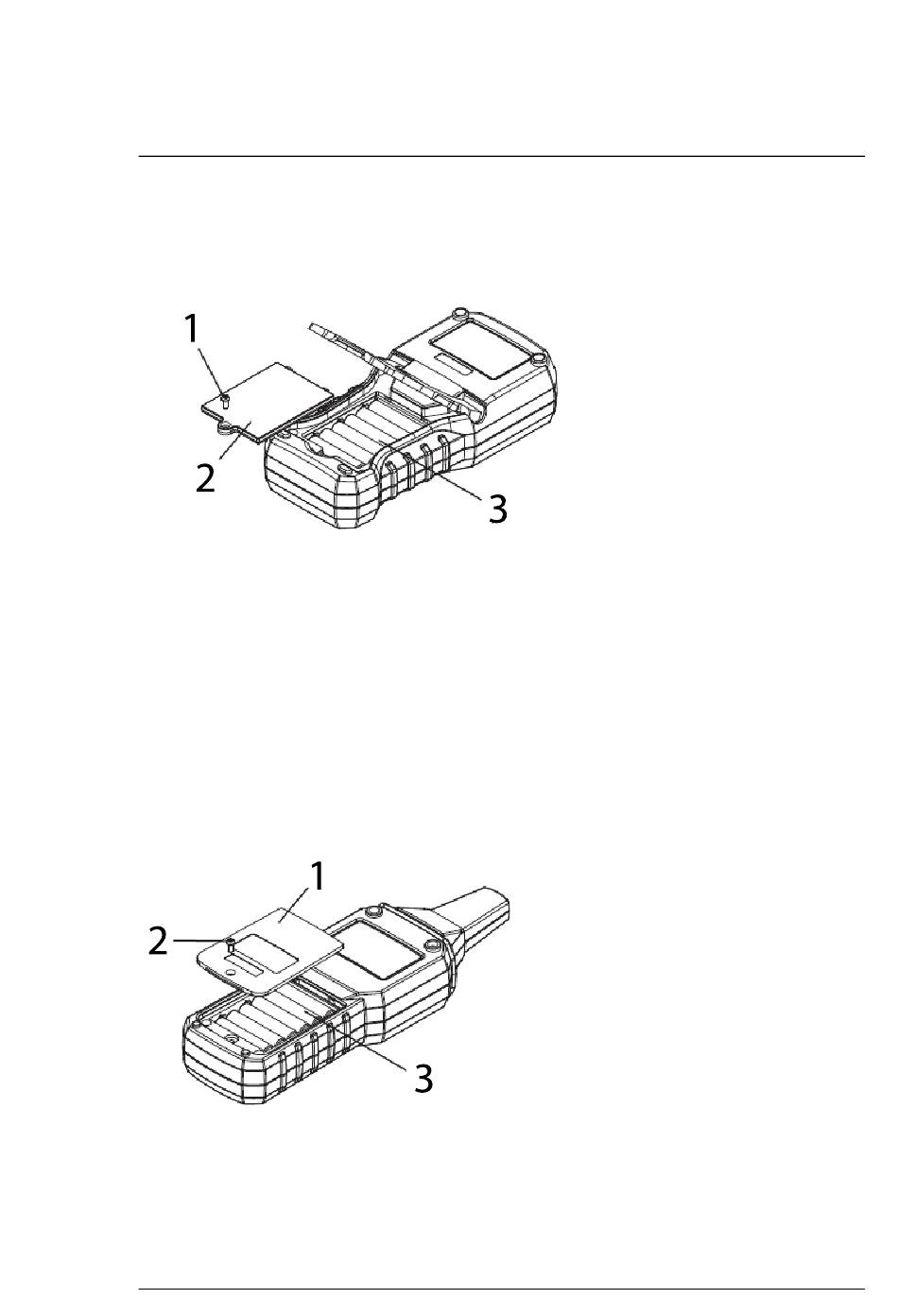

Figure 7.1 Replacing Transmitter Batteries
• Disconnect the test leads from the Transmitter and switch off the Transmit-
ter's power.
• Open the battery compartment by first removing the compartment screw
(1) and then removing the cover (2).
• Replace the batteries (1.5 V AAA x 6) observing correct polarity (3).
• Replace the compartment cover securely before operating the Transmitter.
7.2 Battery Replacement (Receiver)
When the battery symbol appears and flashes on the LCD, replace the bat-
teries as follows:
Figure 7.2 Replacing the Receiver's Batteries
• Switch off the Receiver's power.
#NAS100035; r. AA/71038/71038; en-US
19
