6.2 Two-pole Applications
6.2.1 Tracing Connections

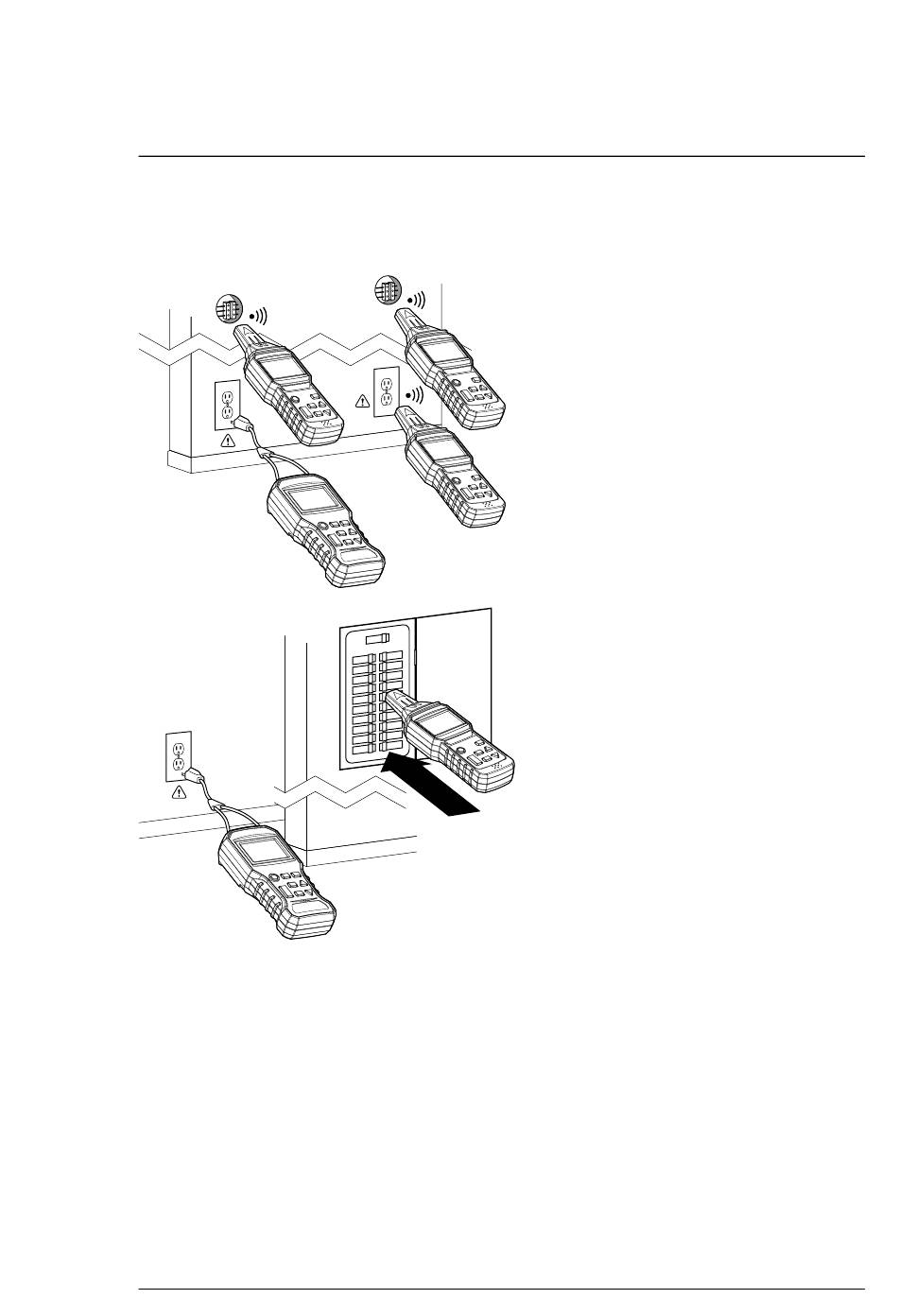

Figure 6.3 Matching connected points in a circuit.
1. Connect the supplied Socket Adaptor to the Transmitter and plug the AC
connector into an AC receptacle.
2. The Transmitter can now measure the voltage of the mains and transmit
the signal through the mains.
3. The Receiver can then trace the mains and determine if the receptacle is
located on the same line, if another receptacle or breaker is connected on
the same circuit'.
#NAS100035; r. AA/71038/71038; en-US
