6
Applications
6.3.5 Using the Ground Spike

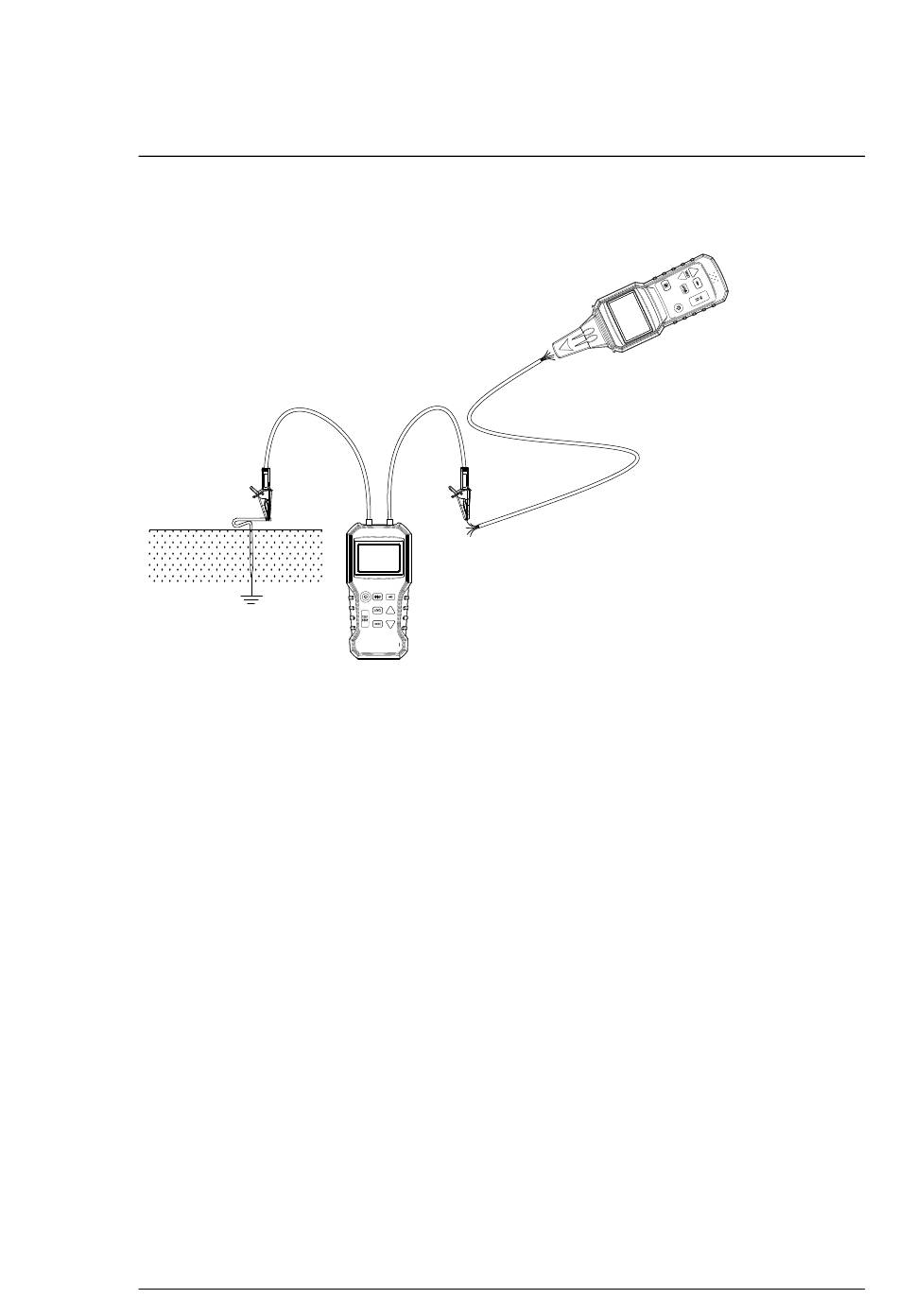

Figure 6.8 Earth Ground Spike
1. Refer to the accompanying diagram.
2. In applications that require an earth ground connection, you can use the
supplied ground rod (spike) for convenience.
3. Carefully drive the supplied rod into the ground at the test area.
4. Connect the test leads and set up the test as shown in the application in-
structions in the accompanying sections.
#NAS100035; r. AA/71038/71038; en-US
TR A N SM I TTER
C AT I I I 450V
18
