Server Load
Balancer — Front
View Detail
1 0B AS E- T/1 0 0 B A SE-TX Por ts

Ports

Console Port

Table 4 Software Features
Feature
Cache Redirection
DoS Protection
Redundant Failover Modes
Management

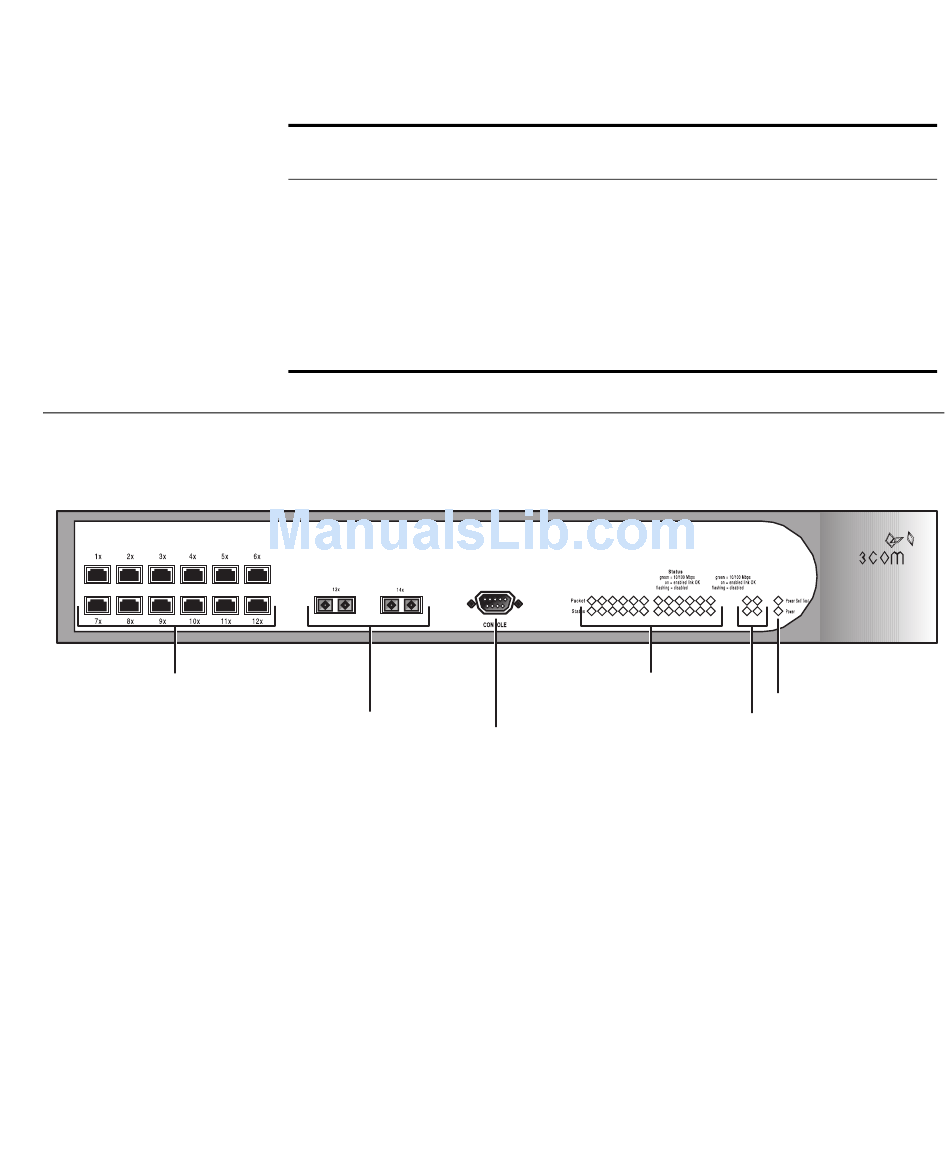

Figure 1 Server Load Balancer — front view
1 0 0 0 BA SE-SX Po r ts
Cons ol e Port
The Server Load Balancer and Server Load Balancer Plus have twelve
dedicated 10BASE-T/100BASE-TX ports and two 1000BASE-SX ports.
The console port allows you to use a terminal or serial PC connector to
access the command line interface (CLI). The CLI allows you to assign the
IP address to the Service Load Balancer and provides basic configuration
capabilities. For console port pin-out information, see Appendix B.
Server Load Balancer — Front View Detail
Server Load Balancer
Server Load Balancer Plus
Transparent mode
I
Proxy mode
I
Supported
Primary/Secondary
I
Active/Active
I
Web interface, command line interface, and
SNMP supported
1 2 3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8 9 10 11 12
10BASE-T/100BASE-TX
Port Status L ED s
1000BA SE-SX
Port Status L EDs
13
13 14
13 14
Pow er Self-Test LE D
Pow er L ED
