2-4 C 2: I
HAPTER NSTALLATION

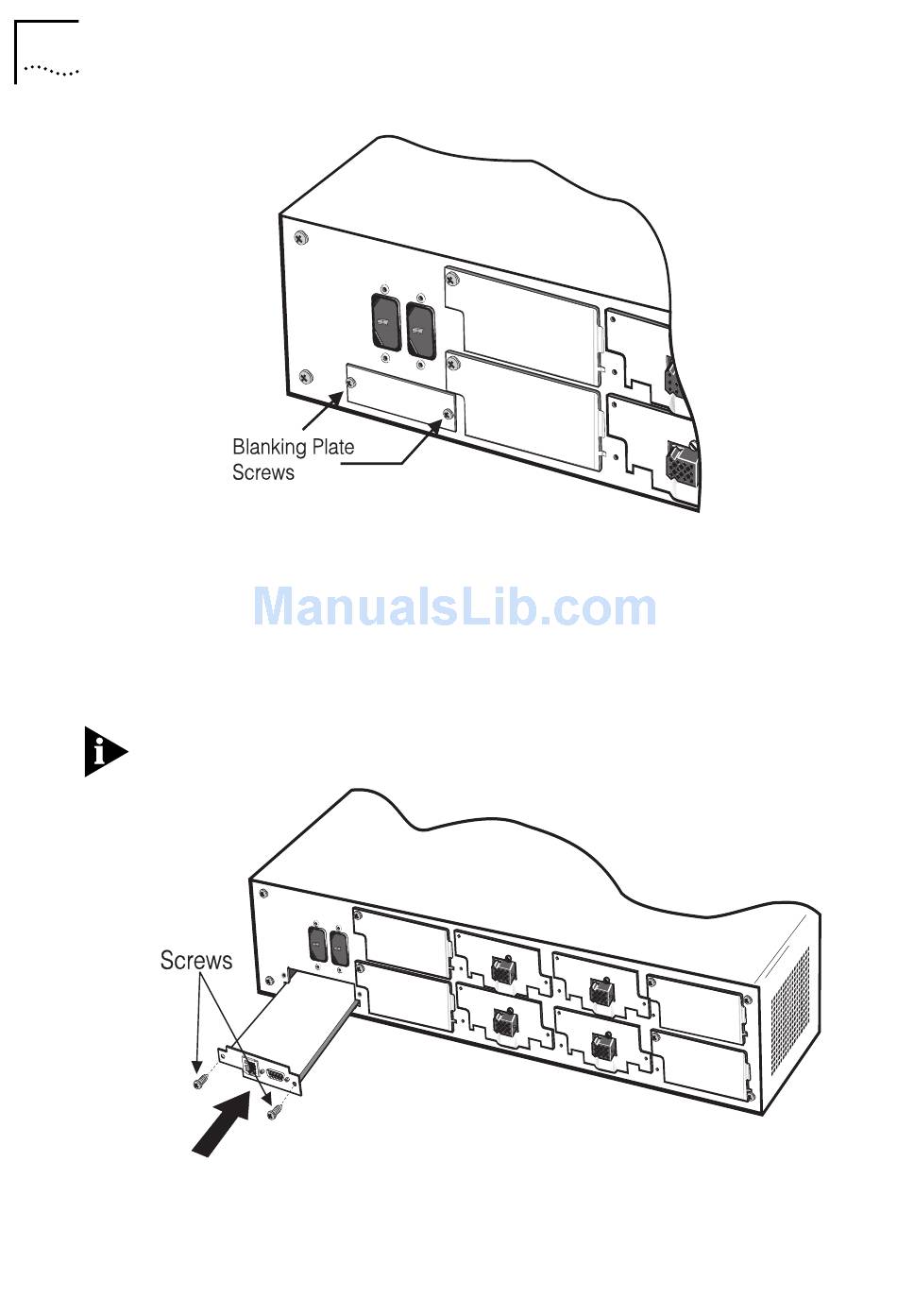

Figure 2-2 Removing the Blanking Plate on Advanced RPS
2 Slide the Management Module into the open slot and secure with
the screws provided.
Make sure the RJ-45 connector is located on the lefthand side
when looking at the rear panel.
Figure 2-3 Sliding the Module into the Advanced RPS
DUA1608-0AAA01
