3Com 3C16075 Installation Manual

3Com 3C16075 Installation Manual

Superstack 3 advanced rps type 3 power module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

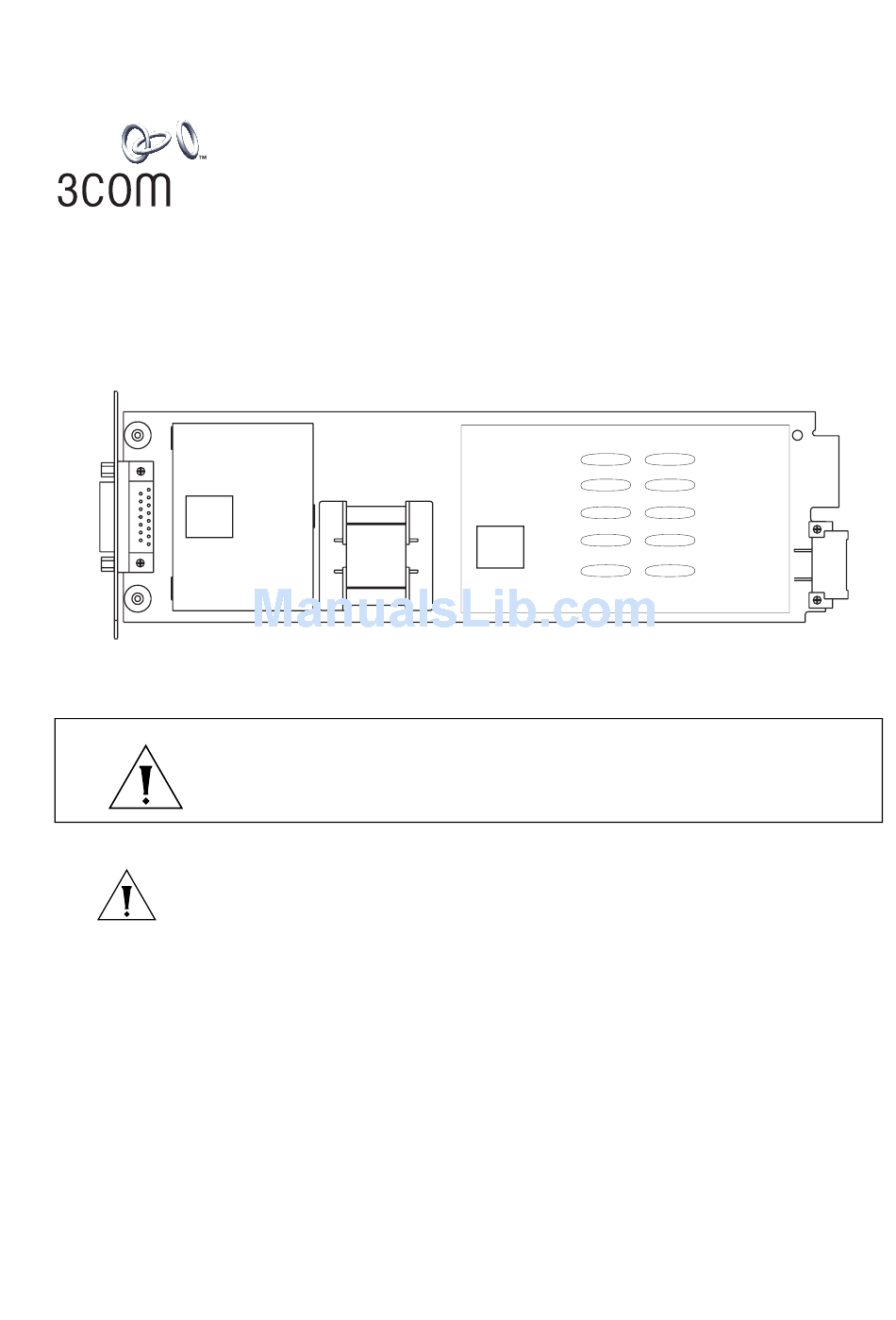

S
UPER
RPS T
(3C16075) I
For installation by suitably qualified
service personnel only.
CAUTION: All installed Type 3 Power Modules must have a DC cable
or a protective cover fitted on completion of installation.
The Type 3 Power Module is a UL listed accessory for use only with
the UL listed Advanced RPS Chassis.
This guide provides all the information you need to install and use a
SuperStack
®
3 Advanced RPS Type 3 Power Module (3C16075).
This guide is intended for use by suitably qualified service personnel
who are responsible for installing and setting up network equipment.
TACK ®
S
3 P
YPE
OWER
NSTALLATION
3 A
DVANCED
M
ODULE
G
UIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3C16075 and is the answer not in the manual?

Questions and answers

Related Manuals for 3Com 3C16075

Summary of Contents for 3Com 3C16075

  • Page 1 This guide provides all the information you need to install and use a SuperStack ® 3 Advanced RPS Type 3 Power Module (3C16075). This guide is intended for use by suitably qualified service personnel who are responsible for installing and setting up network equipment.
  • Page 2 ‘Y’ cable connection from it before removing the module. CAUTION: An energy hazard may exist on the Type 3 Power Module DC connector when the Module is in the Advanced RPS chassis. RPS T DVANCED OWER (3C16075) I ODULE NSTALLATION UIDE...
  • Page 3 Powermodule per Chassis" und halten Sie die Limitierung ein. Es ist wichtig, daß Sie die Limitierung nicht überschreiten. Details of the permitted combinations of modules and 3Com products are also given in Appendix C of the Advanced RPS Chassis User Guide (DUA1607-0AAA0x).
  • Page 4 ® 3 A RPS T (3C16075) I UPER TACK DVANCED OWER ODULE NSTALLATION UIDE Figure 1 shows the rear view of an Advanced RPS chassis and the power module slot numbers to help you determine which slots to use for your Type 3 Modules to meet the permitted configurations detailed in Table 1.
  • Page 5 SuperStack 3 Advanced RPS Chassis Loading Limitations Type 1 100 W Module (3C16073), Type 2 (100 W) Module (3C16074), or Type 2A (100 W) Module (3C16074A) none none none none none Type 3 Module (325 W) (3C16075) none none none none none none none none none...

  • Page 6: Important Safety Information

    Use only the special cables designed and supplied for this product. 3Com require that you confirm that your chassis supports the dual phase feature by checking that “3C16071A” or “3C16071B” appears on the serial number label on the base of the chassis, the front panel overlay, and also on the packaging label.
  • Page 7 Utilisez uniquement les câbles spécialement conçus et livrés pour ce produit. A la requête de 3Com, vous devez confirmer que votre châssis fournit la fonction double phase en vérifiant que le numéro 3C16071A ou 3C16071B est indiqué sur l'étiquette du numéro de série en bas du châssis, sur le panneau avant et également sur...

  • Page 8: Wichtige Sicherheitsinformationen

    Modul installiert wird. Ausschließlich die für dieses Produkt konstruierten und gelieferten Spezialkabel benutzen. 3Com verlangt von Ihnen die Bestätigung, daß Ihr Chassis die duale Phasenfunktion unterstützt, indem Sie nachprüfen, daß "3C16071A" oder “3C16071B” auf der Seriennummernplakette an der Chassis-Basis, am Frontplatten-Overlay sowie am Verpackungsetikett erscheint.

  • Page 9: Installing The Power Module

    CAUTION: Wenn sich das Type 3 Power Module im Advanced RPS Chassis befindet kann es zu einer Energiegefahr am DC Stecker kommen. Installing the Power Module CAUTION: Never plug a hot power module into the Advanced RPS. You may damage the power module. Allow sufficient time (approximately 1 minute) for the module to cool down before inserting it into the power module slot.

  • Page 10: Connecting The Dc Cables

    CAUTION: An energy hazard may exist on the Type 3 Power Module DC connector when the Module is in the Advanced RPS chassis. 2 Check that you are about to connect the Type 3 Module (3C16075) with the Type 3 standard DC cable supplied with the module.

  • Page 11: Technical Information

    CAUTION: Do not attempt to use a ‘Y’ cable to power two separate SuperStack 3 units. The equipment may not operate. CAUTION: All DC cable screws must be tightened with a suitable tool. Technical Information Mechanical Weight Size Electrical - Maximum Current Available +27.0 volts 12.5 A Power Consumption Typical Input Power: 395 W...
  • Page 12 Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries. 3Com and SuperStack are registered trademarks of 3Com Corporation. The 3Com logo is a trademark of 3Com Corporation.
