Wireless LAN Outdoor Bridge Solution
3CRWEASY96A
Outdoor solution for secure long-distance
wireless connections
The 3Com® Wireless LAN Outdoor Bridge Solution is a comprehensive building-to-building outdoor
wireless LAN kit that reduces the need to evaluate, purchase and assemble separate components. One
convenient package includes everything you need to offer an easy-to-manage building-to-building
wireless LAN. The package features a 3Com Wireless LAN Building-to-Building Bridge with integrated
antenna and power-over-Ethernet cable in a durable, weatherproof enclosure.
The bridge uses either of two network topologies:
Point-to-point
I
I
Point-to-multipoint

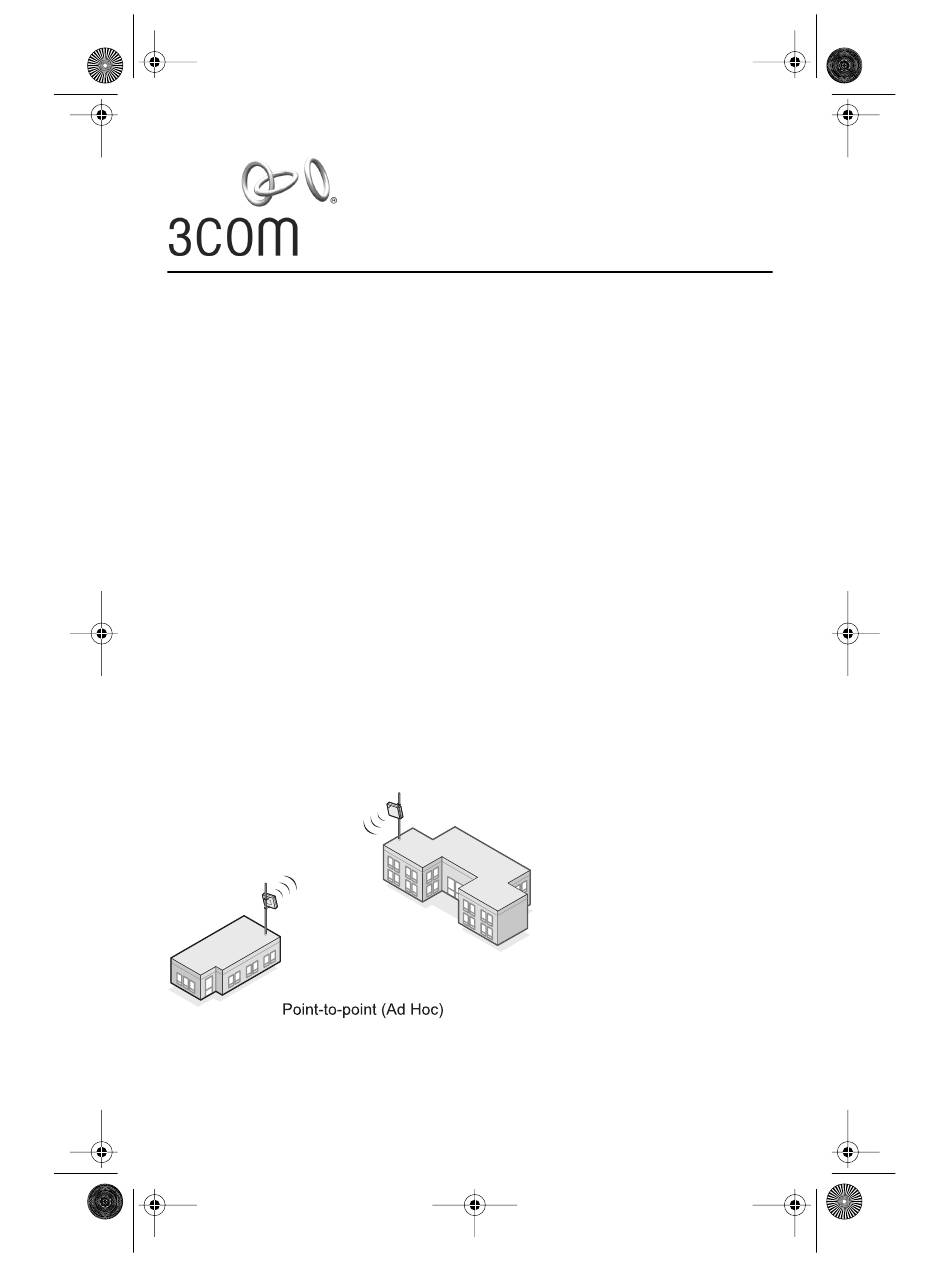

The first illustration shows the point-to-point topology (also known as Ad Hoc Network Mode). Notice
that the bridges face one another. While this is elementary in a close setting, real-world conditions such
as long distances, mountainous regions, and architectural barriers will not allow for such a precise
alignment. However, those conditions will not necessarily prohibit effective communication
between locations.
Quick Start Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for 3Com 3CRWEASY96A
Summary of Contents for 3Com 3CRWEASY96A
- Page 1 LAN kit that reduces the need to evaluate, purchase and assemble separate components. One convenient package includes everything you need to offer an easy-to-manage building-to-building wireless LAN. The package features a 3Com Wireless LAN Building-to-Building Bridge with integrated antenna and power-over-Ethernet cable in a durable, weatherproof enclosure.
- Page 2 Outdoor rated category 5 Ethernet cable (3Com part number 3CWE487 recommended). If you do not have IEEE 802.3af power-over-Ethernet LAN equipment, use the 3Com Integrated Power-over-Ethernet power supply and power cord that comes with the bridge. If your LAN equipment complies with the IEEE 802.3af power-over-Ethernet standard, you...
- Page 3 309-2273-001AA.fm Page 3 Monday, February 3, 2003 4:54 PM Decide where to mount the bridge/antenna unit (freestanding pole or rooftop mast) For best performance, do not install the bridge unit in a location where it could be vulnerable to extreme or hazardous conditions. ˚...
- Page 4 309-2273-001AA.fm Page 4 Monday, February 3, 2003 4:54 PM has metal siding. If necessary, you can mount an antenna inside a building; however, indoor placement reduces the antenna’s effective range. To ensure the physical safety of anyone near the antenna and to prevent damage to the bridge, follow the building codes for antenna installations in your area.This is another good reason to make sure that only a professional performs the installation.
- Page 5 309-2273-001AA.fm Page 5 Monday, February 3, 2003 4:54 PM Connect the Bridge to the Power Supply and the LAN You can connect to the LAN either through the 3Com power supply or through IEEE 802.3af power- over-Ethernet compliant equipment. Using the Power Supply The power supply can be located indoors at any point between the bridge and the LAN access port where an accessible power outlet exists.
- Page 6 Establish Wireless Association At initial startup, the default ESSID is 3Com , no security is set, and channel selection is automatic. Also, unless it detects a DHCP server on the network, the bridge defaults to an IP address of 169.254.xxx.1, where xxx is the last two bytes of the MAC address.
- Page 7 For a point-to-multipoint association between an access point and one or more bridges, see “Setting up a Bridge to Access Point Network” in the User Guide. For the latest networking information, see the 3Com Corporation World Wide Web site at: http://www.3com.com/.
- Page 8 Norway: This product is also designed for use on an IT power system with phase-to-phase voltage of 230 V. Copyright © 2003 3Com Corporation. All rights reserved. 3Com, the 3Com logo, and SuperStack are registered trademarks of 3Com Corporation. All other company and product names may be trademarks of the respective companies with which they are associated.
