F-2000 owners manualB&W:F-2000 owners manual out
4/8/09
3:18 PM
F-2000
o w n e r s m a n u a l
®
.
TM
W H E N A C C U R A C Y I S T H E P O I N T
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Delmhorst Instrument Co F-2000

  • Page 1 F-2000 owners manualB&W:F-2000 owners manual out 4/8/09 3:18 PM F-2000 o w n e r s m a n u a l ® W H E N A C C U R A C Y I S T H E P O I N T GlobalTestSupply www.
  • Page 2: Table Of Contents

    F-2000 owners manualB&W:F-2000 owners manual out 4/8/09 3:18 PM TABLE OF CONTENTS 2 F-2000 Features 3 Before You Begin 3 Check Calibration 4 Set the Scale 4 Change the Set-Point 5 To Check Accumulated Readings 5 To Reset Meter 6 Taking a Reading...
  • Page 3: 2000 Features

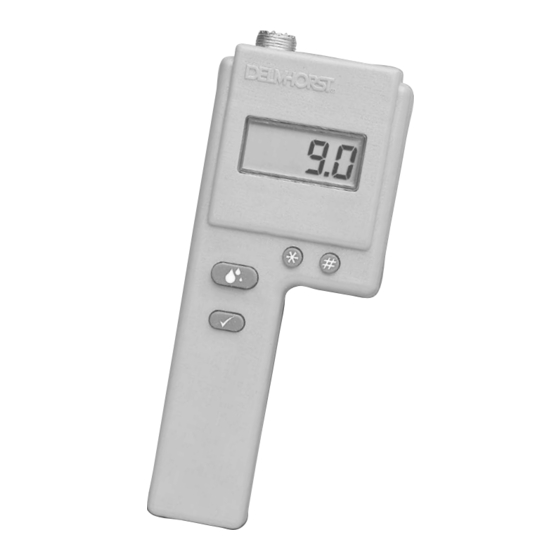

    F-2000 owners manualB&W:F-2000 owners manual out 4/8/09 3:18 PM D E L M H O R S T F - 2 0 0 0 External Connector Digital Readout Set-Point Read Button Button Calibration Check Button Set Point Decrease F-2000 FEATURES...
  • Page 4: Before You Begin

    F-2000 owners manualB&W:F-2000 owners manual out 4/8/09 3:18 PM BEFORE YOU BEGIN Button Functions READ BUTTON - Reads the percent moisture content value %MC. CALIBRATION CHECK BUTTON - Checks the meter calibration. Displays the average of up to 100 accumulated readings; displays the highest stored reading;...
  • Page 5: Change The Set-Point

    F-2000 owners manualB&W:F-2000 owners manual out 4/8/09 3:18 PM CHANGE THE SET-POINT hTo change the set-point value press the set-point button . The meter will display the current set-point value. hTo scroll forward to a higher value, hold the set-point...
  • Page 6: To Check Accumulated Readings

    F-2000 owners manualB&W:F-2000 owners manual out 4/8/09 3:18 PM TO CHECK ACCUMULATED READINGS This feature allows you to view the total number of all accumulated readings for the given product you have chosen, the average of those readings, and the highest stored reading.
  • Page 7: Taking A Reading

    F-2000 owners manualB&W:F-2000 owners manual out 4/8/09 3:18 PM TAKING A READING Testing Baled Hay hConnect the probe to the external connector on the top of the meter. hInsert the probe into the bale. hPress the read button The meter displays the %MC for two seconds.
  • Page 8 F-2000 owners manualB&W:F-2000 owners manual out 4/8/09 3:18 PM Test A hAttach the #831 short pin prod to the H-4 handle and connect the handle to the external connector on top of the meter. hPrepare a representative sample by collecting hay from various parts of the windrow.
  • Page 9: Factors Affecting Your Reading

    Range of Moisture Content The F-2000 is designed to test moisture in hay over a range of 6%-40%. Readings over 30% should be used only as a qualitative indication of high moisture content. Delmhorst moisture meters use the relationship existing between electrical conductivity and moisture content in hay.
  • Page 10: Hay Temperature

    4/8/09 3:18 PM Hay Temperature The F-2000 has been calibrated at 80°F on various samples of different types of hay, mostly alfalfa, and on different cuttings and mixtures. The higher the temperature of the sample, the higher the meter readings will be. Temperatures lower than 80°F cause lower meter readings.
  • Page 11: Density

    F-2000 owners manualB&W:F-2000 owners manual out 4/8/09 3:18 PM Density The calibration of the moisture testers applies to bales of normal “average’ density. Generally: hDenser bales may yield readings 1-2% points higher. hLooser bales tend to yield 1-2% point lower.
  • Page 12: Care Of Your Meter

    F-2000 owners manualB&W:F-2000 owners manual out 4/8/09 3:18 PM CARE OF YOUR METER To keep your meter in good working order: hStore your meter in a clean, dry place. The optional protective carrying case is an ideal storage place when the meter is not in use.
  • Page 13: Warranty

    3:18 PM WARRANTY Delmhorst Instrument Co., referred to hereafter as Delmhorst, guarantees its F-2000 meter for three years from date of purchase and any optional electrodes against defects in material or workmanship for 90 days. This limited warranty does not cover abuse, alteration, misuse, damage during shipment, improper service, unauthorized or unreasonable use of the meter or electrodes.
  • Page 14 F-2000 owners manualB&W:F-2000 owners manual out 4/8/09 3:18 PM For 60 years Delmhorst has been the leading manufacturer of high quality moisture meters and thermo- hygrometers. Today we offer the ® innovative KIL-MO-TROL in-kiln monitoring system. We also offer a...
