Owner's Manual PX-20 & PX-30
1
Rev 2 - November 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX-20 and is the answer not in the manual?

Questions and answers

Related Manuals for Delmhorst Instrument Co PX-20

Summary of Contents for Delmhorst Instrument Co PX-20

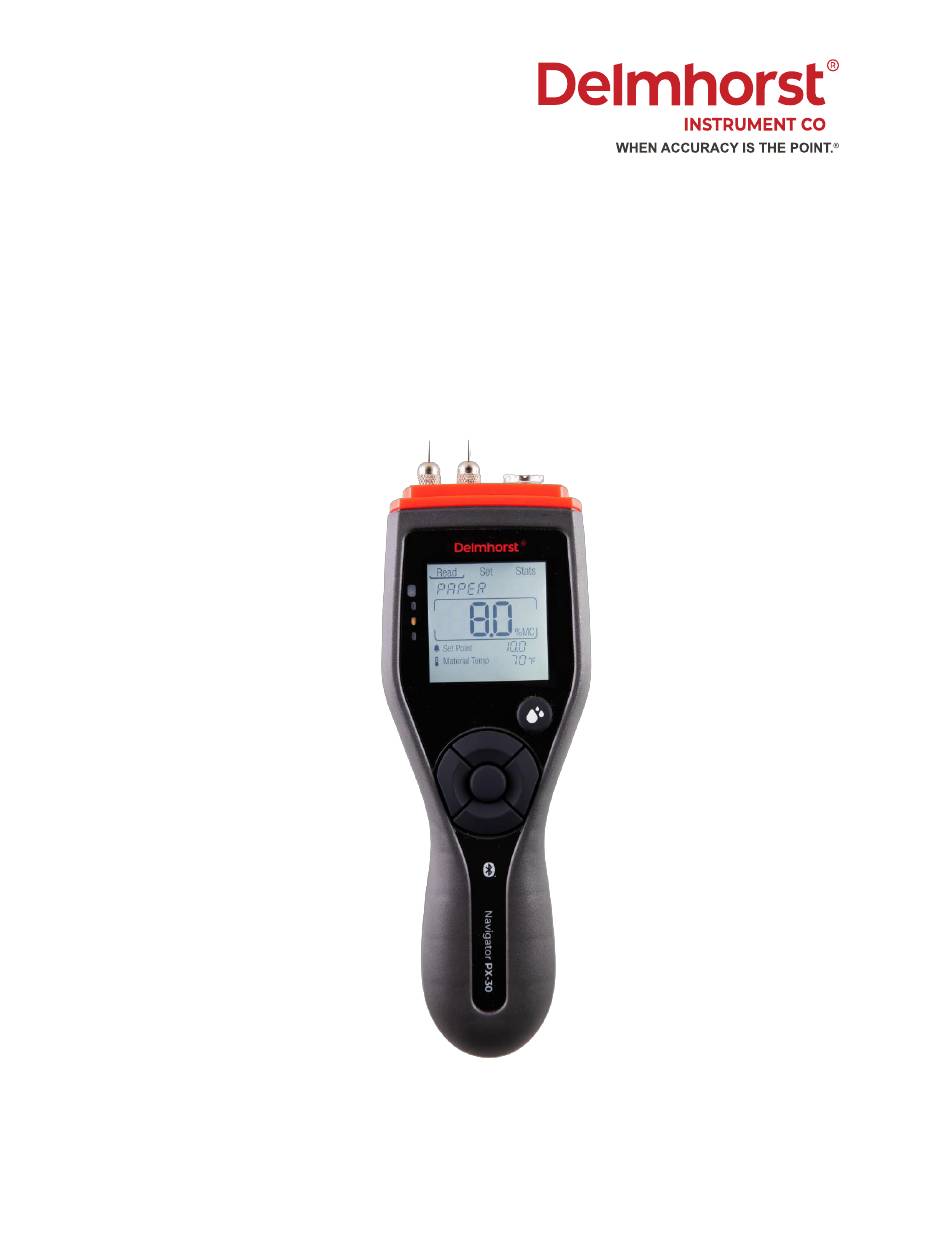

  • Page 1 Owner’s Manual PX-20 & PX-30 Rev 2 - November 2023...

  • Page 2: Table Of Contents

    Contents 1. Introduction....................................3 2. Safety ......................................4 3. Meter Features ..................................5 4. Menu Features ................................... 7 5. Read Menu ....................................7 Material Selection and Correction ............................. 8 Live Reading Area .................................. 8 Set Point ....................................9 Material Temperature ................................. 10 6.

  • Page 3: Introduction

    1. Introduction Thank you for purchasing the new PX-20 or PX-30, the latest in Delmhorst’s legacy “P- series” pin-type (conductance) moisture meters from the new Navigator™ family of moisture meters. Delmhorst P-meters are known worldwide for their unmatched reliability and ease of use.

  • Page 4: Safety

    2. Safety Sharp Measurement Pins: The measurement pins are very sharp as they are intended to penetrate through hard materials. Ensure that the pin cap is always covering the pins when not in use to avoid unintentional injury to the user or others. Meter Calibration: Meters are factory-calibrated prior to shipment.

  • Page 5: Meter Features

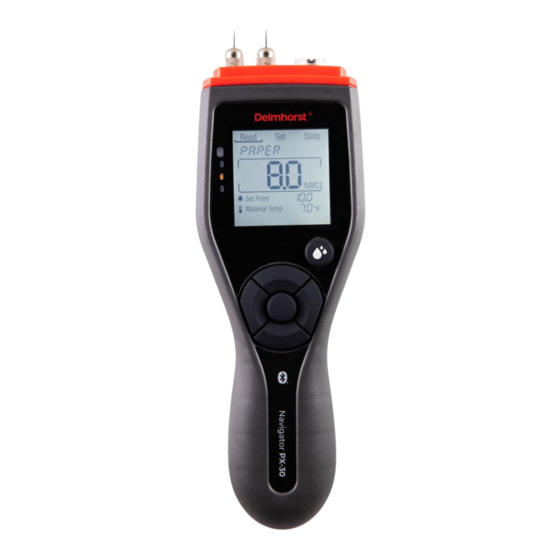

    3. Meter Features Figure 1: Meter components Display – Easy to read, backlit LCD display. Read Button – When in live reading mode, press this button to hold a reading. When in any other mode, press this button to enter live reading mode. Navigation Buttons –...
  • Page 6 pushing the meter into hard materials. The battery door is located on the rear of the handle. LEDs – (PX-30) The GREEN light indicates a sufficiently dry moisture level, the YELLOW light indicates a borderline condition, and the RED light indicates material that is wet.

  • Page 7: Menu Features

    4. Menu Features The Delmhorst PX meters have three operating modes: Read, Set, and Stats. The currently selected menu is marked with an underline. To change the menu, press the up button until the menu underline is blinking. Then use the left and right buttons to switch between menus.

  • Page 8: Material Selection And Correction

    Info: The PX-30 comes with 3 material calibrations: Paper, Reference -Paper, and Baled Scrap, and though the EDGE™ app, users can remove any unwanted species. The PX-20 includes Paper only. Use: Select the Read menu. While the underline flashes, press the down button to enter the species/material selection field.

  • Page 9: Set Point

    If the meter is used on stock so thin that the full length of the pins are not entirely embedded in the thickness of the sample, the readings tend to indicate a lower than actual MC. This can be overcome by testing more than one sample in stacks. Use: Use the navigation buttons to move to the live reading area (entry will be confirmed when a live reading appears on screen).

  • Page 10: Material Temperature

    Info: The Set Point is the user-selectable moisture level at which the alarm will sound. This feature allows users to take readings without having to review each one individually, helping to quickly identify high moisture areas. Use: When active, press the left and right buttons to adjust the Set Point down or up.

  • Page 11: Set Menu

    6. Set Menu Figure 3: Set screen components 1. Setting Selection The setting selection area will display all settings in a scrollable list. Each setting is listed and explained in Table 2 below. Press the left and right buttons to view settings.

  • Page 12: Stats Menu

    • A value of <11.8 or >12.2 means the meter is out of calibration – change the batteries (2 x AA) • When Bluetooth is on but not connected, the Bluetooth symbol will be on screen and flashing • When Bluetooth is on and connected, the Bluetooth Bluetooth®...

  • Page 13: Stats Details

    The stats selection area will display all statistics in a scrollable list (see Table 3 below). Press the left and right buttons to view statistics. 2. Stats Details Statistics are calculated from the list of saved readings in meter memory, and only readings taken within the valid measurement range of the selected material are used for the calculations.

  • Page 14: Applications

    8. Applications Testing Paper, Paper Cores and Corrugated Products Set the material to PAPER. Select the Set Point and set the Material Temperature, if desired. Check that the contact pins are firmly hand tightened. Push the contact pins into the material to their full penetration, if possible. The meter will display the %MC. The readings are the result of an “average”...
  • Page 15 comparative tests, readings should be taken on samples considered to be at “safe” levels or in satisfactory condition. These readings are then used as the “standard” against which subsequent readings on the same material are evaluated. The “standard” for any given material is related to safe storability or any other property which is important for further production processing.

  • Page 16: Delmhorst Edge ™ App Features

    9. Delmhorst EDGE ™ App Features The Delmhorst EDGE™ app expands upon many features found within the PX-30. These features include: 1. Export full data sets or selected readings from meter to app to be viewed on a single page and further analyzed. 2.

  • Page 17: Size

    2x AA Alkaline Batteries Battery life while using the meter in reading mode and active LED’s is estimated at 125- 150 hours. A combination of alarm, backlight and Bluetooth will reduce expected life to a minimum of 35 hours. A “LOW BATT” warning will appear on screen when the meter is woken up if battery voltage is below 1.75V.

  • Page 18: For Private Households: Information On Disposal For Users Of Weee

    For private households: Information on Disposal for Users of WEEE This symbol (figure 5) on the product(s) and / or accompanying documents means that used electrical and electronic equipment (WEEE) should not be mixed with general household waste. For proper treatment, recovery, and recycling, please take this product(s) to designated collection points where it will be accepted free of charge.

  • Page 19: Service Your Meter

    Support tab. If you require further assistance, please call 877- DELMHORST (335-6467) or 973-334-2557. Limited Warranty Delmhorst Instrument Co. 51 Indian Lane East, Towaco, NJ 07082, referred to hereafter as Delmhorst, guarantees its PX series moisture meters against defects in material or Rev 2 - November 2023...
  • Page 20 workmanship for two years from date of purchase. Optional electrodes are guaranteed for 90 days. See the owner’s manual or Delmhorst website (www.delmhorst.com) for warranty period on your specific product. If, within the warranty period of the product, you find any defect in material or workmanship, return the meter to Delmhorst or an authorized reseller, using the return form https://www.delmhorst.com/returns-service- warranty.
  • Page 21 Rev May 2021 Rev 2 - November 2023...

  • Page 22: Appendix

    12. Appendix LED Details The LED’s are a visual aid to help quickly determine the moisture level that each reading indicates. Readings that activate the green light indicate a sufficiently dry moisture level, those that activate the yellow light indicate a borderline situation, and those that activate the red light indicate material that is too wet for most applications.
