  • Page 1 SUBZERO AMPLIFIER SERIES SZ-ZA120 / ZA240 USER MANUAL...
  • Page 2 WARNING! AVVERTIMENTO! Do not open cover. No user-serviceable parts inside. Refer servicing to qualified Non aprire il coperchio. Se fosse necessario, riferirsi ad un esperto. service personnel. Do not place the product in a location near a heat source such as a Non esporre il prodotto a fonti di calore, luce del sole diretta, polvere, vibrazioni radiator, or in an area subject to direct sunlight, excessive dust, mechanical vibration meccaniche o altri possibili shock.
  • Page 3 INTRODUCTION Thank you for purchasing the SubZero ZA120 / BOX CONTENTS ZA240 Amplifier. • SubZero ZA120 / ZA240 To ensure you get the most from your new product, please read this manual carefully. • UK Power Cable FEATURES - ZA120 •...

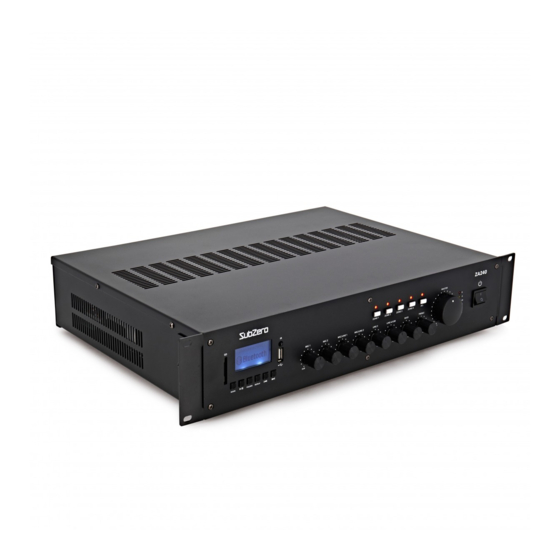

  • Page 4 OVERVIEW SZ-ZA240 100V LINE ZONE AMPLIFIER MASTER ZONE 1 ZONE 2 ZONE 3 ZONE 4 –5 –10 MIC 1 MIC 2 MIC/LINE 1 MIC/LINE 2 LINE 3 LINE 4/USB BASS TREBLE –15 –20 MODE FOLDER REPEAT –10 –10 FRONT PANEL 8.
  • Page 5 DC INPUT SPEAKER OUTPUT ZONE 1 ZONE 2 ZONE 3 ZONE 4 IN- / OUTPUTS LINE OUT LINE 4 LINE 3 MIC 4 / LINE 2 MIC 3 / LINE 1 MIC 2 MIC 1 100V 100V 100V 100V 24V DC LINE 16 17 19 20 21...

  • Page 6: Media Player

    Pressing the REPEAT button will step through the ‘SubZero’ in the devices list. repeat modes – ONE: repeat current track, RAND: • Select ‘SubZero’. The Bluetooth enabled device random, ALL: repeat all. should confirm that it is now connected. Pressing the Previous Track button skips backwards •...
  • Page 7 REMOTE CONTROL FOR MEDIA PLAYER 1. PLAY/PAUSE Starts or stops the current track being played via the digital media player (i.e. USB, SD or Bluetooth). 2. CHANNEL DECREASE No function. 3. CHANNEL INCREASE No function. 4. EQ SETTING Controls the tone level of the digital media player.

  • Page 8: Connection And Setup

    CONNECTION & SETUP Always ensure the device is powered off and the volume controls are turned down before inserting or removing cables. Connect the rear IEC inlet to the mains using the supplied power cable. Ensure that the voltage is correct as indicated on the voltage selector and that the mains outlet is switched on.
  • Page 9 AMPLIFIER 120w 100V LINE SYSTEMS LOW IMPEDENCE SPEAKERS For 100V line systems, connect the amplifier to the The ZA Series amplifiers also include an output for first speaker in the system using double-insulated a single 8ohm speaker. Connect the “8Ω” terminal speaker wire which has adequate current rating to to the positive (+) speaker connection and “COM”...

  • Page 10: Operation

    OPERATION Once you have completed your connections and settings, please follow the below steps: Using the Bass and Treble EQ controls you can • Turn all the volume controls down to their lowest adjust the tone of the master output. setting and turn on the power using the power On/Off switch.

  • Page 11: Dip Switches

    DIP SWITCHES When a speaking into a microphone connected to the MIC1 channel the VOX function will lower the volume of the input channels by -40dB, and return them to normal when speaking has stopped. PHANTOM Use this switch to provide +24V phantom power to condenser microphones.

  • Page 12: Specifications

    SPECIFICATIONS SZ-ZA120 SZ-ZA240 Power supply ... . . 220-240Vac, 50/60Hz Power supply ... . . 220-240Vac, 50/60Hz (IEC) or 24Vdc option (IEC) or 24Vdc option (screw terminals) (screw terminals)
