- Page 1 MODULAR PA SYSTEM HiCAST-S21 USER MANUAL...
- Page 2 WARNING! ADVARSEL! Do not open cover. No user-serviceable parts inside. Refer servicing to qualified service personnel Ikke åpne dekselet. Inneholder ingen deler som kan brukes. Overlat reperasjon til kvalifisert Do not place the product in a location near a heat source such as a radiator, or in an area subject to servicepersonell.

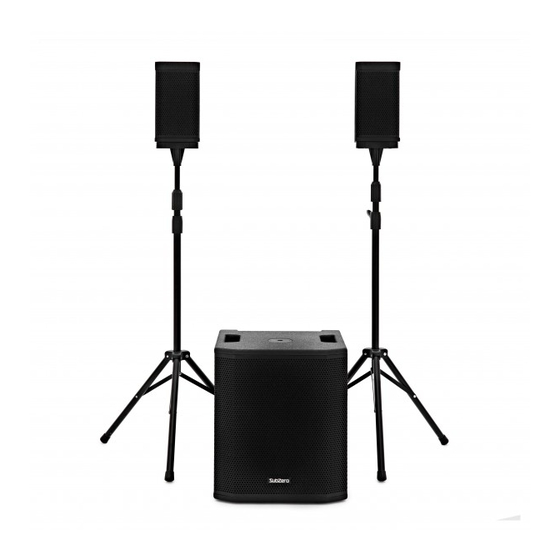

- Page 4 INTRODUCTION Thank you for purchasing the SubZero HiCAST S21. To get the most out of your product, please read this manual carefully. BOX 1 CONTENTS • 1 x Subwoofer with built-in mixer. • 2 x 6.3mm TS Jack cables. • 1 x User manual.
-
Page 5: Overview - Control Panel
LINE CHANNEL 1 OVERVIEW – CONTROL PANEL TALK HIGH HIGH HIGH HIGH HIGH —15dB +15dB —15dB +15dB —15dB +15dB —15dB +15dB —15dB +15dB MODE —15dB +15dB —15dB +15dB —15dB +15dB —15dB +15dB —15dB +15dB POWER CLIP FLAT SPEECH MUSIC LIVE CLUB DSP PRESET —15dB... - Page 6 CH1/2 MONO/STEREO LEFT/MONO CHANNEL 3-8 RIGHT MONO/STEREO MONO STEREO HiCAST-S21 SPEAKER OUT (8 /50W)x2 CLUB 1. CH 1 LINE/MIC SWITCH 8. CH 4 COMBI INPUT CAUTION Change the input sensitivity to suit either a Connection for an XLR or 6.3mm TRS Jack cable...
- Page 7 14. FX RETURN Receives the signal from an external FX processor. 15. PRE-AMP OUTPUT Connection for external audio devices. Sends out the master stereo signal, bypassing the amplifier. 16. LINK IN/OUT Connection to link further HiCAST S21 units. 17. CHANNEL 3-8 MONO/STEREO When this switch is pressed in, the outputs for channel 3 to 8 are mono summed together.
-
Page 8: Digital Media Player
• Scan for Bluetooth devices and search for 5. SKIP TRACK BACKWARDS ‘SZ-HiCAST-S21’ in the devices list. Selects the previous track. • Select ‘SZ-HiCAST-S21’. The Bluetooth enabled 6. SKIP TRACK FORWARDS device should confirm that it is now connected. Selects the next track. -
Page 9: Digital Sound
Digital Signal Processing (DSP) gives you clarity to suit speech, brightness to suit music, and bass boost for parties. Each of the five presets have been carefully fine-tuned by professional audio engineers and are easily selected at the touch of a button. We’ve taken care of the technology, so you can DIGITAL SOUND concentrate on making your event the best it... - Page 10 STEREO (2.1) SET UP GUIDE This mode is suitable for when you wish to use the to both speakers). This allows you to input two HiCast S21 as its own standalone PA system, and different devices (MONO) or left and right inputs where you may require a stereo audio image.
- Page 11 MONO (1.1) SET UP GUIDE This mode is suitable when you have limited space or if you would like to use the system as a column PA. This set up only requires one speaker cable connection, allowing for a simpler cable solution. Do note, in 1.1 mode, all output signals to the satellite speakers are mono summed, meaning you will not have a stereo signal.
-
Page 12: Specifications
SPECIFICATIONS Amplifier ....Class D DSP RMS Power(total) ..300W + 80W + 80W Max Power ....1200W + 320W + 320W Subwoofer . - Page 14 KETTLESTRING LANE | YORK | YO30 4XF | UNITED KINGDOM METALLVÄGEN 45A | 195 72 ROSERSBERG | STOCKHOLM | SVERIGE LAHNSTRAßE 27 | 45478 MÜLHEIM AN DER RUHR | DEUTSCHLAND If you have any more questions about this product, please do not hesitate to contact the Gear4music Customer Service Team on: +44 (0) 330 365 4444 or info@gear4music.com...
