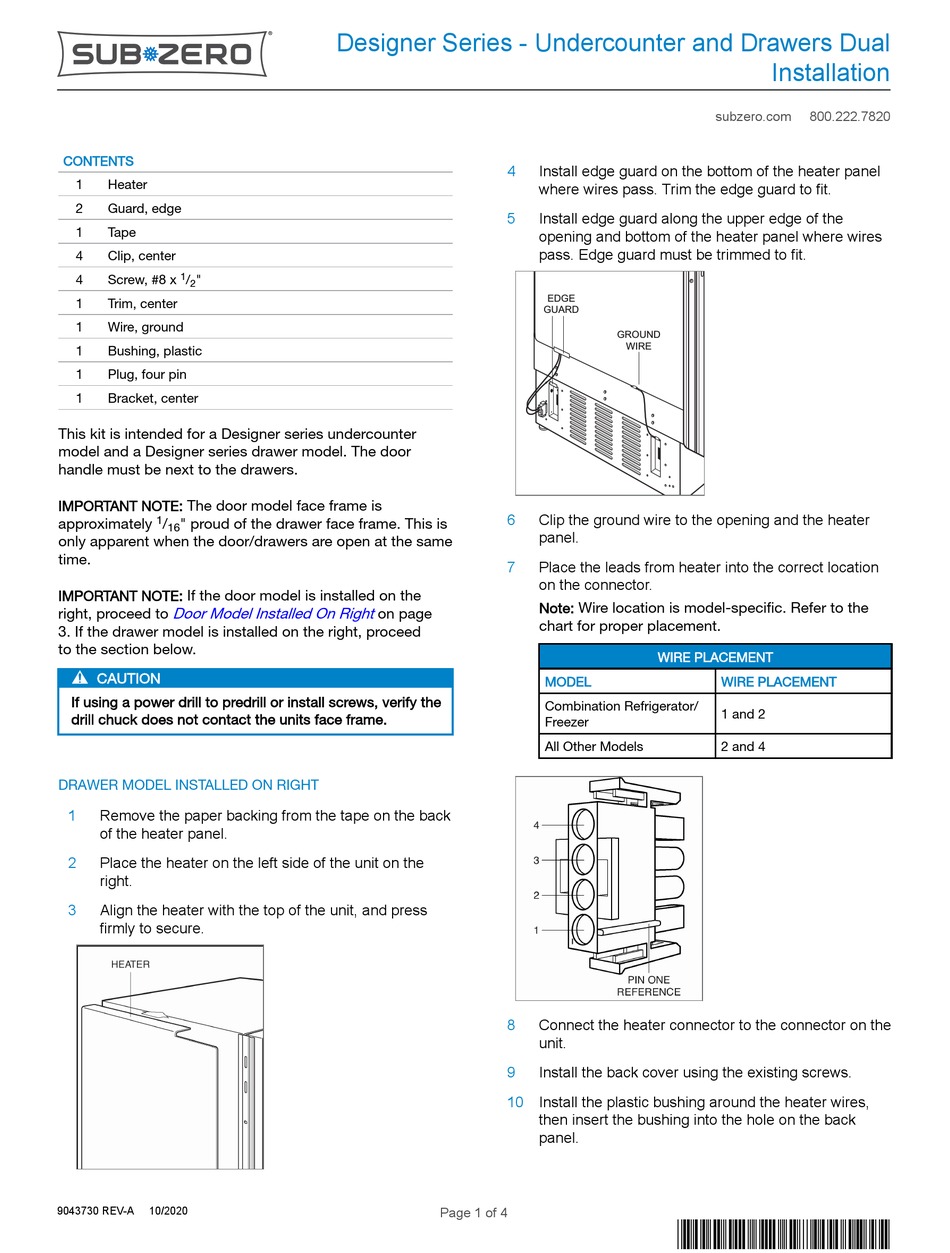

Subzero Designer Series Installation

CONTENTS
1 Heater
2 Guard, edge
1 Tape
4 Clip, center
1
4 Screw, #8 x / "
2
1 Trim, center
1 Wire, ground
1 Bushing, plastic
1 Plug, four pin
1 Bracket, center
This kit is intended for a Designer series undercounter
model and a Designer series drawer model. The door
handle must be next to the drawers.
IMPORTANT NOTE : The door model face frame is
1
approximately / " proud of the drawer face frame. This is
16
only apparent when the door/drawers are open at the same
time.
: If the door model is installed on the
IMPORTANT NOTE
Door Model Installed On Right
right, proceed to
3. If the drawer model is installed on the right, proceed
to the section below.
CAUTION
If using a power drill to predrill or install screws, verify the
drill chuck does not contact the units face frame.
DRAWER MODEL INSTALLED ON RIGHT
1 Remove the paper backing from the tape on the back
of the heater panel.
2 Place the heater on the left side of the unit on the
right.
3 Align the heater with the top of the unit, and press
firmly to secure.
9043730 REV-A 10/2020
Designer Series - Undercounter and Drawers Dual
4
5
6
7
on page
8
9
10
Page 1 of 4
subzero.com
Install edge guard on the bottom of the heater panel
where wires pass. Trim the edge guard to fit.
Install edge guard along the upper edge of the
opening and bottom of the heater panel where wires
pass. Edge guard must be trimmed to fit.
EDGE
GUARD
GROUND
WIRE
Clip the ground wire to the opening and the heater
panel.
Place the leads from heater into the correct location
on the connector.
Note : Wire location is model-specific. Refer to the
chart for proper placement.
WIRE PLACEMENT
MODEL
Combination Refrigerator/
Freezer
All Other Models
Connect the heater connector to the connector on the
unit.
Install the back cover using the existing screws.
Install the plastic bushing around the heater wires,
then insert the bushing into the hole on the back
panel.
*9043730$REVA*
Installation
800.222.7820
WIRE PLACEMENT
1 and 2
2 and 4
