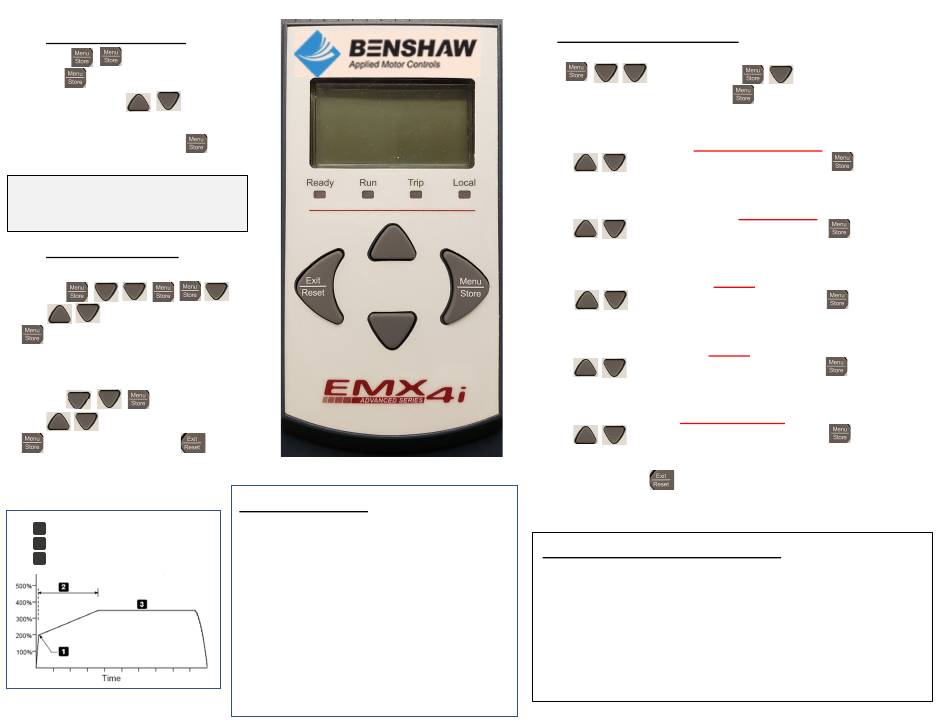

BENSHAW EMX4i ADVANCED Series Quick Start

(1) Set DATE and TIME
Press:
Press to select what needs
changed. Use to change
values.
To save changes press
Check motor name plate for
FLA and S.F.
(2) Set MOTOR DATA:
(1B) Motor Full Load Amps
Press:
Use to change values.
to save changes.
(1F) Motor Service Factor (S.F)
Press:
Use to change values.
to save changes.
1
Initial current
2
Start ramp time
3
Current limit
EMX4i
Quick Start
.
R2.0
Troubleshooting:
(a) If motor does not start to move as
soon as the Start is pushed,
increase (2C).
(b) If motor Starts too fast, decrease
(2C) as long as motor does not
stall at startup. If still too fast
decrease (2D).
(c) If motor does not reach full
speed, increase (2D).
(3) Prameter Programming:
Main Menu
(2) Motor Start / Stop 1
2A = Start Mode:
* Constant Current
Press to get correct value. Then
2B = Start Ramp Time:
*
Press to get correct value. Then
2C = Initial Current:
*
Press to get correct value. Then
2D = Current Limit:
* 400%
Press to get correct value. Then
2I = Stop Mode:
* Coast To Stop
Press to get correct value. Then
Exit to main screen.
You are now ready for Start/Stop.
Note for additional parameters:
to save
10 - 15 sec
to save
250%
to save
to save
to save
