Rear panel

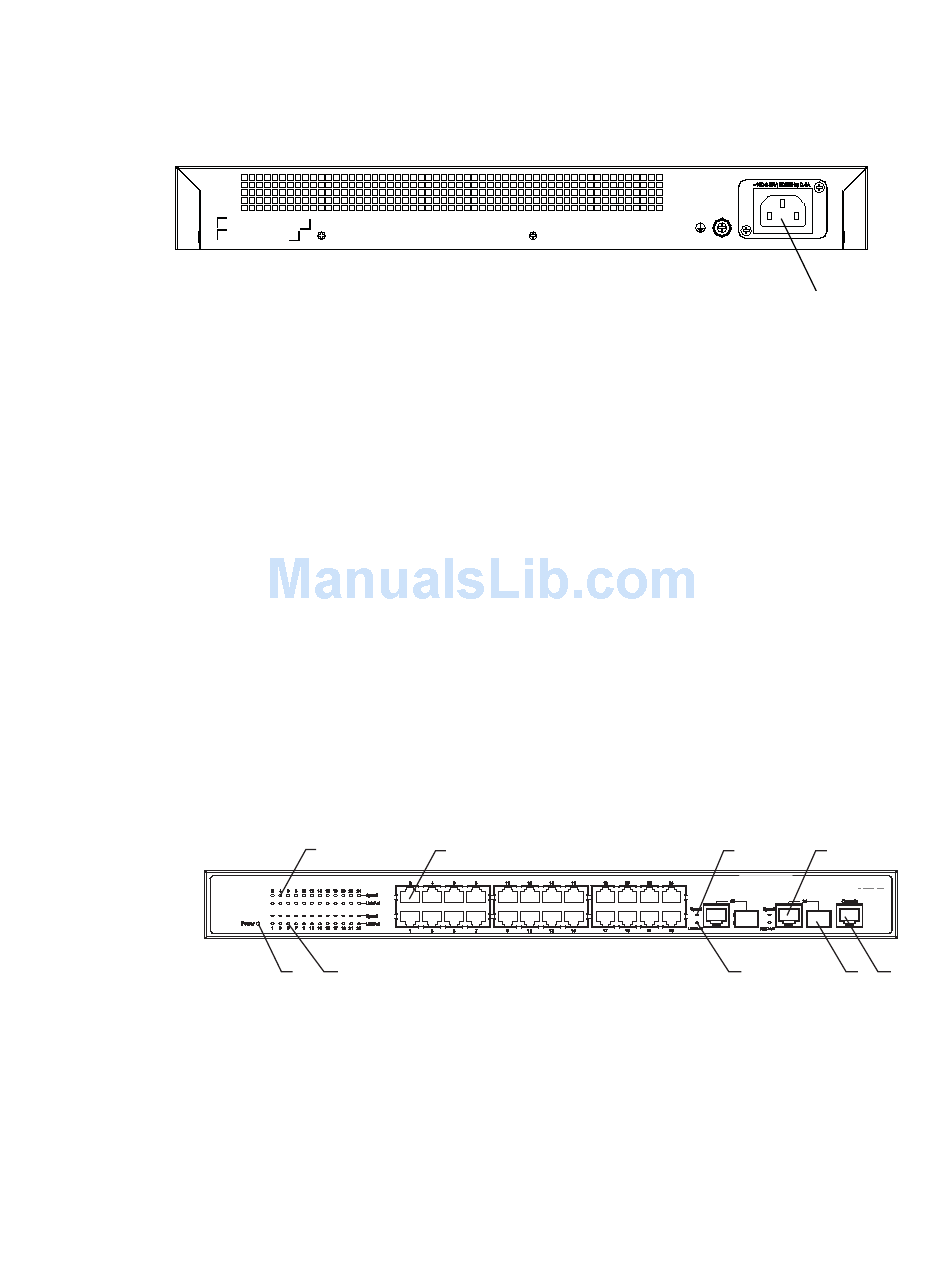

Figure 13 The Switch 4210 18-port model's rear panel
Power system
The Switch 4210 18-port model's support AC input.
Rated Voltage Range: 100 VAC to 240 VAC, 50 Hz/60 Hz
■
Input voltage range: 90 VAC to 264 VAC, 47 Hz to 63 Hz
■
Cooling system
3Com Switch 4210 non-PWR models cool naturallly through airflow.
Front panel
The Switch 4210 26-port front panel provides 24 10/100Base-TX autosensing
Ethernet ports, two 10/100/1000Base-T autosensing Ethernet ports, two
100/1000Base-X SFP ports, and one Console port. Each SFP port and the
corresponding 10/100/1000BASE-T autosensing Ethernet port form a Combo
port. For each Combo port, you can use either the SFP port or the corresponding
10/100/1000BASE-T Ethernet port at one time.
Figure 14 shows the front panel of the Switch 4210 26-port model.
Figure 14 The Switch 4210 26-port front panel
(1)
(8) (7)
(1) 10/100Base-TX autosensing port Speed LED (green)
(2) 10/100Base-TX autosensing port
(4) 10/100/1000Base-T autosensing port
(6) 100/1000Base-X SFP port
(8) Power LED (PWR)
(2)
AC input terminal block
(4)
(3)
(7)
(3) Combo port Speed LED (green)
(5) Console port
(7) Link/Act LED (green)
(6) (5)
