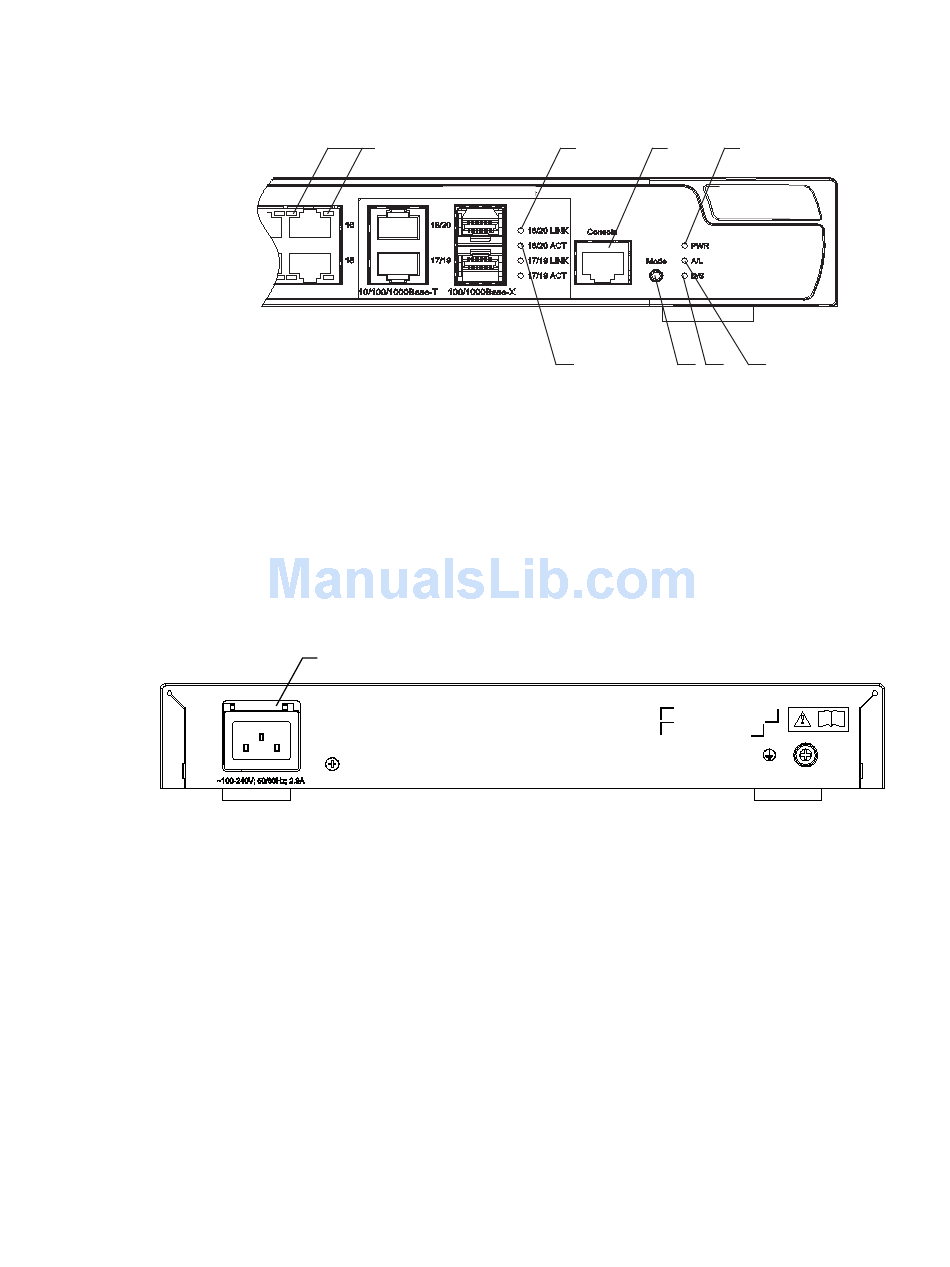

Figure 5 Front panel of a Switch 4210 18-port PWR
(1)
(1) 10/100Base-TX autosensing Ethernet port status LED
(2) Link LED for Combo port
(4) Power LED (PWR)
(6) D/S LED
(8) Active LED for Combo port
Rear panel
Figure 6 Rear panel of a Switch 4210 18-port PWR
( 1 )
(1) AC power socket
Side panel
Each Switch 4210 18-port PWR provides a security slot, through which you can
lock the device together with an irremovable object to prevent theft. The security
slot is located on the left side panel, as shown in Figure 7.
(2) (3) (4)
(8) (7) (6)
(3) Console port
(5) A/L LED
(7) Mode button
(5)
