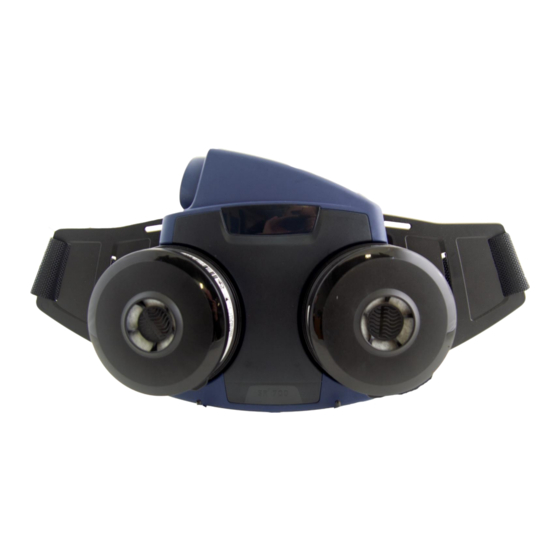

Battery-powered fan
Hide thumbs
Also See for SR 700:
- User instructions (132 pages) ,
- Instructions for use manual (116 pages) ,
- Operating instruction (23 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sundstrom SR 700
Summary of Contents for Sundstrom SR 700

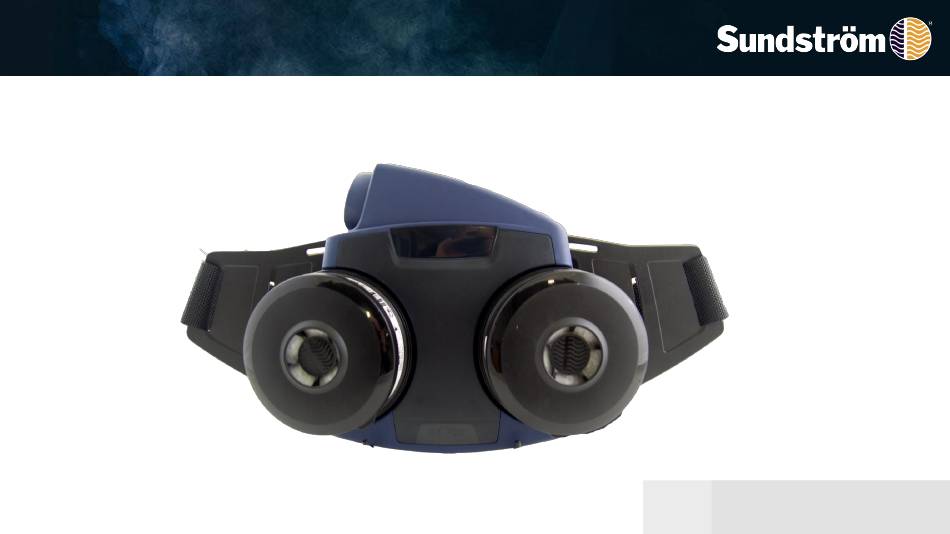

- Page 1 Operating instructions SR 700 Revision: 04 OI06H-7018 SR 700 2019-06-04...
-
Page 2: General Information
Instructions for use for SR 700 should be read before use. The SR 700 is a battery-powered fan that is included, together with the particle filter and approved head top, in the Sundström respiratory protective system conforming to EN 12941/12942:1998 Available head tops for the SR 700 are listed in Instructions for use. - Page 3 Unpacking the SR 700 Packing list: • Fan unit SR 700 • Battery SR 701 • Battery charger SR 713 • Belt SR 508 • Particle filter SR 510 P3 R, 2x • Filter adapters, 2x • Pre-filter holders, SR 511, 2x •...
- Page 4 1.2 Remove and charge the 1.4 Push the battery back into battery. the battery compartment. The charger carries out charging automatically in three stages. Orange LED Yellow LED Green LED OI06H-7018 SR 700 2019-06-04...
- Page 5 Insert the three tongues of the belt half into the slot in the fan. Begin to insert the upper tongue and then turn the belt into the fan. OI06H-7018 SR 700 2019-06-04...
-
Page 6: Particle Filter
Then turn it about 1/8 of a turn further in order to ensure a good seal OI06H-7018 SR 700 2019-06-04... - Page 7 Press the pre-filter holder onto the particle filter The pre-filters SR 221 protect the main filter against excessively fast clogging. The pre-filter holders also protect the main filters against handling damage. OI06H-7018 SR 700 2019-06-04...
-
Page 8: Operation/Performance
175 l/min and the small fan symbol will again light up. 4.2 The symbols on the display will light up and the sound signal will sound. The fan starts in normal operating status. (175 l/min). OI06H-7018 SR 700 2019-06-04... - Page 9 80 seconds. intermittent signal. Action: Immediately interrupt the work, leave the area and change the Action: Immediately interrupt filter. the work, leave the area and change/charge the battery. OI06H-7018 SR 700 2019-06-04...
- Page 10 Note. If the bag is turned with -The flow meter is vertical the measuring tube inwards, -The ball moves freely it can be used as a storage -The bag seals well around bag. the hose. OI06H-7018 SR 700 2019-06-04...
- Page 11 10 – 15 seconds. blocking off the flow meter outlet. Switch off the fan and remove the head top from the flow meter bag. OI06H-7018 SR 700 2019-06-04...
- Page 12 8.3 Put the belt ends in the belt together. clips on each side of the belt. After the buckles have been Start the fan. connected, tighten the belt so Put the head top on. that it is comfortable. OI06H-7018 SR 700 2019-06-04...
- Page 13 Hose SR 951 8.6 Note that when a full face Hose SR 952 mask SR 200 is used, the hose should run along your waist and up along the chest. OI06H-7018 SR 700 2019-06-04...
- Page 14 9.3 Change the pre-filters in Release the filter holders. its holders. Clean, as necessary. Bear in mind that both filters must be changed at the same time. 9.2 Remove the filter adapter 9.4 Fit new filters. from SR 510. OI06H-7018 SR 700 2019-06-04...
- Page 15 Wipe the outside of the fan. fouling, a soft brush or If necessary, spray the product with 70 % ethanol or isopropanol sponge wetted with a solution solution for disinfection. of water and dishwashing detergent can be used. OI06H-7018 SR 700 2019-06-04...
- Page 16 Cleaning/Disinfection 10.4 Clean the pre-filter 10.5 Wipe the filter adapter holders inside and out. clean. Check that the sealing ridge for the particle filter is undamaged. 10.6 Wipe the belt clean. OI06H-7018 SR 700 Page 2019-06-04...
-
Page 17: Maintenance Schedule
The following schedule shows the recommended minimum maintenance procedures required in order to ensure that the 11.2 Fit the new gasket onto equipment is always in functional condition. the flange. Check that the gasket is in place all round. OI06H-7018 SR 700 2019-06-04... -
Page 18: Troubleshooting Schedule
A new battery charger. Fan motor/electronic fault Send the fan unit for repair Yellow battery symbol flashes Battery discharged Recharge the battery OI06H-7018 SR 700 2019-06-04... - Page 19 Valves Check that the exhalation valves with membranes are fitted to your head top. Irregular air flow Filter clogged Check that there are filters in the fan unit No filters mounted OI06H-7018 SR 700 2019-06-04...
