Three phase mechanical electronic sectionalizer 15kv/27kv, 125kv/150kv

Table of Contents

1YSA160003-EN - Rev. 5

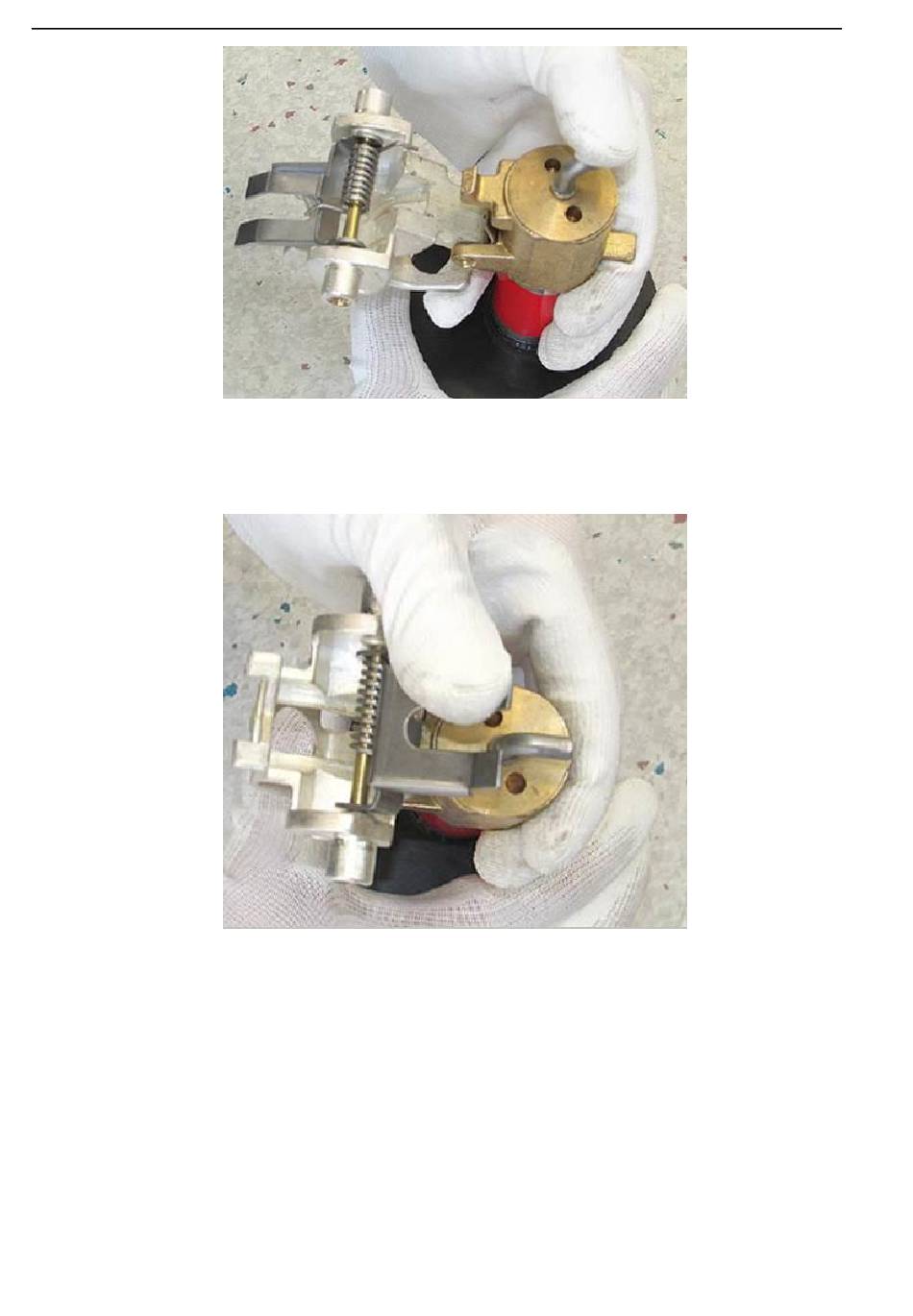

Turn the tensioning device support (See Figure 7).

Place the tensioning device support facing the interlocking bolt.

Turn the tripping pin 90°, until the lower contact is firmly blocked (See Figure 8).

Figure 12.

Figure 13.

13 / 19
