D.4.3.2.

Opening of the Unit

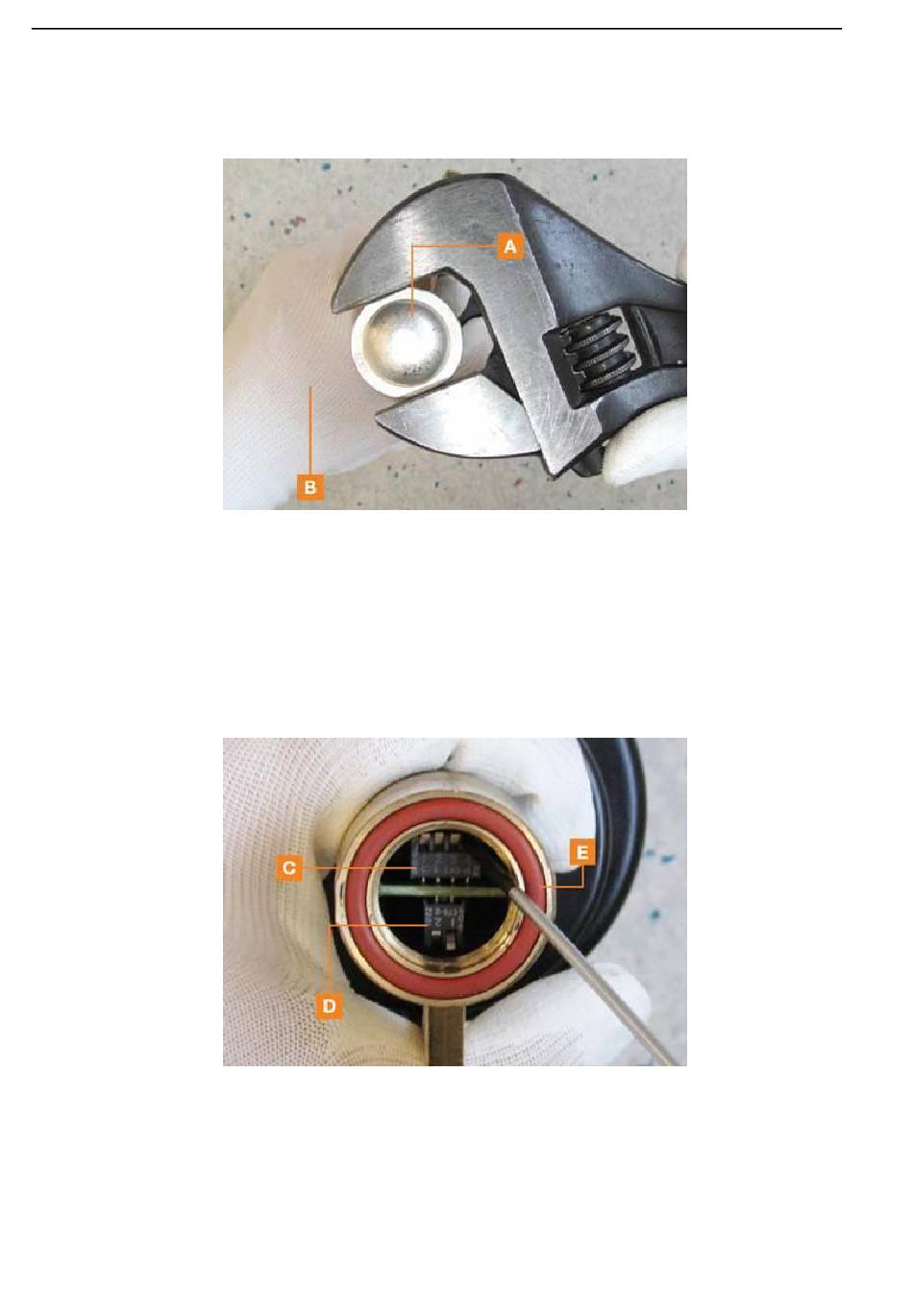

Remove the top cap (See Figure 1-A) using a 34mm fork spanner holding the tube with the hand (See Figure 1-B). Check condition
of O-ring (See Figure 2-E), and replace it if necessary, applying grease on it.
D.4.3.3.

Dip-Switch Configuration

Set the dip-switches to calibrate the current (See Figure 2-C, 4 switches) and set counting operations (See Figure 2-D, 2 switches)
using a small screwdriver according to the settings in the Table 1 and 2.
Note: handle with care without applying excessive force that could damage the switches. Settings must be made in a clean and dry
environment.
Figure 7.
Figure 8.
