Place the cap, holding the tube with the hand, and tighten it using a 34 mm fork spanner (torque between 8 and 10 Nm) without
damaging the O-Ring (See Figure 5).
D.4.3.5.

AutoLink Repositioning

Push the interlocking bolt (See Figure 6) until blocked (it will rotate freely). Do not strike the bolt, nor use any type of tool to reset.

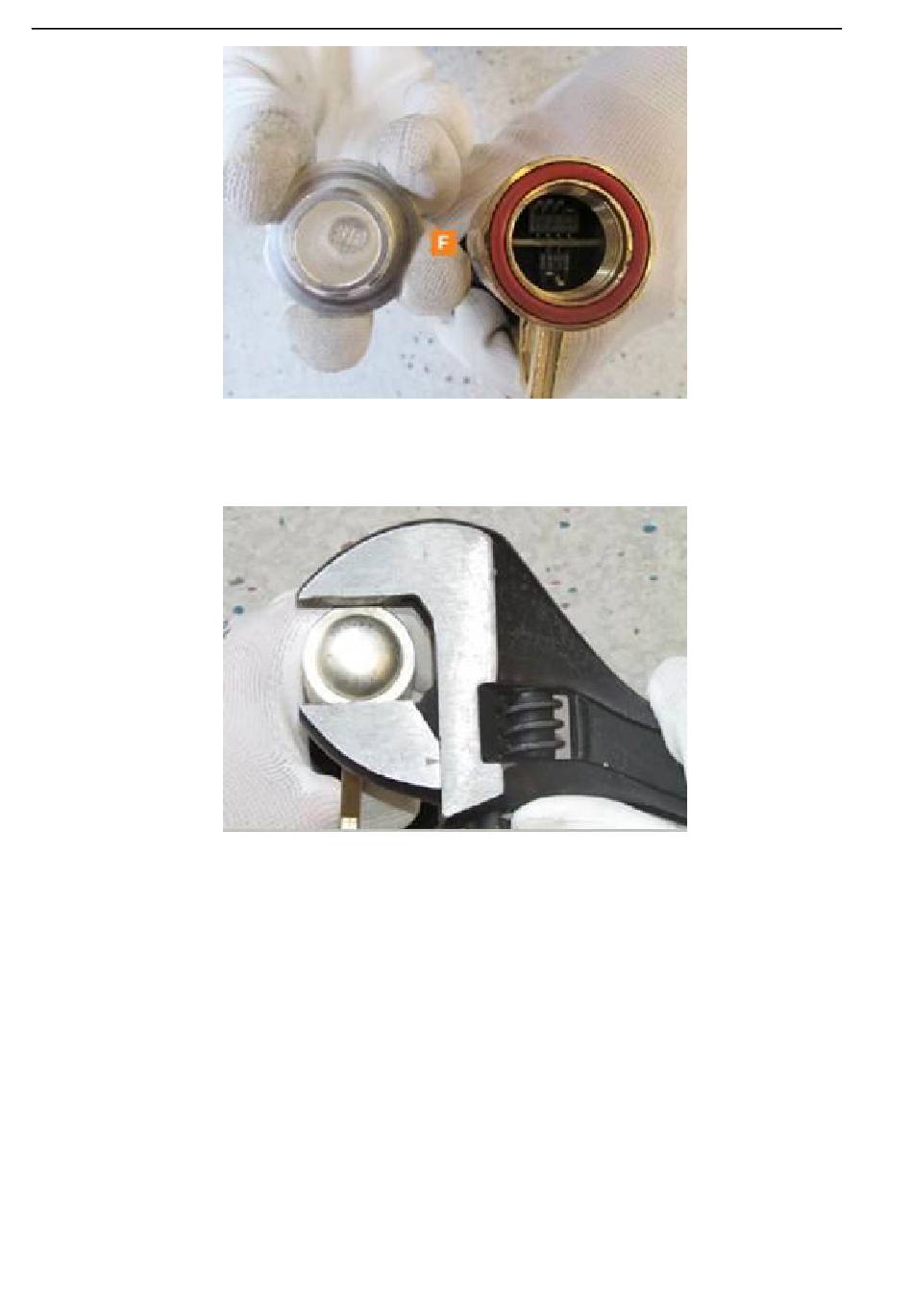

Figure 10.
Figure 11.
