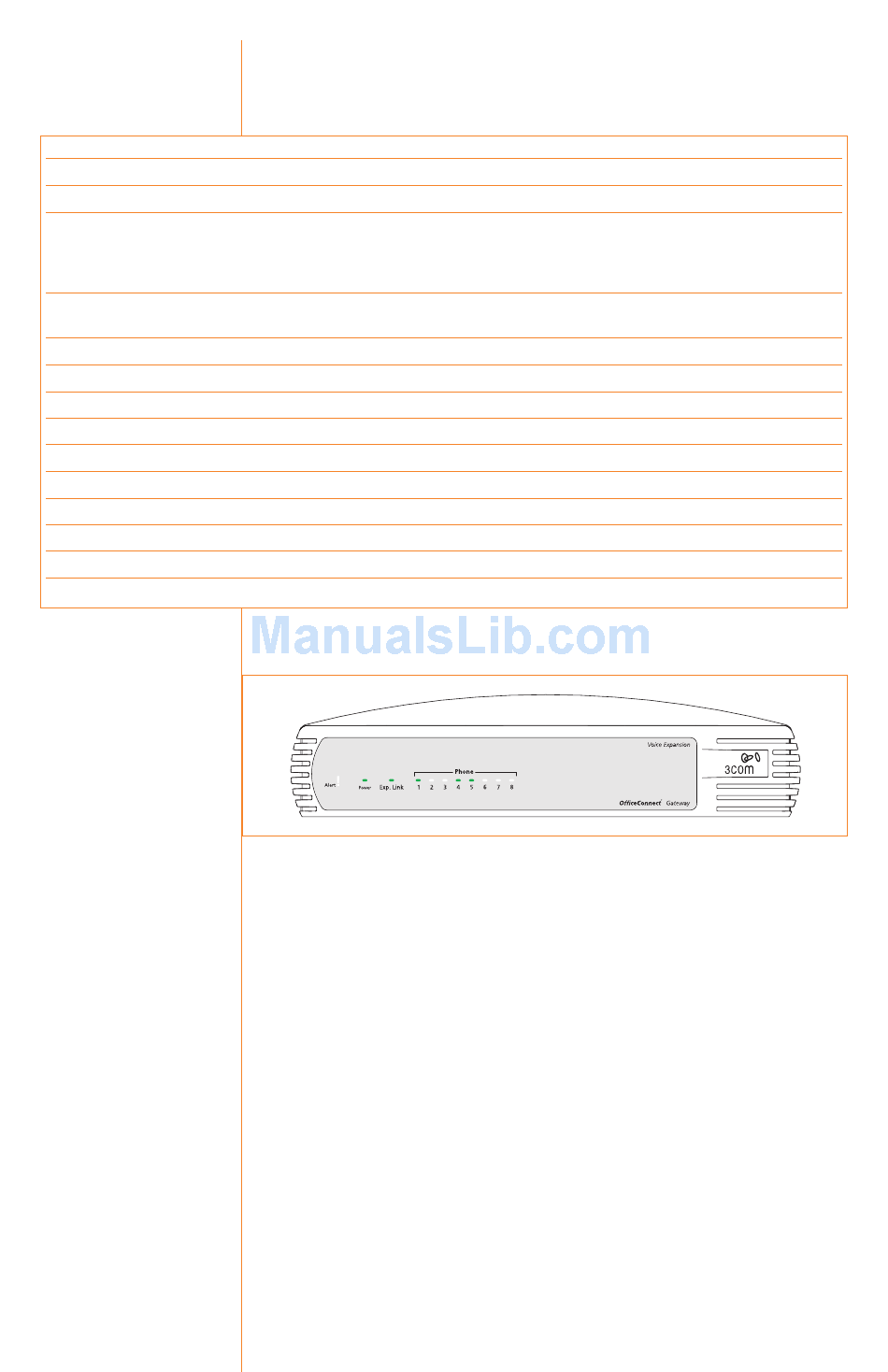

Front Panel
Indicators
Alert
Off
Amber
Amber (blinking)
Red
Power
Off
Green
Expansion LED
Off
Green (blinking)
Green
Phone Status
1-8
Off
Green
Rebooting
the Unit
The LED Indicators on the front panel of the OfficeConnect
Gateway Voice Expansion Unit provide the following
information:
Off indicates the unit has passed the Power On Self-Test and is working properly.
Lit during Boot up of the unit. Remains lit until synchronization with the base unit occurs.
Occurs in the following situations:
1) A version incompatibility is detected between it and the OfficeConnect Gateway base unit.
2) A software upgrade of the Voice Expansion Unit is being performed by the base unit.
Refer to the Troubleshooting section in the OfficeConnect Gateway User's Guide.
Indicates a diagnostic failure in the unit. Refer to the Troubleshooting section in the
OfficeConnect Gateway User's Guide.
Power not being supplied to the unit.
Remains lit as long as power is supplied to the unit.
Base unit not detected or there is no synchronization with the base unit.
Base unit detected. Synchronizing and waiting for the base unit to assume master control.
Base unit synchronized and in control of OfficeConnect Gateway Voice Expansion Unit.
Onhook. The phone port is not being used.
Offhook. The phone port is being used.
Rebooting the Office Connect Gateway Voice Expansion Unit:
To reboot a unit that is powered up, press and hold the Reset
button for at least two seconds.
Reset Button
The Reset button is located on the rear panel of the
OfficeConnect Gateway Voice Expansion Unit. Please refer to the
installation diagram to see the location of this button.
