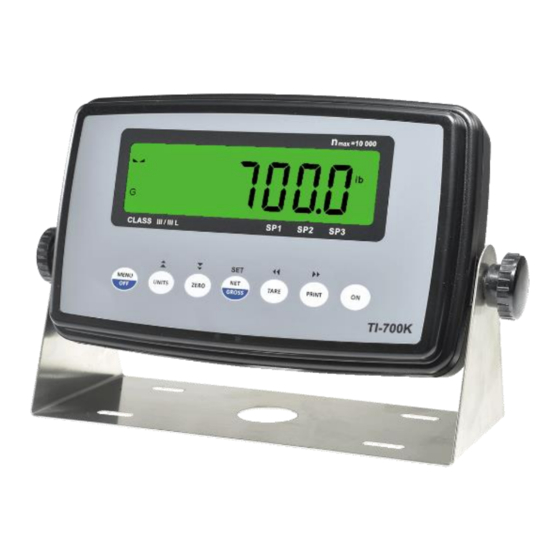

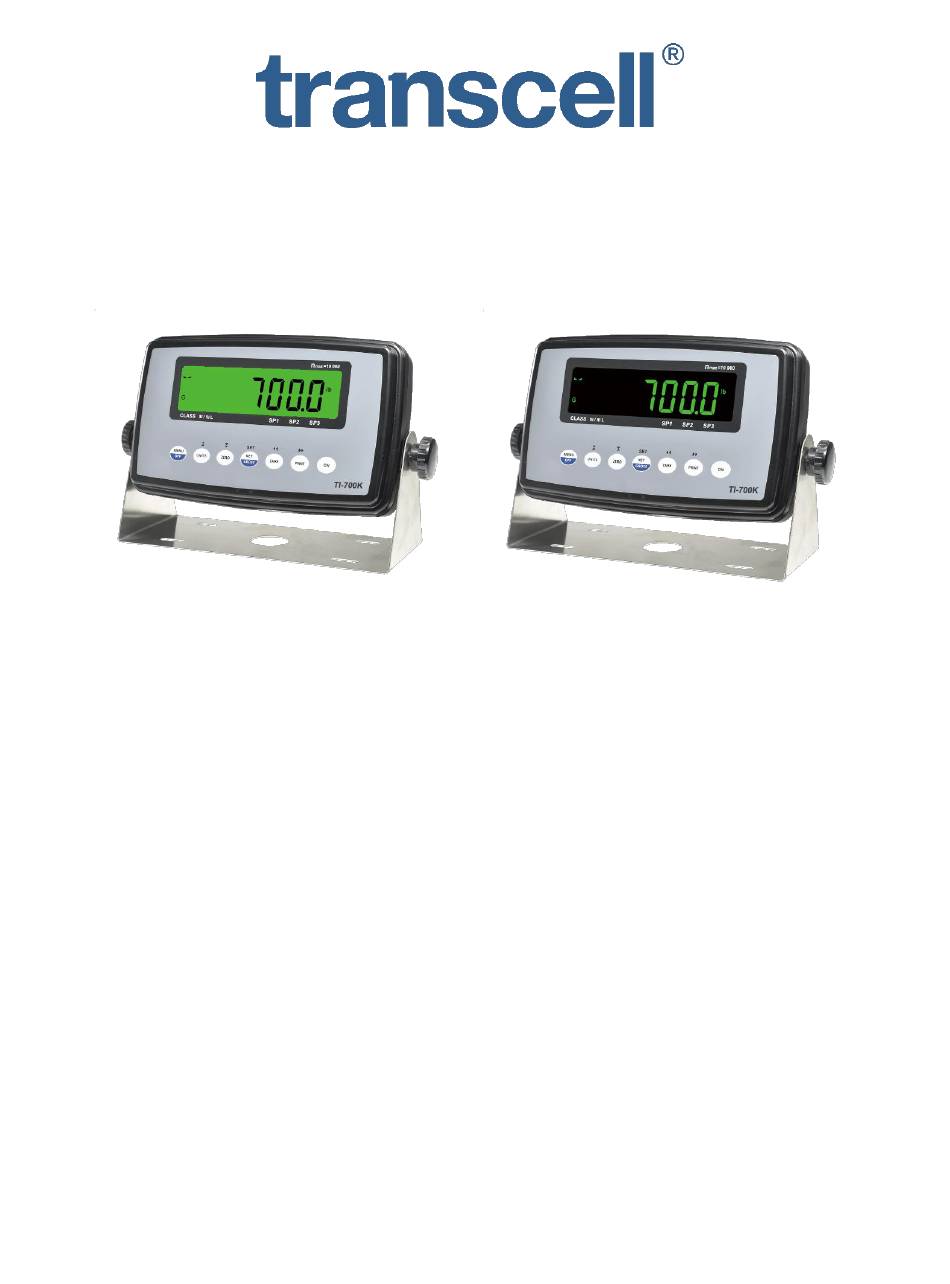

- Page 1 MODEL TI-700K User Manual Digital Weight Indicator Revision 1.7a March 09, 2020 (with wireless weighing capability)
-
Page 2: Table Of Contents
Operation – TI-700K ......................4 Operation – TI-500 RFTM ....................4 Replacing the batteries – TI-500 RFTM ................5 Optional Rechargeable battery information – TI-700K ............5 DISPLAY & KEYPAD DETAILS ..................... 7 ADVANCED OPERATION...................... 9 Hold operation: ........................9 NET Weighing ........................ - Page 3 ©Transcell Technology, Inc. 2016-2020. All rights reserved. The information contained herein is the property of Transcell Technology and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorized by contract or other written permission. The copy- right and the foregoing restriction on reproduction and use extend to all media in which the information may be embod- ied.
-
Page 4: Overview
OVERVIEW Scope of TI-700K Out of the box, the TI-700K indicator operates as a basic, cabled digital weight indicator. The load cell(s) and/or j-box is connected to the indicator’s internal A/D convertor. This configuration is depicted in the following diagram: When sold with an external TI-500 RFTM (Radio Frequency Transceiver Module) and an op- tional wireless radio, your TI-700K indicator is transformed from “wired”... -
Page 5: Basic Operation
After a brief initialization period, the scale will revert to a zero (“0”) weight display. Your wireless scale is now ready for operation! Operation – TI-700K Before weighing it is necessary to check if the scale is unloaded and indicating zero weight in the desired unit of measure, for example lb for pounds. -
Page 6: Replacing The Batteries - Ti-500 Rftm
6. Re-install the metal battery cylinder Optional Rechargeable battery information – TI-700K The TI-700K may contain a rechargeable battery pack which is internal to the unit. The battery chemistry is lithium-ion. Before using the indicator for the first time, please charge the battery. - Page 7 To prolong battery life, disconnect the external battery charger from the unit when charg- ing is complete (Green LED). Caution: the external battery charger is rated for IP54 only and exposure to water may void the warranty. Be sure to remove the battery charger from the indicator and apply the cap to the battery charger connector before washing it down.
-
Page 8: Display & Keypad Details
DISPLAY & KEYPAD DETAILS This model utilizes a 7-digit LCD (Liquid Crystal Display) with adjustable LED backlight. The Table below summarizes the display annunciators: Symbol Display ➔0 Indicates that the scale is on Zero. Indicates that the indicator is displaying net weight (Gross weight minus Tare weigh). Indicates that the indicator is displaying gross weight Indicates that a push-button tare weight has been established in the system Indicates that the indicator is in PEAK HOLD mode... - Page 9 The capacitive touch keypad is composed of a total of seven (7) function keys. Keypad Functions Menu/Off This key provides access to the various configuration menus (please see the in- staller guide for more information) Press and hold for 2-3 seconds to shut the unit OFF. Units When unit conversion is enabled, this key toggles the displayed weight indication among pounds (lb), kilograms (kg), grams (g) and ounces (oz).
-
Page 10: Advanced Operation
ADVANCED OPERATION Hold operation: This mode of operation is enabled by setting F30 to “5” in the Setup Menu (see separate in- staller’s guide for more information). This mode captures the weight of an unstable load, e.g. livestock, by freezing the weight on the display. Use the Motion Band setting (F5) and the Per- centage Hold setting (F36) to adjust this mode to your specific application. -
Page 11: Piece Counting
User Menu (see separate installer’s guide for more information). This mode is used to indicate and hold the peak weight recorded during a specific process. The most common application is testing the breaking point of a part or assembly. The TI-700K records both positive and negative peak weights. -
Page 12: Accumulation (Totaling)
3. To toggle between positive and negative peak weights, use the NET/GROSS key. 4. To reset both peak values to zero, press the ZERO key. 5. To exit peak hold mode, press the UNITS key again; the “P” annunciator turns OFF. Accumulation (Totaling) This mode of operation is enabled by setting F30 to “1”... -
Page 13: Adjusting The Time And Date On The Printout
Adjusting the Time and Date on the Printout This indicator will keep track of the current time and date, which can then be printed on the print ticket. To adjust the time and date, you must first enter the User Menu Mode. 1. -
Page 14: Checkweigher
17. Use the four directional keys to adjust the displayed value to the actual year value. Increase the flashing digit by pressing the UNITS key. Decrease the flashing digit by pressing the ZERO key. Pressing the TARE key or the PRINT key will change the position of the flashing digit. - Page 15 TI-700K checkweigher operation: If the displayed weight (net or gross) is less than the Low (Min) value, then: • Digital Output #1 is activated • SP1 light is ON • Backlight colors is BLUE If the displayed weight (net or gross) is more than the High (Max) value, then: •...
-
Page 16: Error Messages
Both TI-500 RFTM #1 and #2 batteries have been depleted and need to be replaced. WIRELESS SYSTEMS ONLY Battery in TI-700K indicator need to be recharged or replaced. Battery in digital indicator need to be recharged or replaced and TI-500 RFTM #1 batteries need to be replaced. -
Page 17: Specifications
- Up to 1000m unobstructed - (ISM) band at 2.4 to 2.485 GHz Optional Digital Indicator Battery – TI-700K - 7.4-volt 2.6 Ah internal Li-Ion rechargeable battery - 85+ continuous hours of operation on full charge under typical operating conditions OPTIONAL TI-500 RFTM Battery Holder - Holds 1.5-volt x 4 “C”... -
Page 18: Troubleshooting
Transcell Tech Support: (847) 419-9180 Limited 12-month Warranty This product is warranted by Transcell Technology against manufacturing defects in material and workmanship under normal use for twelve (12) months from the date of purchase. For complete warranty details and service information, please contact us at the address below.
